Throttle Body Removal And Installation: Removal

Do not insert your fingers into the installed throttle body when you turn the vehicle to the ON mode, or while the vehicle is in ON mode. If you do, you will seriously injure your fingers if the throttle valve is activated.

NOTE:  If you are replacing the throttle body, start at 1st procedure (HDS - Connect). If you are removing the throttle body, start at 3rd procedure (Throttle Body - Remove).

1. HDS - Connect

   Courtesy of HONDA, U.S.A., INC.

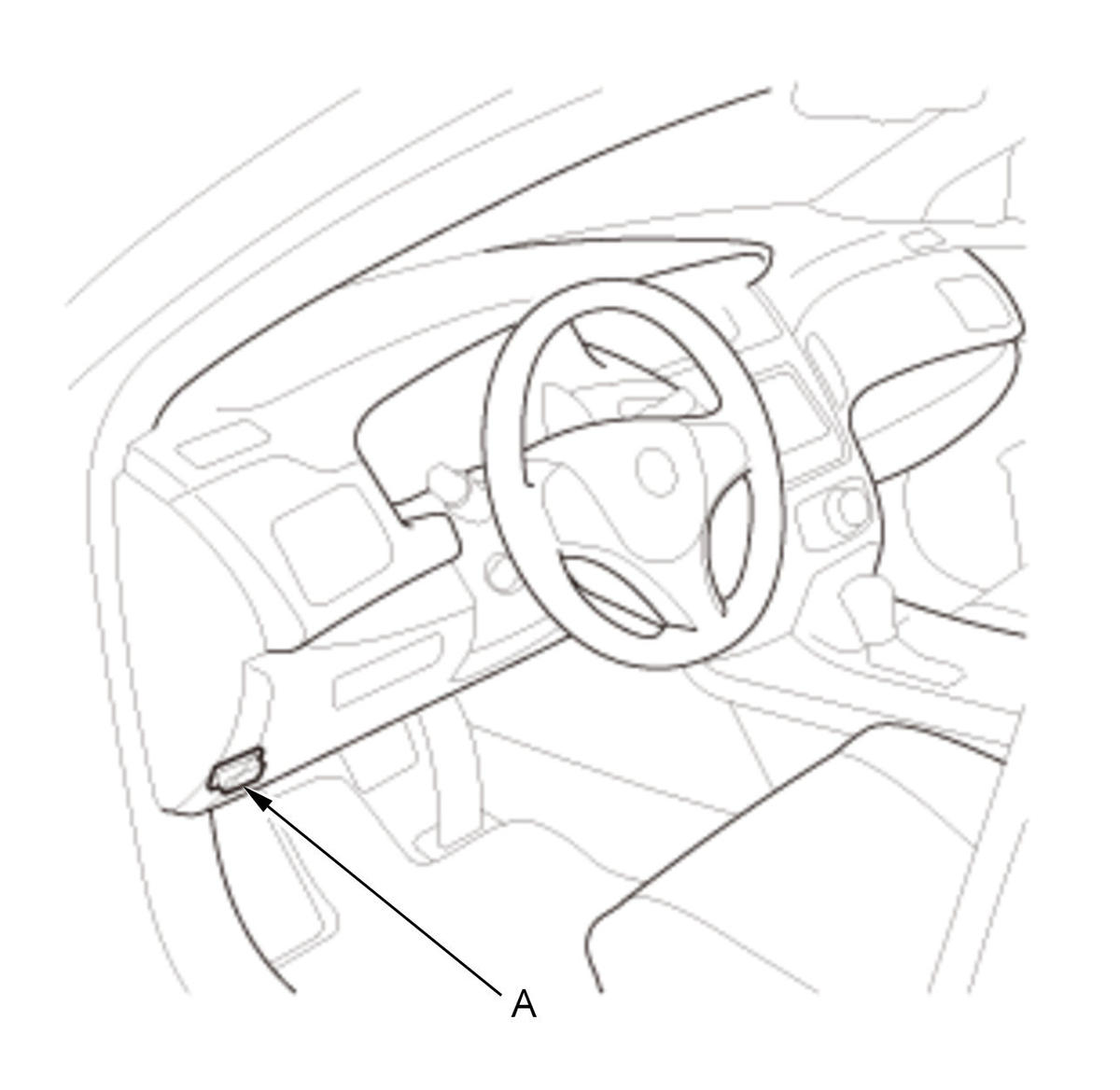

   1. Turn the vehicle to the ON mode, but do not start the engine. 2. Connect the HDS to the DLC (A) located under the driver's side of the dashboard. 3. Make sure the HDS communicates with the PCM and other vehicle systems. If it doesn't, go to the DLC circuit troubleshooting .

2. TP POSITION CHECK - Select

   1. Select the INSPECTION MENU on the HDS. 2. Select TP POSITION CHECK and clear the throttle position (TP) learned value. 3. Turn the vehicle to the OFF (LOCK) mode.

3. Throttle Body - Remove

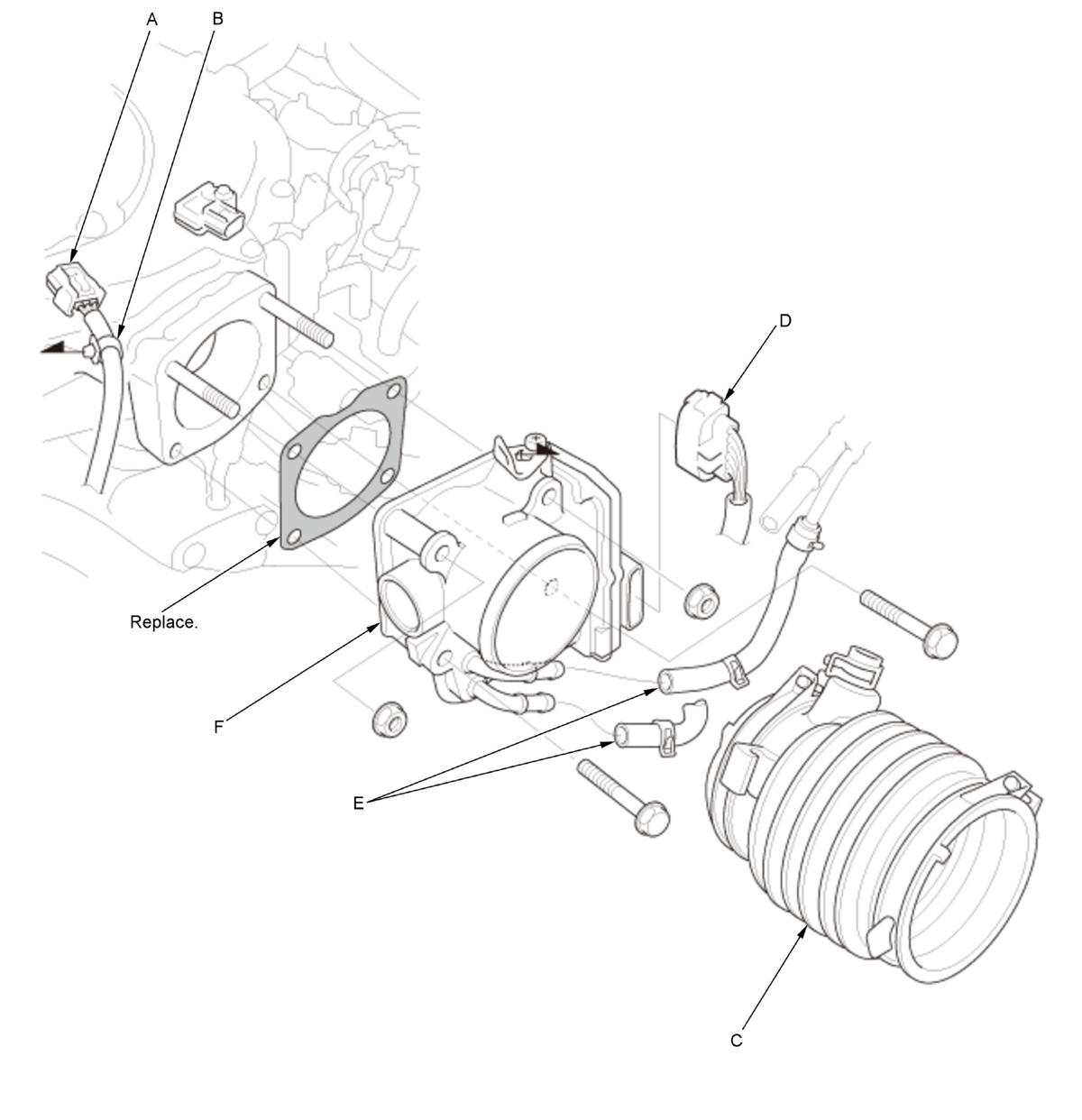

   1. Disconnect the MAP sensor connector (A).

   Courtesy of HONDA, U.S.A., INC.

   2. Remove the harness clip (B).

   3. Remove the intake air duct (C).

   4. Disconnect the throttle body connector (D).

   5. Disconnect and plug the water bypass hoses (E).

   6. Remove the throttle body (F).
