Exploded View

NOTE:

For these operations, refer to the complete procedure as needed.

Rack end removal and installation
Rack guide adjustment
Tie-rod end ball joint boot replacement
L4 engine: EPS motor removal and installation
If the rack guide is removed, rack guide adjustment is necessary .

Steering Gearbox
Exploded view

L4 engine

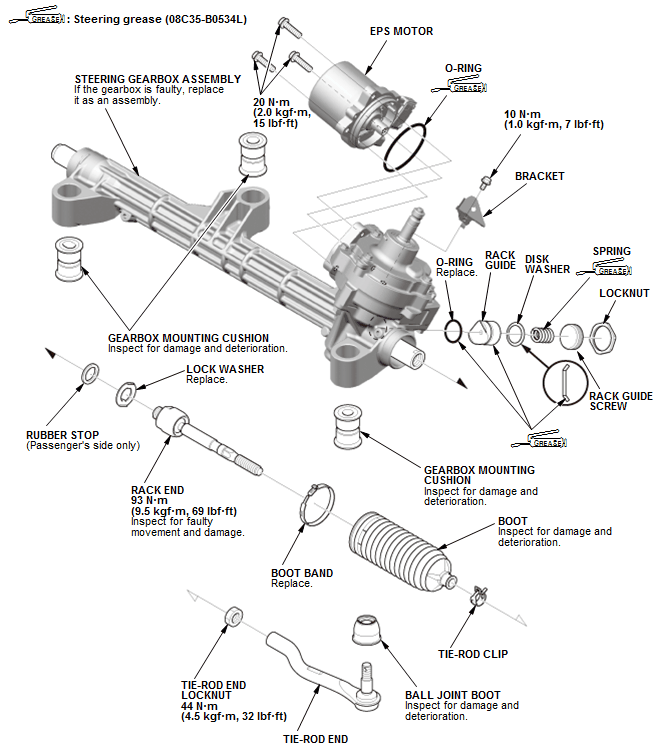

Fig 1: Steering Gearbox Exploded View With Torque Specifications (L4)
Courtesy of HONDA, U.S.A., INC.

V6 engine

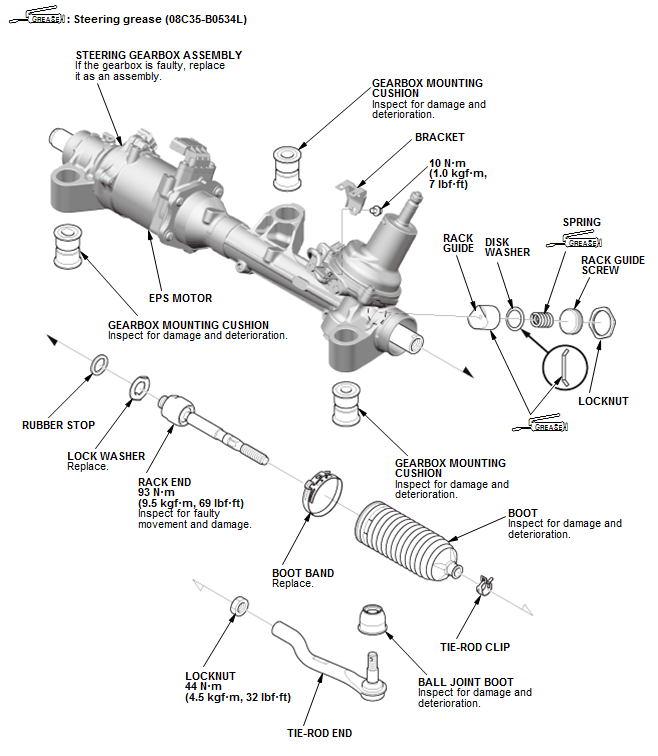

Fig 2: Steering Gearbox Exploded View With Torque Specifications (V6)
Courtesy of HONDA, U.S.A., INC.
