DTC P0087

DTC P0087  : Fuel Rail Pressure Too Low

NOTE:

• Before you troubleshoot, review the general troubleshooting information - Refer to: How to Troubleshoot the A/T System (2014 2015),  or How to Troubleshoot the Brake Booster Pressure Monitoring System (2016 2017 2018 2019 2020), or How to Troubleshoot the Fuel and Emissions Systems(With Auto Idle Stop System) (2016),  or How to Troubleshoot the Fuel and Emissions Systems .
• If the vehicle was out of fuel and the engine stalled before this DTC was stored, refuel, then clear the DTC with the HDS.
• If the fuel leak occurs, this DTC will be stored. Check the fuel leak before troubleshooting.
• If any of the DTCs listed below are stored at the same time as P0087, troubleshoot those DTCs first, then recheck for P0087.

  P0192, P0193: Fuel rail pressure sensor

  P0201, P0202, P0203, P0204, P0205, P0206: No. 1-No. 6 cylinder injector(s)

  P0300, P0301, P0302, P0303, P0304, P0305, P0306: No. 1-No. 6 cylinder misfire

  P0351, P0352, P0353, P0354, P0355, P0356: No. 1-No. 6 cylinder ignition coil(s)

  P0627: Fuel pump control (FPC) system malfunction

  P064A: High pressure fuel pump system malfunction

DTC (PGM-FI)

1. Problem verification (idling)

   -1. Record all freeze data and the on-board snapshots with the HDS.

   - 2. Turn the vehicle to the ON mode.

   - 3. Clear the DTC with the HDS.

   - 4. Start the engine. Hold the engine speed at 3, 000 rpm without load (in P or N) until the radiator fan comes on, then let it idle.

   - 5. Select the DI FUEL PRESSURE TEST in the INSPECTION MENU with the HDS.

   DI FUEL PRESSURE TEST

   Is the result OK?

   YES

   Go to step 2.

   NO

   Go to step 3.

2. Problem verification (test-drive)

   -1. Test-drive the vehicle for several minutes in the range of these recorded freeze data parameters:

   • ENGINE SPEED
   • VEHICLE SPEED
   • MAP SENSOR
   • TP SENSOR
   • APP sensor
   • ECT SENSOR 1
   • IAT SENSOR

   Data List

   Signal	Current conditions
   	Values	Unit
   ENGINE SPEED
   VEHICLE SPEED
   MAP SENSOR
   TP SENSOR
   APP SENSOR
   ECT SENSOR 1
   IAT SENSOR (2)

   - 2. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0087 Fuel Rail Pressure Too Low

   DTC (PGM-FI)

   Is DTC P0087 indicated?

   YES

   Failure is duplicated, go to step 3.

   NO

   Intermittent failure, the system is OK at this time. Test PGM-FI main relay 2 - Refer to: Power Relay Test (2016), or Power Relay Test (2014 2015) . If the relay is OK, check for a poor connection or loose terminals at the fuel rail pressure sensor, the high pressure fuel pump, and the PCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

3. Spill valve operation check

   -1. Start the engine, then let it idle.

   - 2. Check for some noise or vibration from the spill valve on the high pressure fuel pump.

   If the high pressure fuel pump runs, you will hear some noise from the spill valve.

   Is there any noise or vibration?

   YES

   Go to step 4.

   NO

   Replace the high pressure fuel pump .

4. Fuel rail pressure sensor check 1

   -1. Turn the vehicle to the OFF (LOCK) mode.

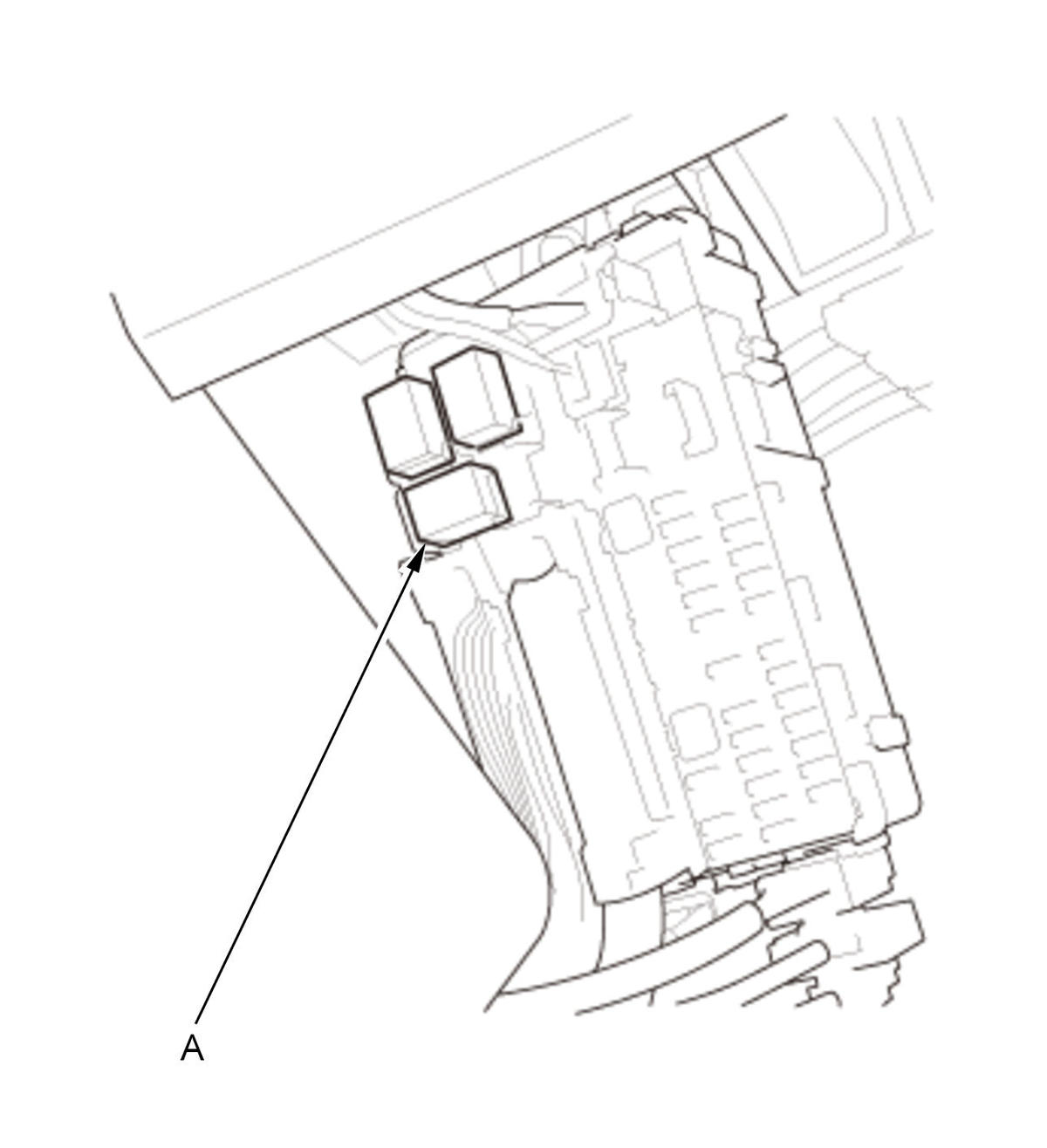

   - 2. Remove PGM-FI main relay 2 (A) from the driver's under-dash fuse/relay box.

   Courtesy of HONDA, U.S.A., INC.

   - 3. Start the engine, and let it idle until it stalls.

   - 4. After the engine stalls, crank the engine for several times.

   - 5. Check the parameter(s) below with the HDS.

   Signal	Current conditions
   	Values	Unit
   FUEL PRESSURE CONVERTED FROM PF SENSOR

   NOTE:  It is normal if the value of several hundred kPa is indicated.

   Does the value change to less than 1000kpa?

   YES

   Go to step 5.

   NO

   Replace the fuel rail (fuel rail pressure sensor) .

5. Fuel rail pressure sensor check 2

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Install PGM-FI main relay 2.

   - 3. Start the engine. Hold the engine speed at 3, 000 rpm without load (in P or N) until the radiator fan comes on, then let it idle.

   - 4. Shift to D while pressing brake pedal firmly, then press the accelerator pedal.

   NOTE:  Do not move the shift lever or remove your foot off the brake pedal, while raising the engine speed.

   - 5. Check the parameter(s) below with the HDS.

   Signal	Current conditions
   	Values	Unit
   FUEL PRESSURE CONVERTED FROM PF SENSOR
   FUEL PRESSURE DIRECT INJECTION SYSTEM

   Are both values almost the same?

   YES

   The fuel rail pressure sensor is OK. Go to step 6.

   NO

   Replace the fuel rail (fuel rail pressure sensor) .

6. Fuel pressure check (low pressure side)

   -1. Check the fuel pressure.

   Is the fuel pressure OK?

   YES

   The fuel pressure (low pressure side) is OK. Go to step 7.

   NO

   Check the fuel pump, the fuel pressure regulator, the fuel filter, and the fuel lines .

7. High pressure fuel pump visual check

   -1. Remove the high pressure fuel pump.

   - 2. Visually check the cam that drives a high pressure fuel pump and the roller of the high pressure fuel pump for wear or damage.

   Are the parts OK?

   YES

   Replace the high pressure fuel pump .

   NO

   Check for damage of the cam and the roller .
