DTC P00FE

DTC P00FE  : EVAP Vent Line Blockage

Special Tools Required

Vacuum Pump/Gauge, 0-30 inHg Snap-on YA4000A or equivalent, commercially available

NOTE:  Before you troubleshoot, review the general troubleshooting information - Refer to: How to Troubleshoot the Brake Booster Pressure Monitoring System (2016 2017 2018 2019 2020), or How to Troubleshoot the Fuel and Emissions Systems(With Auto Idle Stop System) (2016),  or How to Troubleshoot the A/T System (2014 2015),  or How to Troubleshoot the Fuel and Emissions Systems .

DTC (PGM-FI)

1. EVAP canister check

   -1. Turn the vehicle to the OFF (LOCK) mode.

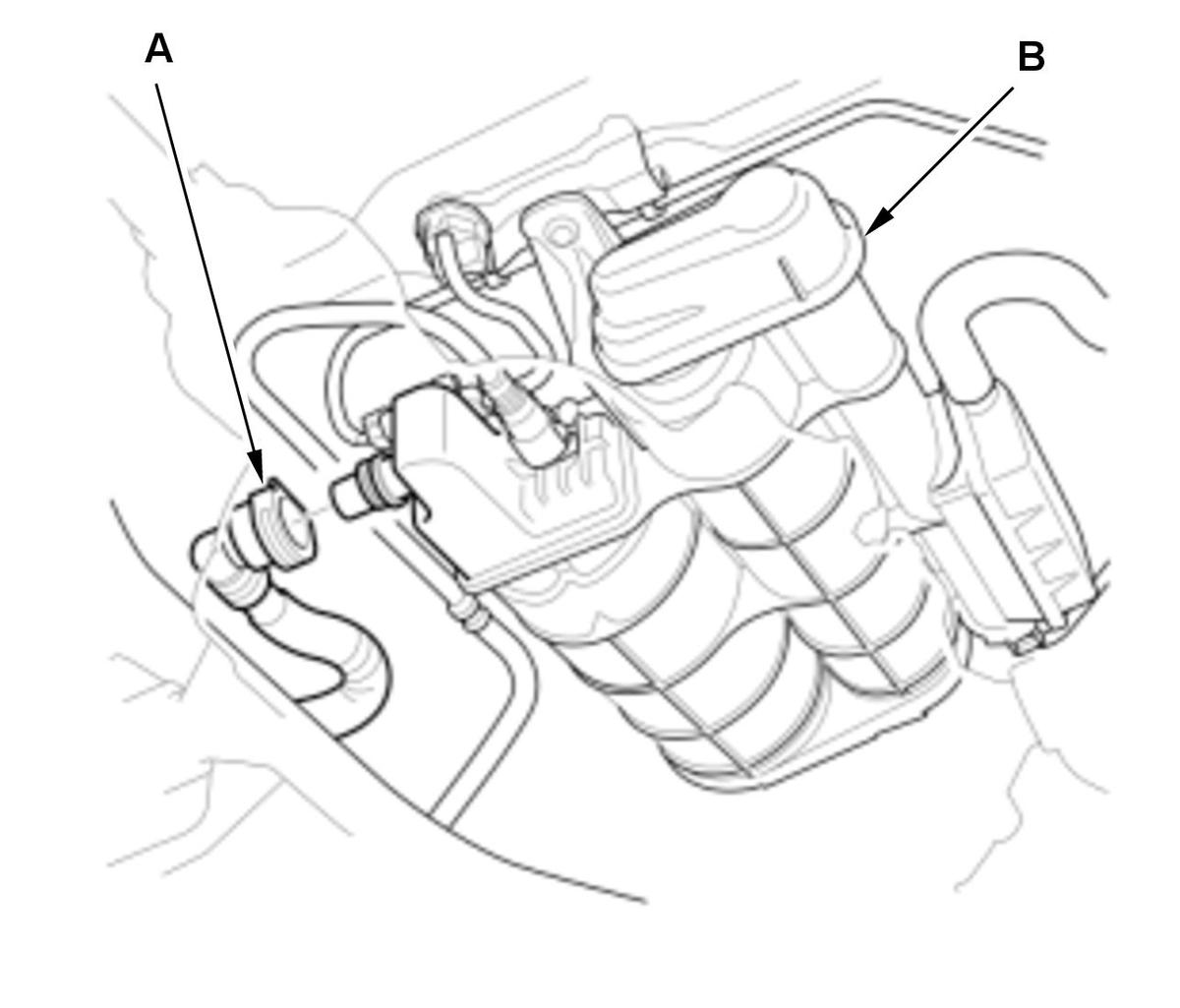

   - 2. Disconnect the fuel tank vapor recirculation tube (A) from the EVAP canister (B).

   Courtesy of HONDA, U.S.A., INC.

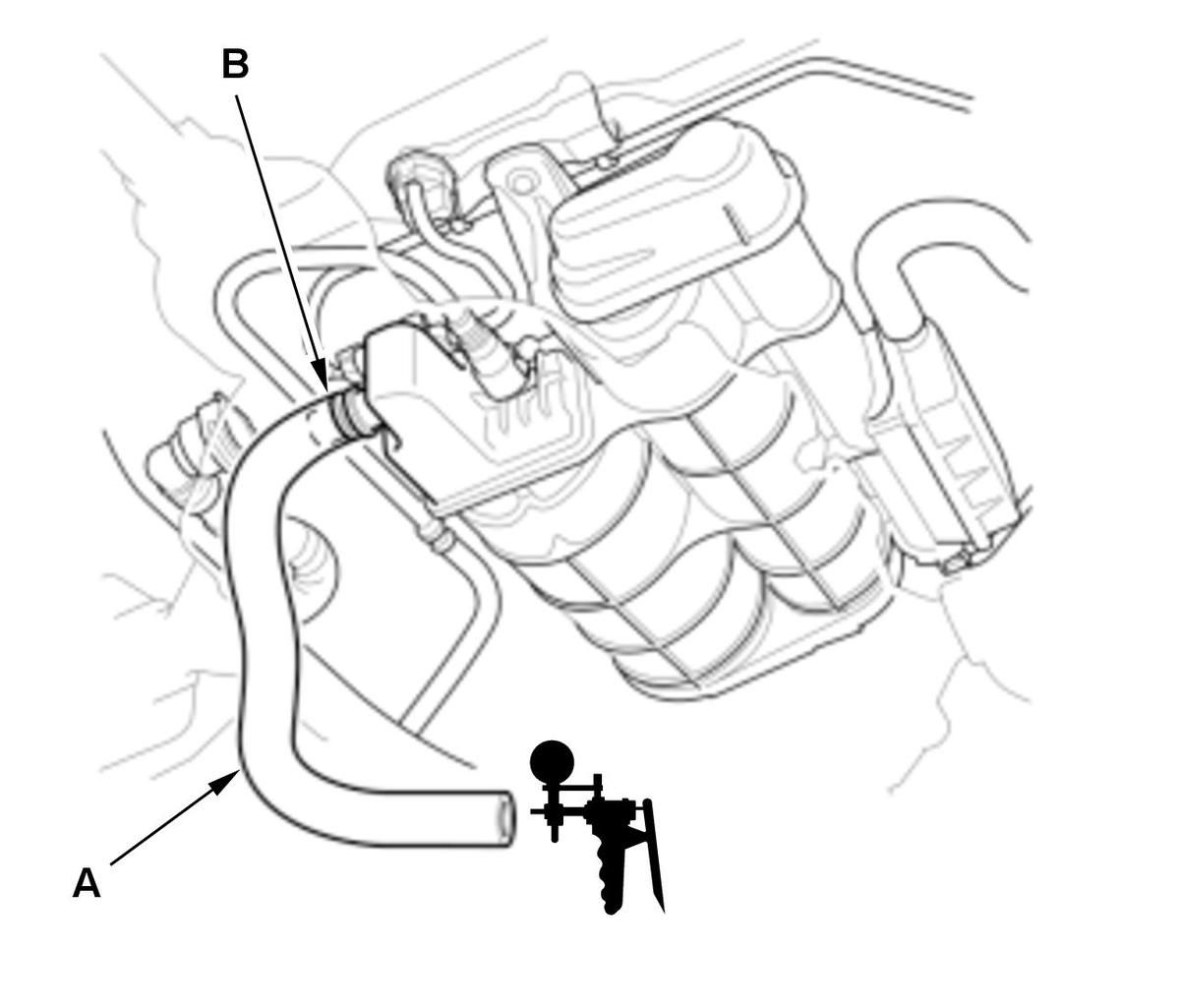

   - 3. Connect a hose (A) to the EVAP canister fuel tank vapor recirculation tube port (B), and connect the vacuum pump/gauge, 0-30 inHg, to the hose as shown.

   Courtesy of HONDA, U.S.A., INC.

   - 4. Turn the vehicle to the ON mode.

   - 5. Apply 1.3 kPa (0.4 inHg, 10 mmHg) of vacuum to the hose.

   NOTE:  Be careful not to exceed the vacuum. If you do, the FTP sensor can be damaged.

   - 6. Check the parameter(s) below with the HDS.

   Signal	Current conditions
   	Values	Unit
   FTP SENSOR

   Does the value of FTP SENSOR change?

   YES

   Replace the fuel tank .

   NO

   Replace the EVAP canister .
