DTC P0123
DTC P0123 : TP Sensor A Circuit High Voltage
NOTE: Before you troubleshoot, review the general troubleshooting information - Refer to: How to Troubleshoot the Fuel and Emissions Systems, or How to Troubleshoot the A/T System (2014 2015), or How to Troubleshoot the Brake Booster Pressure Monitoring System (2016 2017 2018 2019 2020), or How to Troubleshoot the Fuel and Emissions Systems(With Auto Idle Stop System) (2016) .
| DTC Description | Confirmed DTC | Pending DTC | Freeze Frame |
|---|---|---|---|
| P0123 TP Sensor A Circuit High Voltage |
DTC (PGM-FI)
- Problem verification
-1. Turn the vehicle to the ON mode.
- 2. Clear the DTC with the HDS.
- 3. Check the parameter(s) below with the HDS.
Signal Threshold Current conditions Values Unit Values Unit TP SENSOR A More than 4.8 V Do the current condition(s) match the threshold?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the throttle body and the PCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.
- Determine possible failure area (SG5 line, others)
-1. Check for Pending or Confirmed DTCs with the HDS.
DTC Description Confirmed DTC Pending DTC Freeze Frame P0123 TP Sensor A Circuit High Voltage P0223 TP Sensor B Circuit High Voltage Are DTC P0123 and P0223 indicated at the same time?
YES
Go to step 5.
NO
Go to step 3.
- Determine possible failure area (THL1 line, throttle body)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the following connector.
Throttle body 6P connector - 3. Turn the vehicle to the ON mode.
- 4. Measure the voltage between test points 1 and 2.

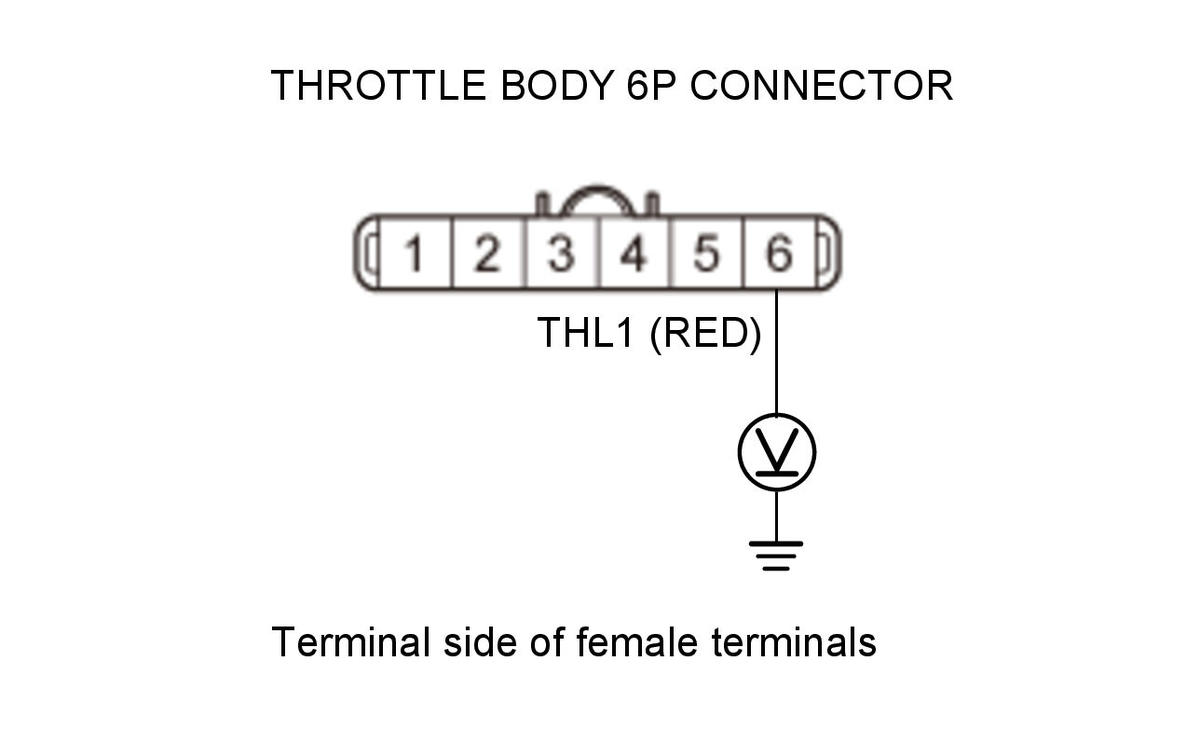

Test condition Vehicle ON mode Throttle body 6P connector: disconnected Test circuit THL1 Test point 1 Throttle body 6P connector No. 6 (RED) Test point 2 Body ground Is there about 5.0 V?
YES
NO
Go to step 4.
- Open wire check (THL1 line)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Jump the SCS line with the HDS.
- 3. Disconnect the following connector.
- 4. Check for continuity between test points 1 and 2.

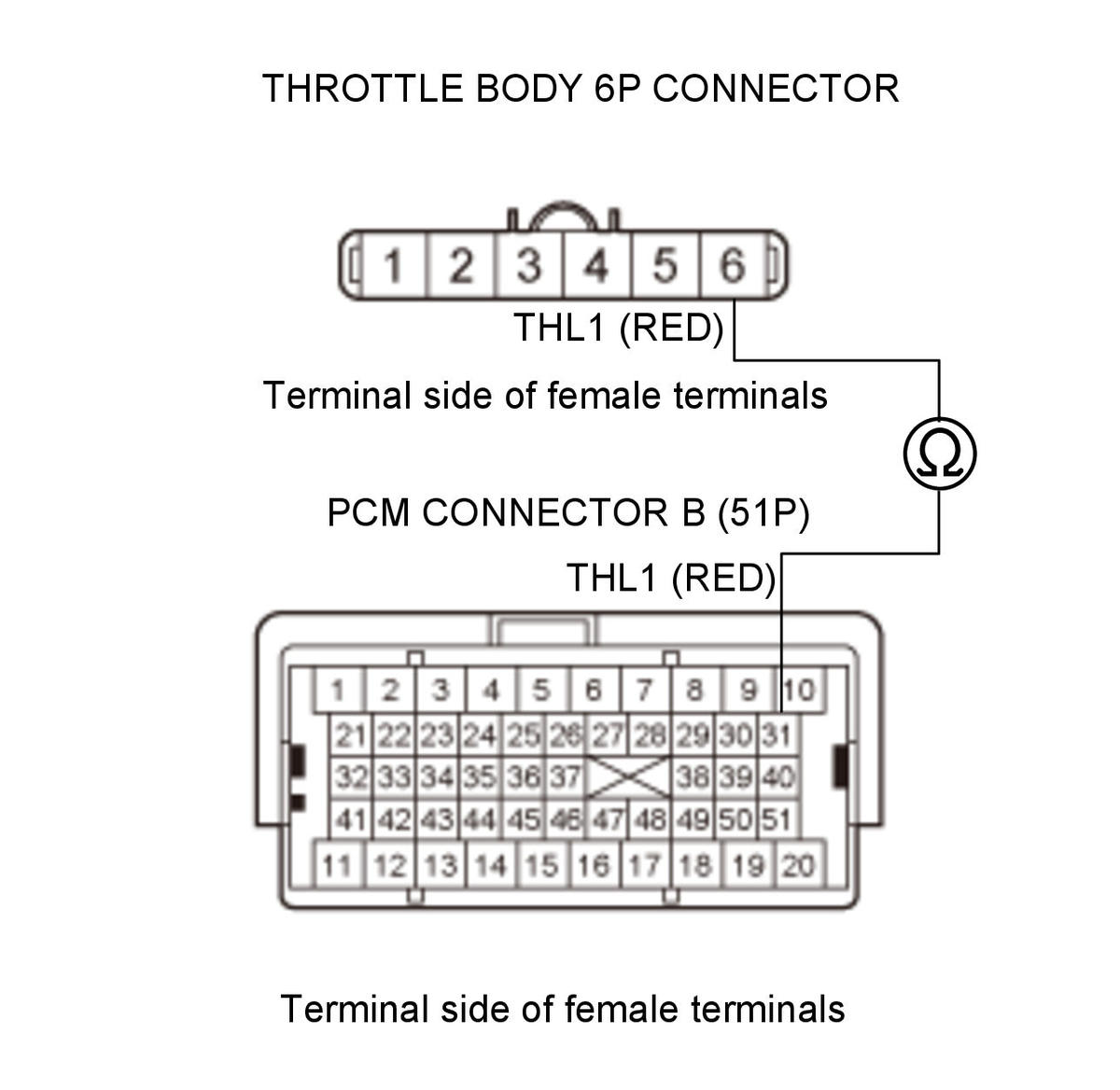

Test condition Vehicle OFF (LOCK) mode Throttle body 6P connector: disconnected PCM connector B (51P): disconnected Test circuit THL1 Test point 1 Throttle body 6P connector No. 6 (RED) Test point 2 PCM connector B (51P) No. 31 (RED) Is there continuity?
YES
The THL1 wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM - Refer to: PCM Removal and Installation (2016), or PCM Removal and Installation (2014 2015) .
NO
Repair an open in the THL1 wire between the PCM (B31) and the throttle body.
- Open wire check (SG5 line)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Jump the SCS line with the HDS.
- 3. Disconnect the following connectors.
- 4. Check for continuity between test points 1 and 2.

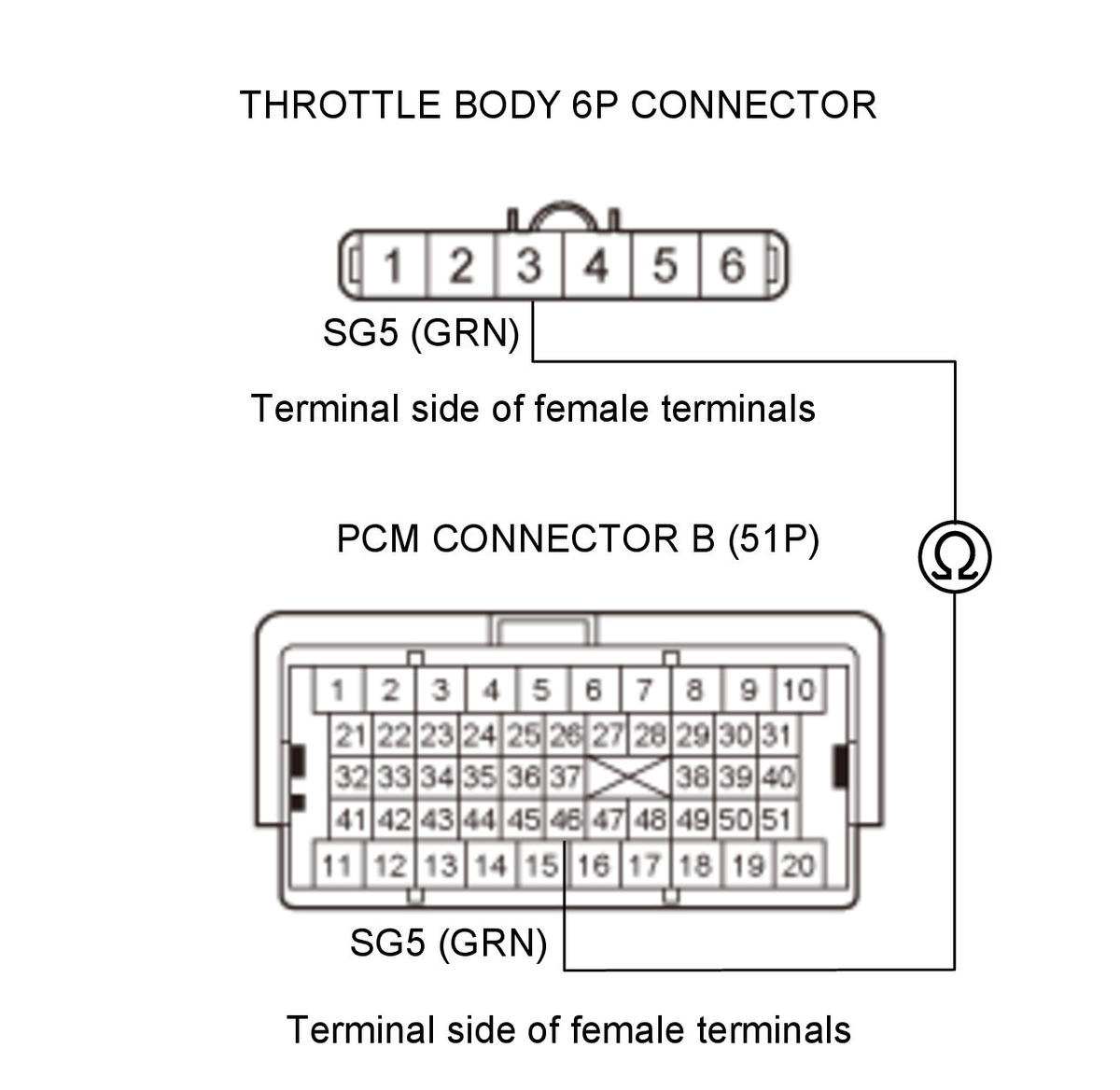

Test condition Vehicle OFF (LOCK) mode PCM connector B (51P): disconnected Throttle body 6P connector: disconnected Test circuit SG5 Test point 1 Throttle body 6P connector No. 3 (GRN) Test point 2 PCM connector B (51P) No. 46 (GRN) Is there continuity?
YES
The SG5 wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM - Refer to: PCM Removal and Installation (2014 2015), or PCM Removal and Installation (2016) .
NO
Repair an open in the SG5 wire between the PCM (B46) and the throttle body.
