Intake Manifold Removal and Installation (2016-18)
›
Exploded View
Exploded View
Intake Manifold - Exploded View

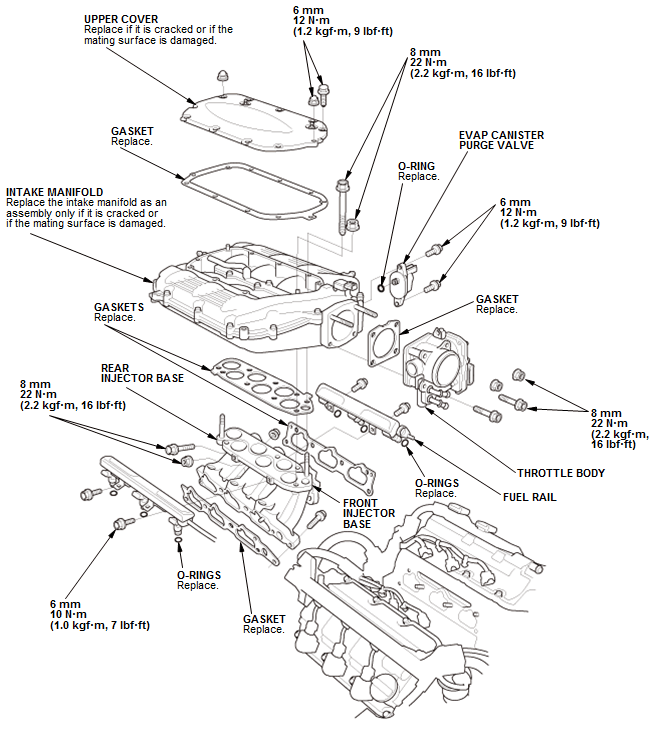

Fig 1: Intake Manifold - Exploded View With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
