Exploded View

NOTE: Do not disassemble the oil pump except for the shown parts.

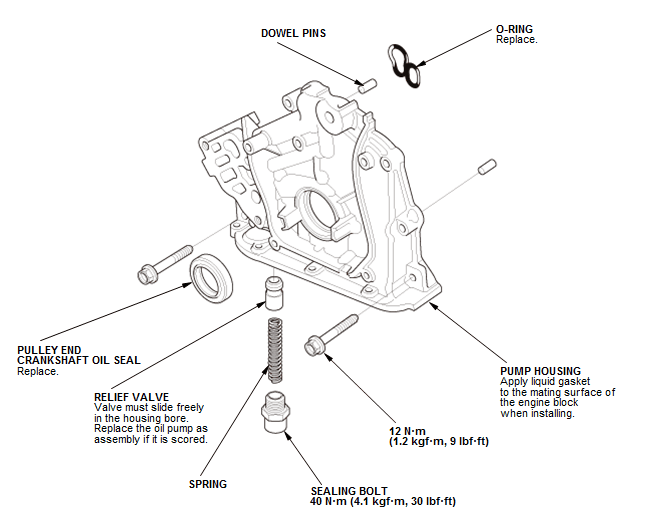

Oil Pump - Exploded View

Courtesy of HONDA, U.S.A., INC.
