Transmission Range Switch Test (2013-18): Test

Courtesy of HONDA, U.S.A., INC.

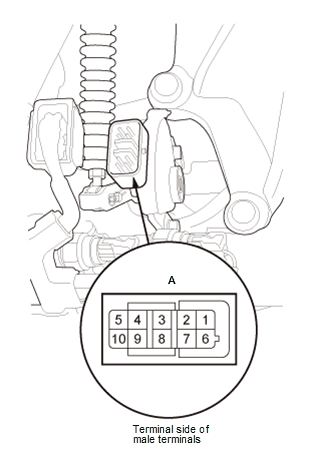

1. Disconnect the transmission range switch connector (A).

2. Check for continuity between the terminals at the transmission range switch connector. There should be continuity between the terminals in the following table for each transmission range switch position.

• If the test results are OK, the transmission range switch test is finished. Go to the next step, and install all removed parts.
• If there is no continuity between any terminals, check the transmission range switch installation. If the switch installation is OK, replace the transmission range switch .

Transmission Range Switch Connector

Courtesy of HONDA, U.S.A., INC.
