CMP Sensor Removal And Installation: Installation

CMP Sensor - Install

Courtesy of HONDA, U.S.A., INC.

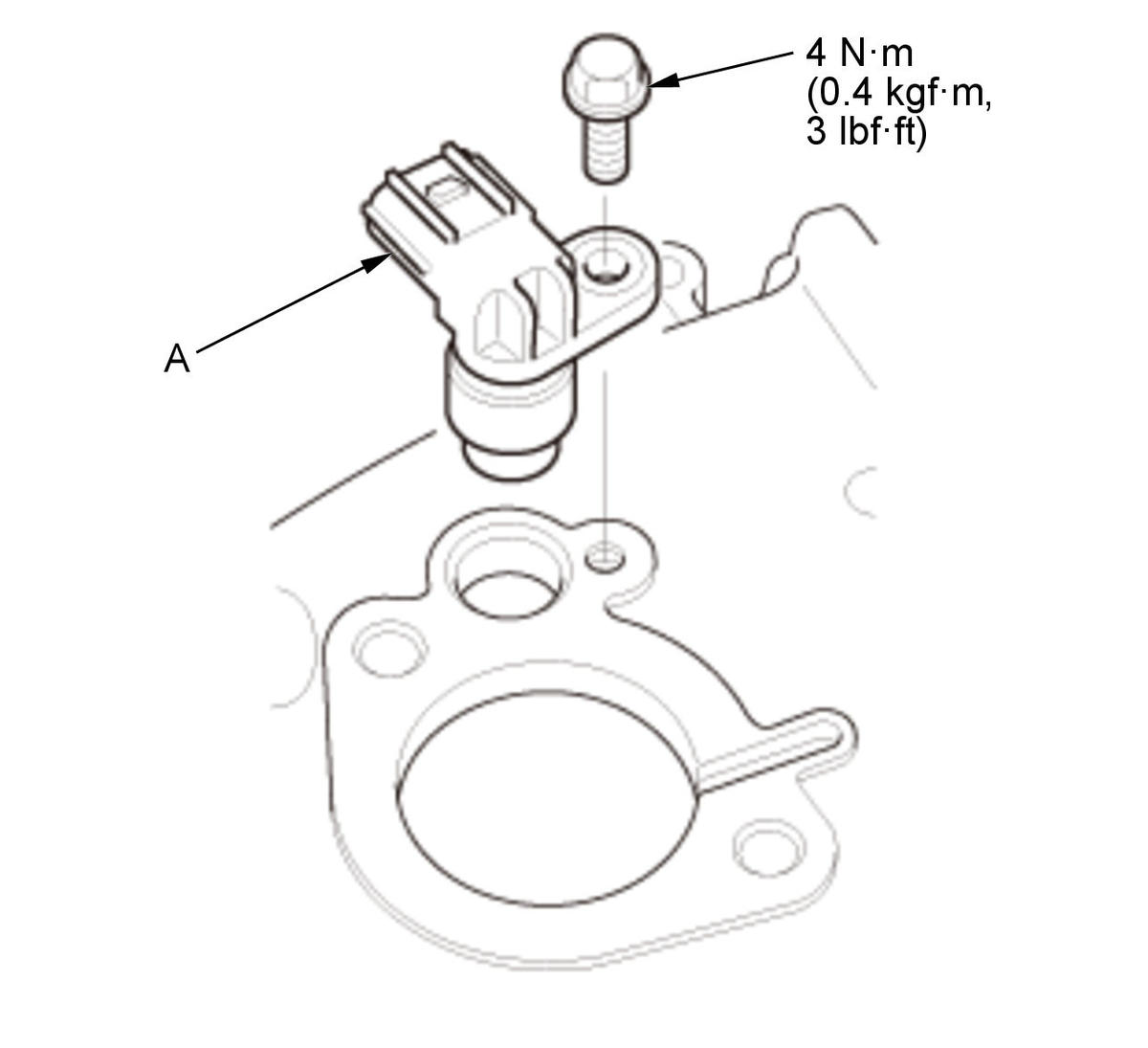

Install the CMP sensor (A) to the back cover.

Front Camshaft Pulley (CMP Sensor Pulse Plate) and Back Cover - Install

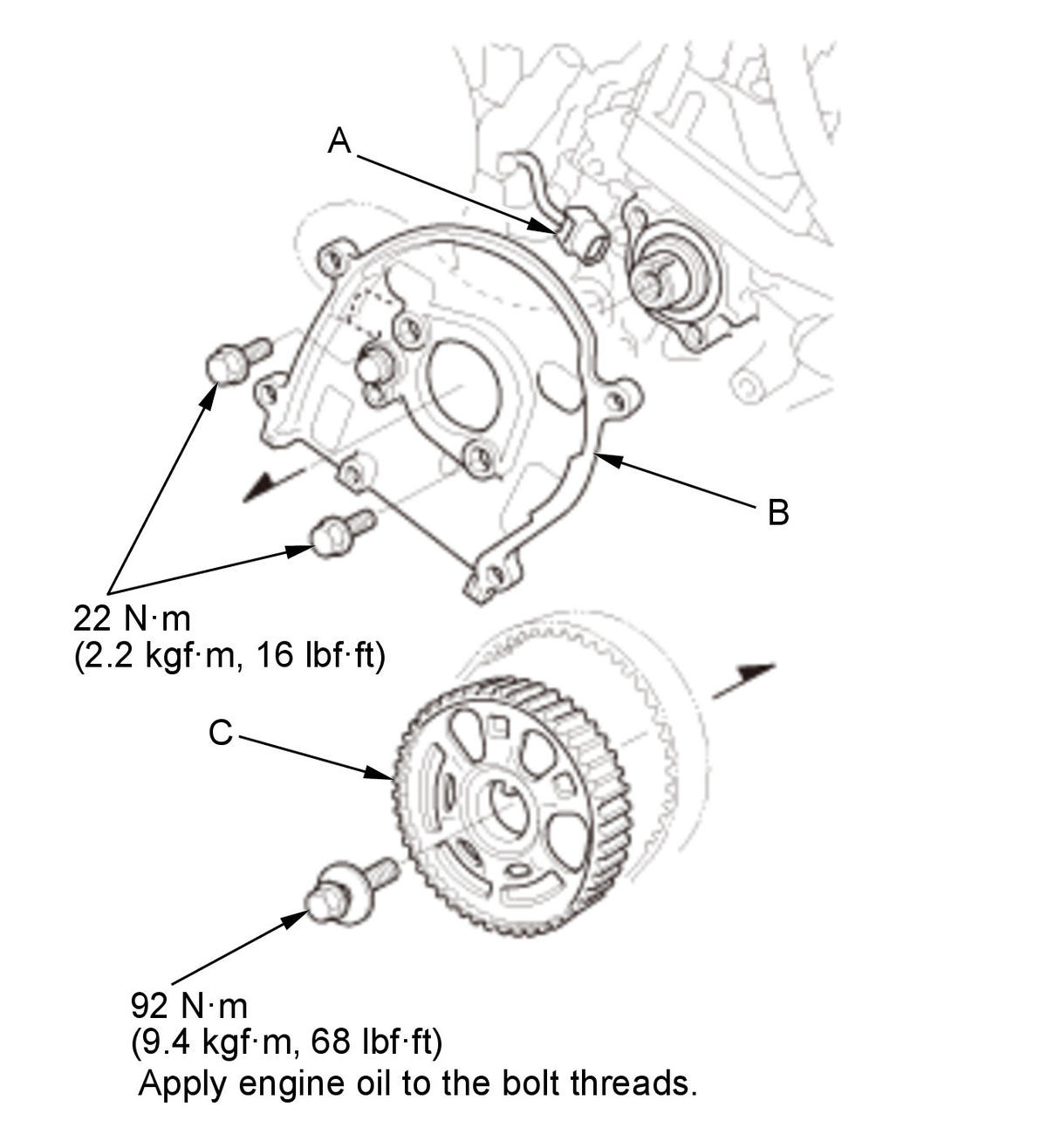

Fig 1: Front Camshaft Pulley (CMP Sensor Pulse Plate) and Back Cover With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Connect the CMP sensor connector (A), then install the back cover (B).

2. Install the front camshaft pulley (CMP sensor pulse plate) (C).

Timing Belt - Install
Install the timing belt .
CKP Pattern - Clear/Learn
Do the CKP pattern clear/CKP pattern learn procedure .
