Injector Control Module Removal And Installation: Removal

Injector Control Module Cover - Remove

Courtesy of HONDA, U.S.A., INC.

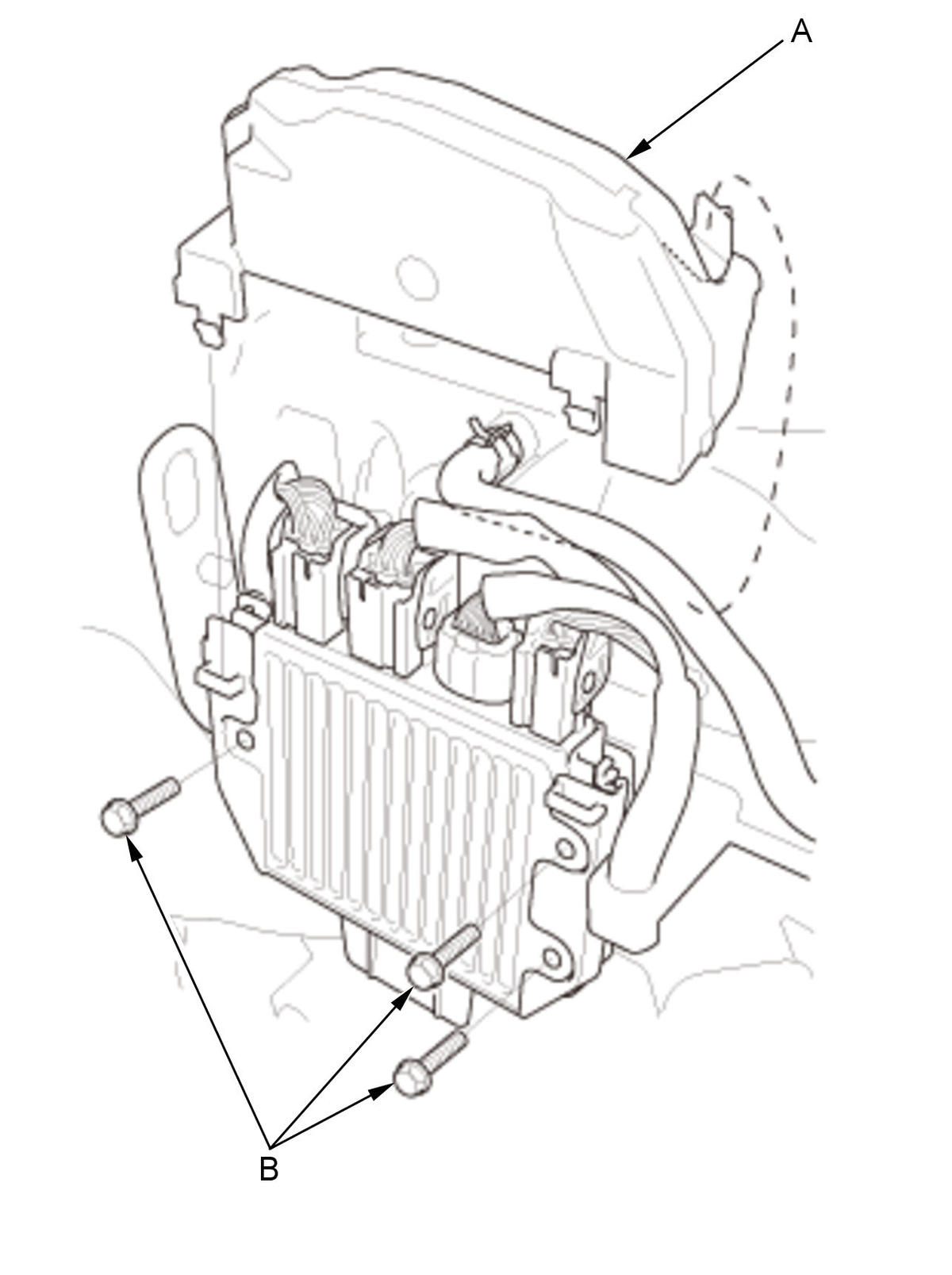

1. Remove the bolts (B).

2. Remove injector control module cover A.

Injector Control Module - Remove

Courtesy of HONDA, U.S.A., INC.

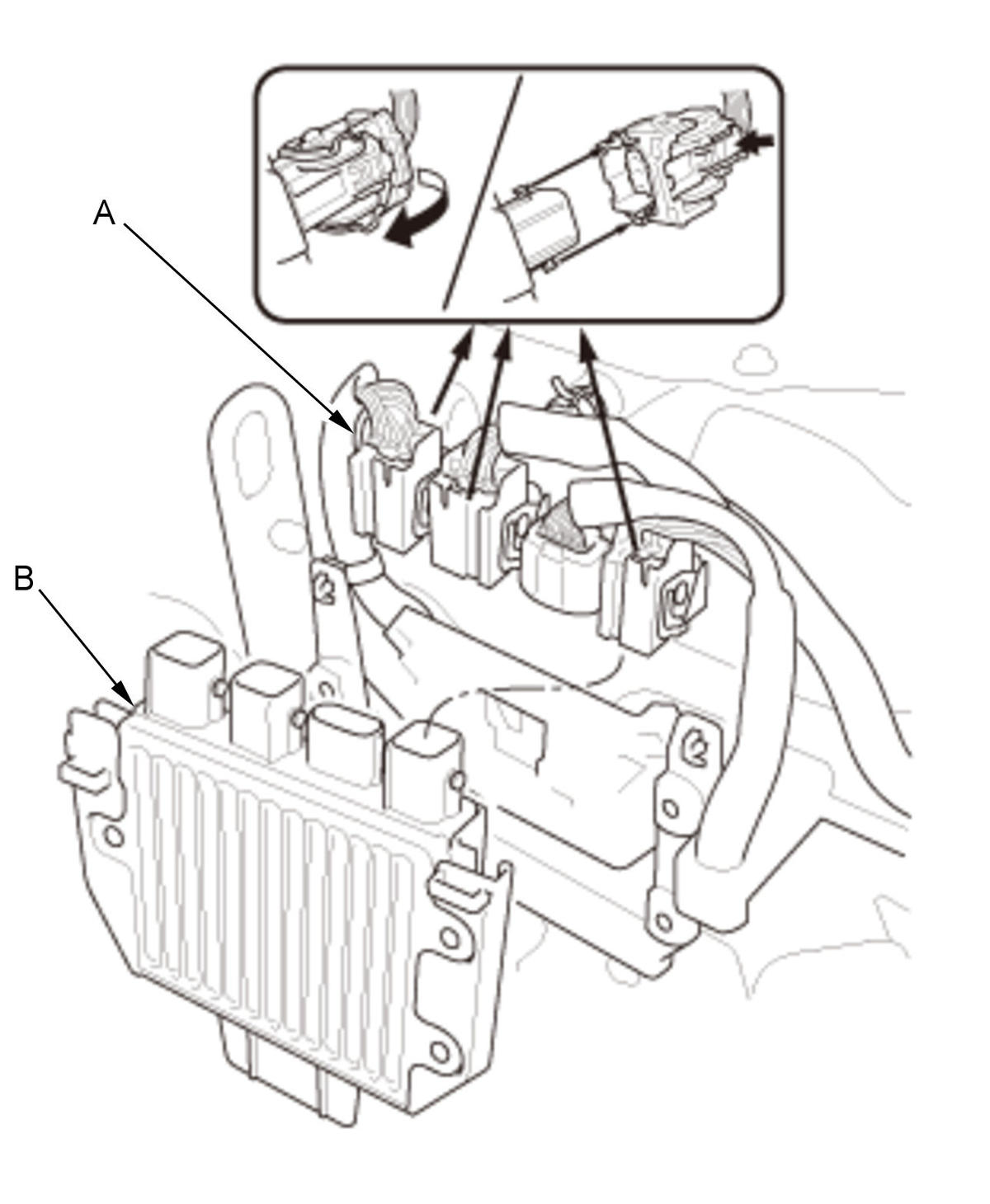

1. Disconnect the injector control module connectors (A), then remove the injector control module (B).

Courtesy of HONDA, U.S.A., INC.

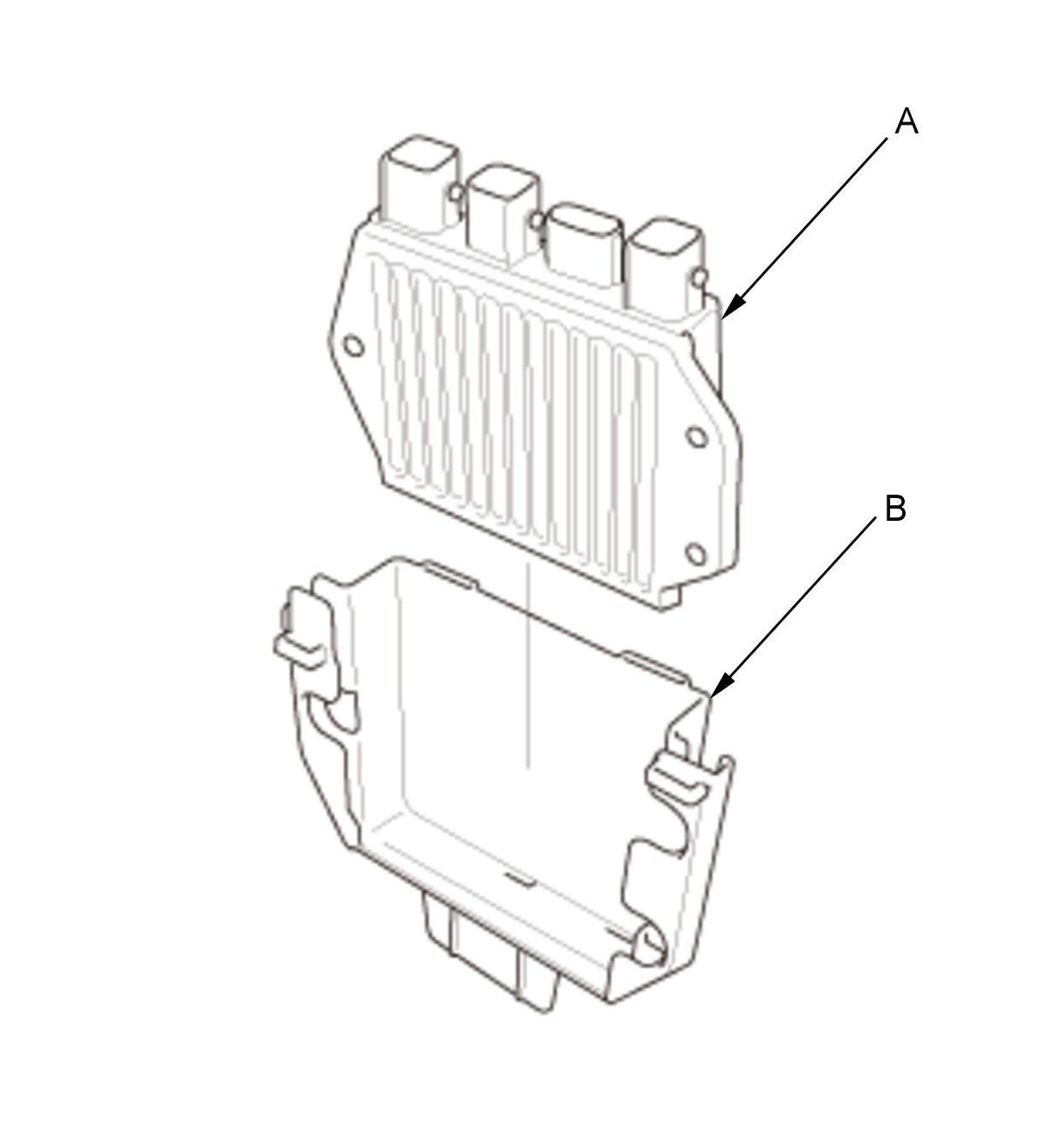

2. Remove injector control module cover B from the injector control module (A).
