ELD Removal And Installation: Removal

ELD - Remove

Courtesy of HONDA, U.S.A., INC.

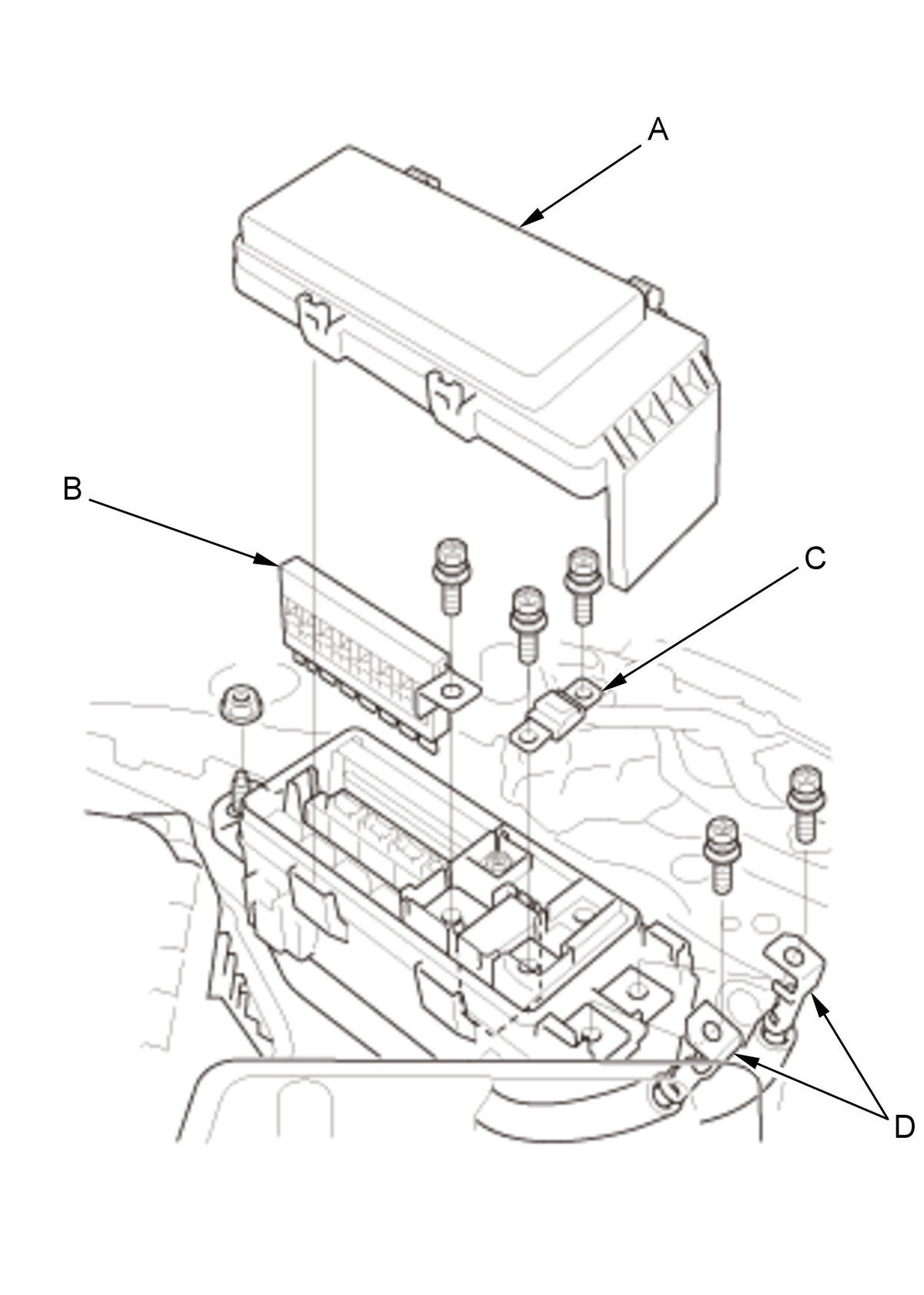

1. Remove the main under-hood fuse box upper cover (A).

2. Remove the fuses (B and C).

3. Remove the positive (+) terminals (D).

Courtesy of HONDA, U.S.A., INC.

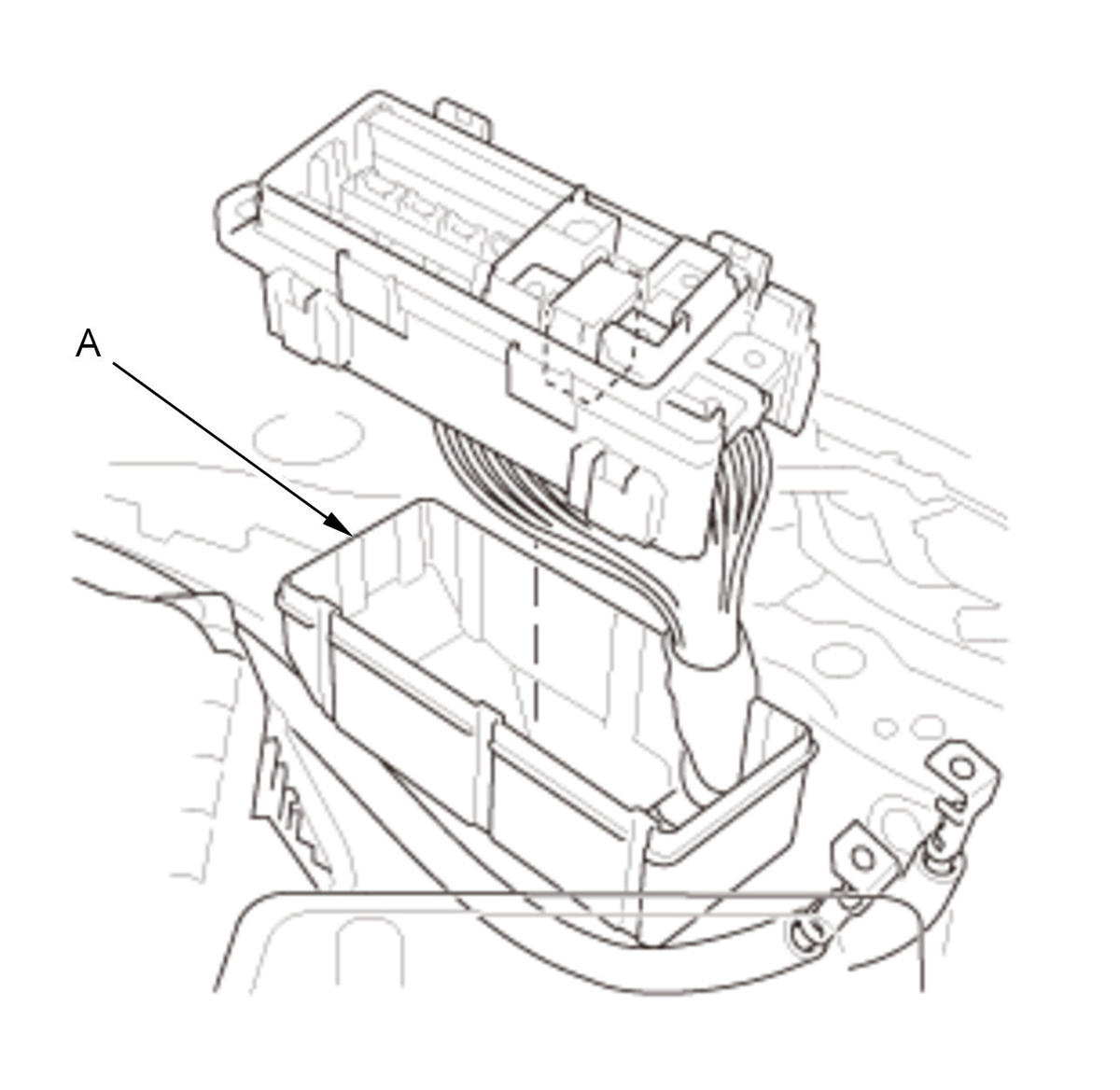

4. Remove the lower cover (A).

Courtesy of HONDA, U.S.A., INC.

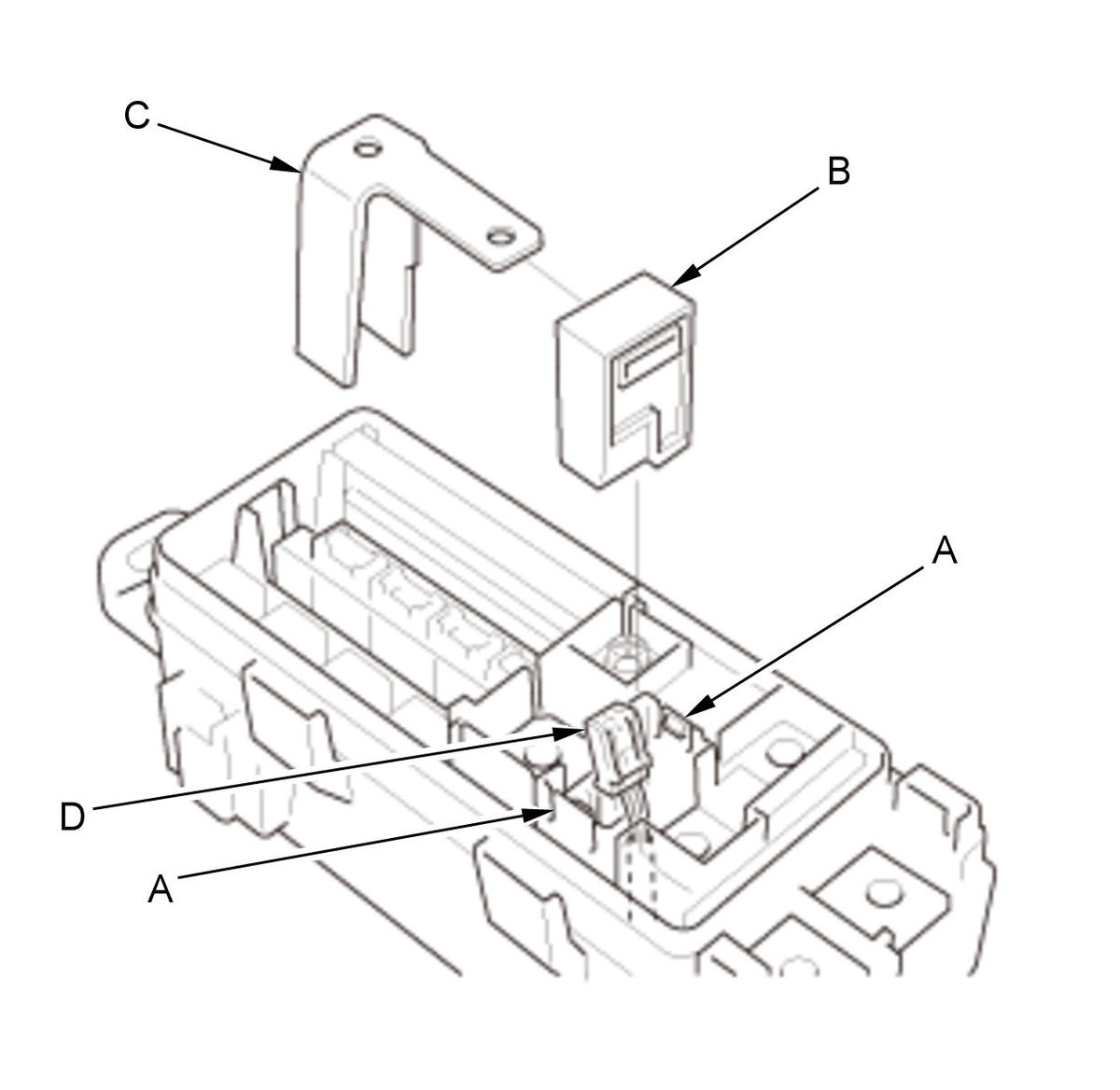

5. Release the two lock tabs (A), and carefully remove the ELD (B) with the busbar (C), then disconnect the ELD connector (D).

NOTE: Take care not to damage the wire harness.
