PCV Valve Removal And Installation: Installation

PCV Valve - Install

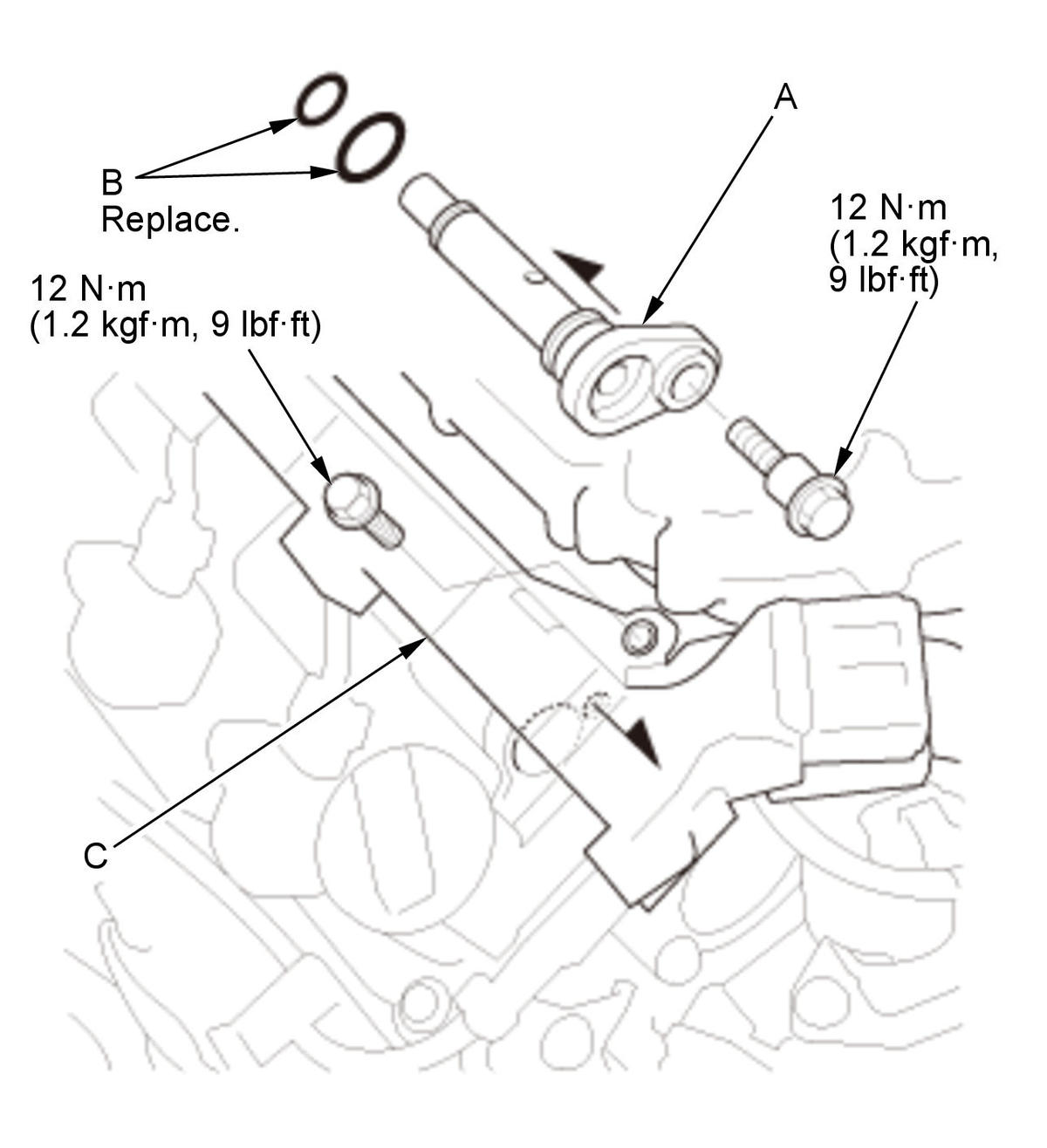

Fig 1: PCV Valve With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Install the PCV valve (A) with new O-rings (B).

NOTE: When installing a new PCV valve, make sure the O-rings are in place.

2. Install the engine harness holder (C).
