Engine Control System / Engine Mechanical - Service, Testing & Troubleshooting (Except Hybrid)
›
System Description
›

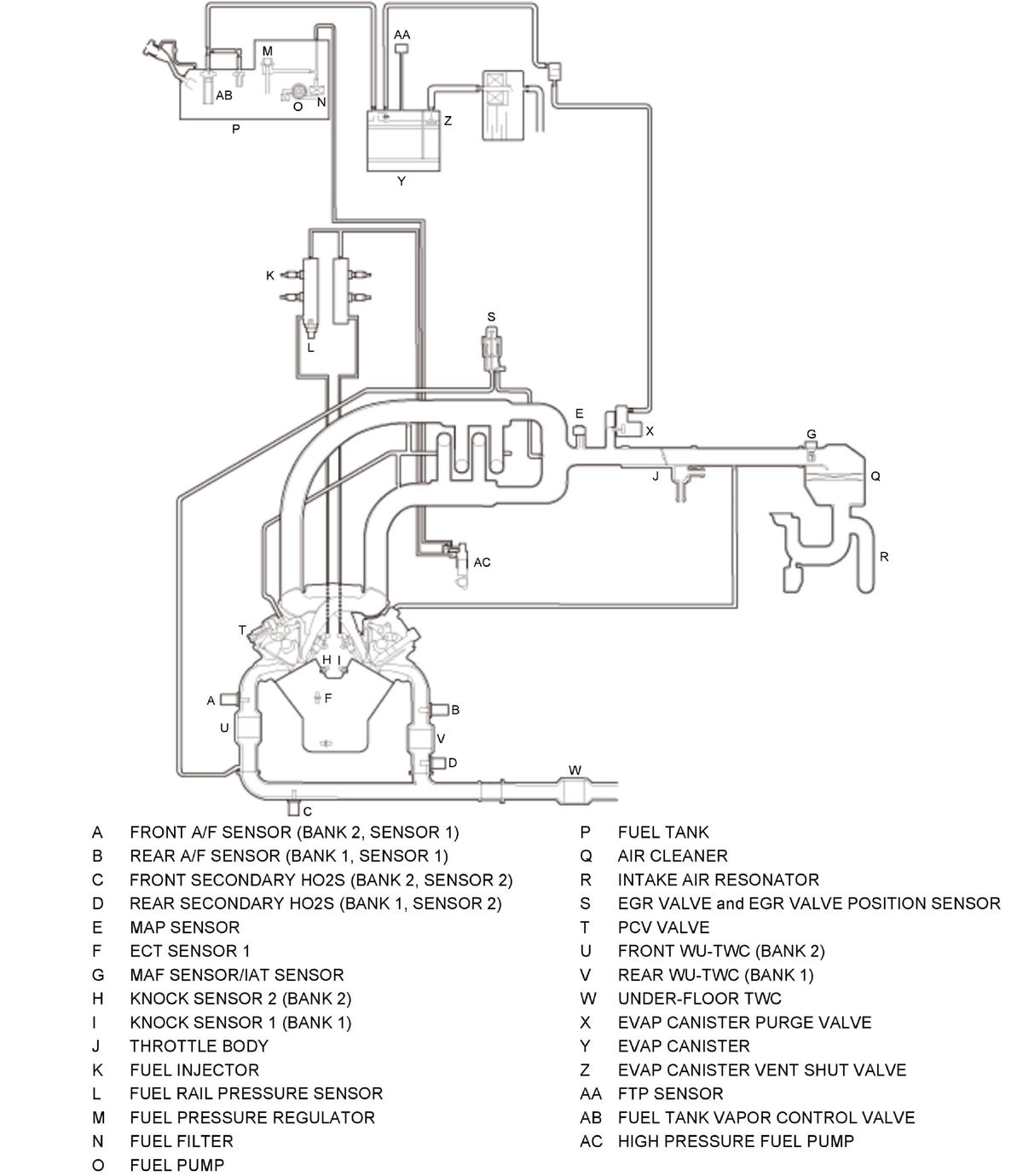

PGM-FI - Components (KA/KC model)
PGM-FI - Components (KA/KC model)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
