Intake Manifold Removal And Installation
›
Exploded View
Exploded View
Intake Manifold

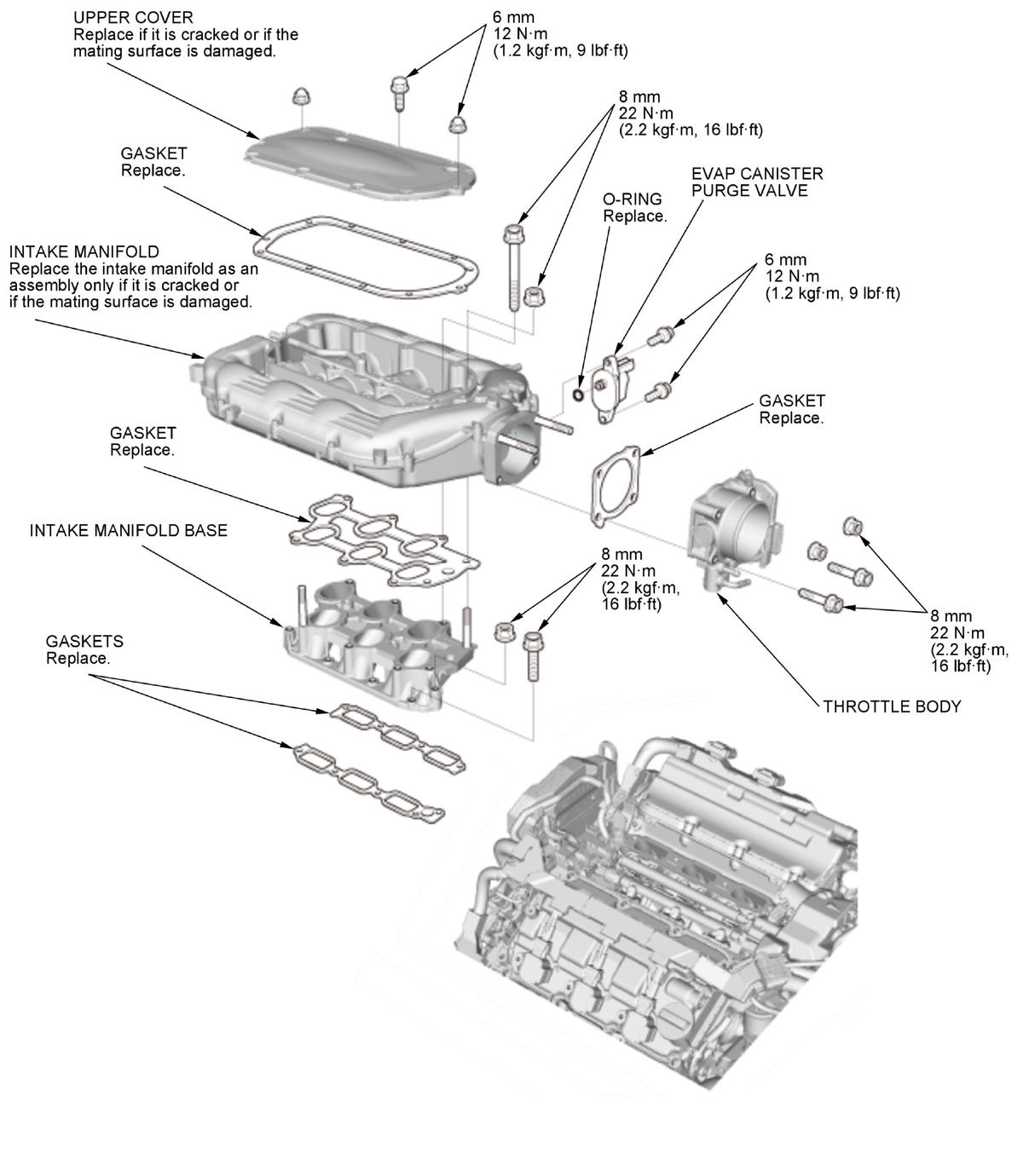

Fig 1: Intake Manifold Replacement Components With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
