DTC P0107

DTC P0107  : MAP Sensor Circuit Low Voltage

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   MAP SENSOR	Less than 0.23	V

   Do the current condition(s) match the threshold?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the MAP sensor and the PCM.

2. Determine possible failure area (PB line, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   MAP sensor 3P connector

   -3. Turn the vehicle to the ON mode.

   -4. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   MAP SENSOR	Less than 0.23	V

   Do the current condition(s) match the threshold?

   YES

   Go to step 5.

   NO

   Go to step 3.

3. Determine possible failure area (MAP sensor, others)

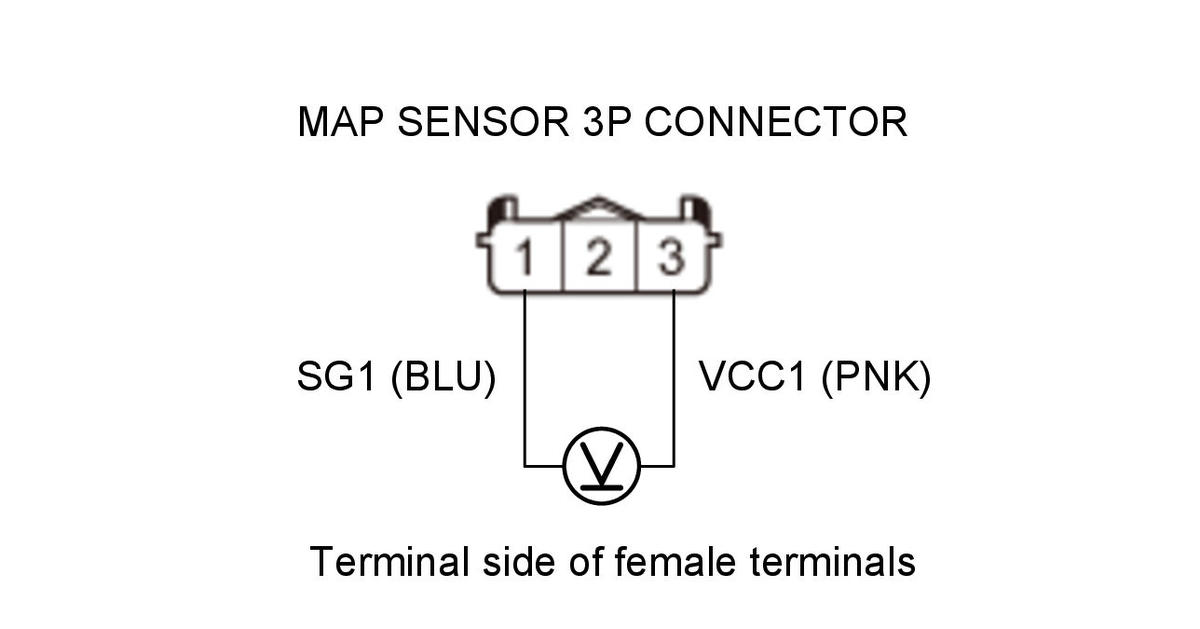

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	MAP sensor 3P connector: disconnected
   Test circuit	VCC1, SG1
   Test point 1	MAP sensor 3P connector No. 1 (BLU)
   Test point 2	MAP sensor 3P connector No. 3 (PNK)

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5.0 V?

   YES

   Replace the MAP sensor , then do the repair verification.

   NO

   Go to step 4.

4. Open wire check (VCC1 line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS.

   -3. Disconnect the following connector.

   PCM connector C (51P)

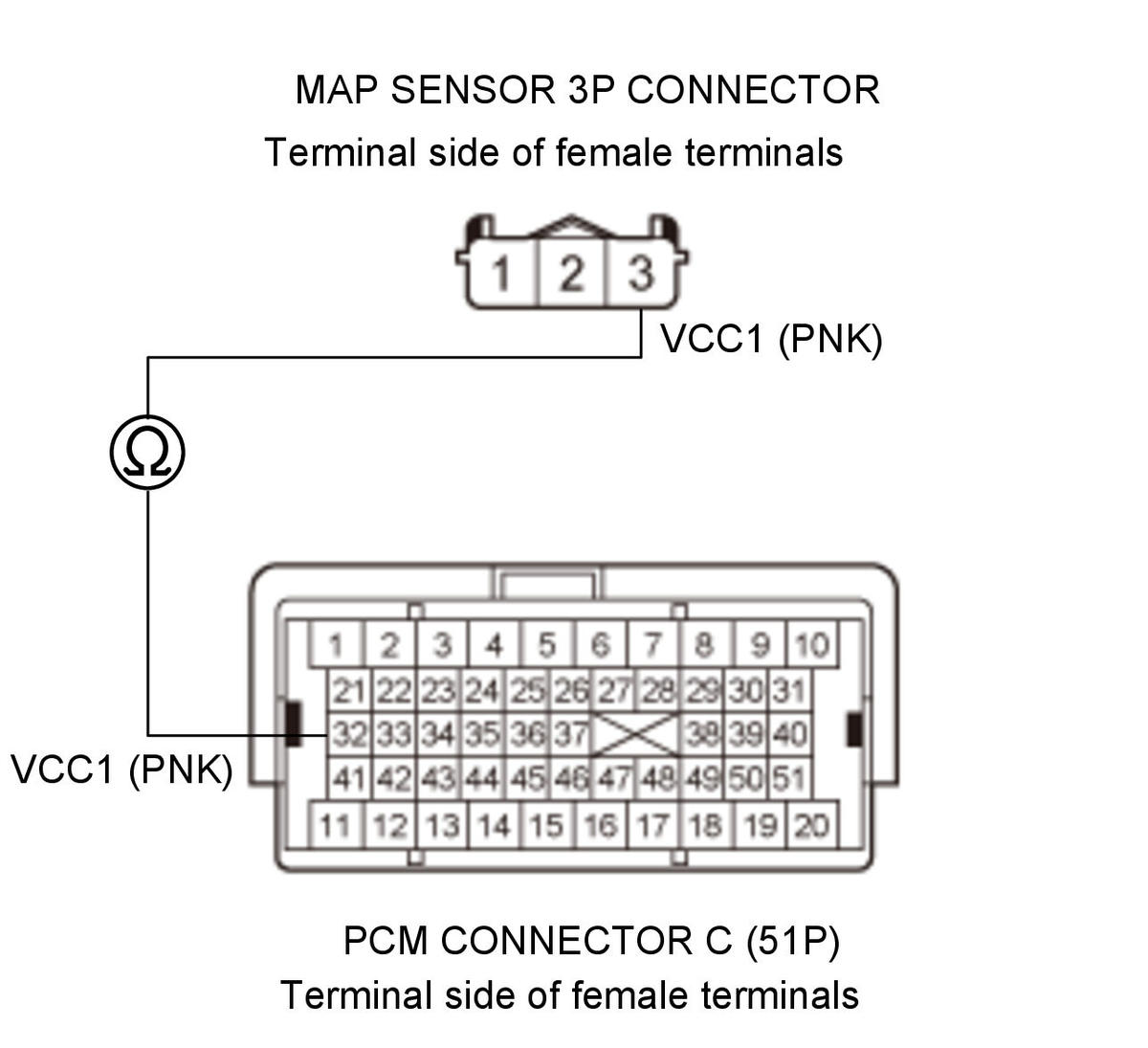

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	MAP sensor 3P connector: disconnected
   	PCM connector C (51P): disconnected
   Test circuit	VCC1
   Test point 1	MAP sensor 3P connector No. 3 (PNK)
   Test point 2	PCM connector C (51P) No. 32 (PNK)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The VCC1 wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM , then do the repair verification.

   NO

   Repair an open in the VCC1 wire between the PCM (C32) and the MAP sensor, then do the repair verification.

5. Shorted wire check (PB line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS.

   -3. Disconnect the following connector.

   PCM connector C (51P)

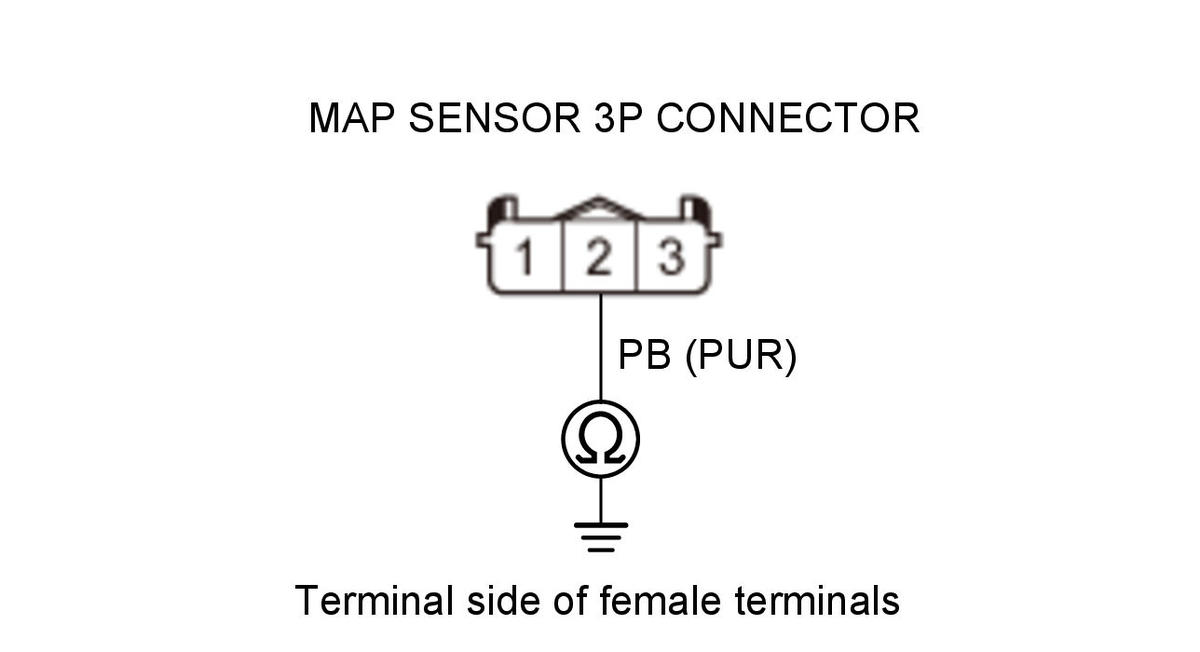

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	MAP sensor 3P connector: disconnected
   	PCM connector C (51P): disconnected
   Test circuit	PB
   Test point 1	MAP sensor 3P connector No. 2 (PUR)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short in the PB wire between the PCM (C45) and the MAP sensor, then do the repair verification.

   NO

   The PB wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM , then do the repair verification.

6. Repair verification

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Reconnect all connectors.

   -3. Exit the SCS mode with the HDS.

   -4. Turn the vehicle to the ON mode.

   -5. Reset the PCM with the HDS .

   Reset PCM

   -6. Do the PCM idle learn procedure .

   -7. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0107 MAP Sensor Circuit Low Voltage

   DTC (PGM-FI)

   Is DTC P0107 indicated?

   YES

   Check for poor connections or loose terminals at the MAP sensor and the PCM. If the PCM was updated, substitute a known-good PCM , then recheck. If the PCM was substituted, go to step 1.

   NO

   Troubleshooting is complete. If the PCM was substituted, replace the original PCM . If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC's troubleshooting.
