DTC P1717

DTC P1717  : Transmission Range Switch ATP RVS Switch (Open or Short)

NOTE:
  • Before you troubleshoot, record all freeze data and any on-board snapshot with the HDS, and review the General Troubleshooting Information .
  • This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.
DTC Description Confirmed DTC Pending DTC Freeze Frame
P1717 Transmission Range Switch ATP RVS Switch (Open or Short)

DTC (A/T)

  1. Problem verification

    -1. Turn the vehicle to the ON mode.

    -2. Check the parameter(s) below with the HDS with the shift lever in R.

    Signal Threshold Current conditions
    Values Unit Values Unit
    Reverse Switch (ATPRVS) ON

    Do the current condition(s) match the threshold?

    YES

    Intermittent failure, the system is OK at this time. Check for poor connections and loose terminals between the transmission range switch and the PCM.

    NO

    The failure is duplicated. Go to step 2.

  2. Determine possible failure area (transmission range switch, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Transmission range switch 10P connector

    -3. Connect terminals A and B with a jumper wire.

    Terminal A Transmission range switch 10P connector No. 5 (PNK)
    Terminal B Body ground

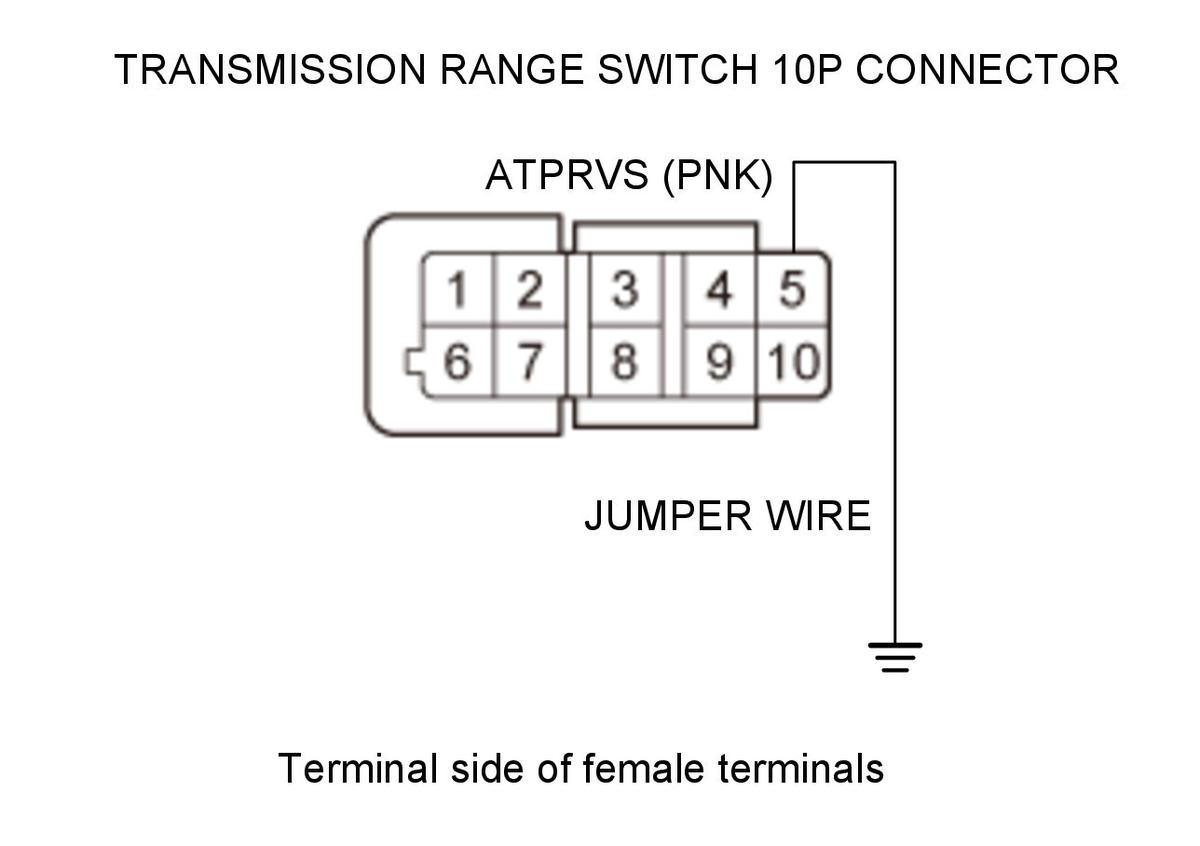

    GHH345178Courtesy of HONDA, U.S.A., INC.

    -4. Turn the vehicle to the ON mode.

    -5. Check the parameter(s) below with the HDS.

    Signal Threshold Current conditions
    Values Unit Values Unit
    Reverse Switch (ATPRVS) ON

    Do the current condition(s) match the threshold?

    YES

    Replace the transmission range switch .

    NO

    Go to step 3.

  3. Open wire check (ATPRVS line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire.

    -3. Jump the SCS line with the HDS.

    -4. Disconnect the following connector.

    PCM connector B (51P)

    -5. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Transmission range switch 10P connector: disconnected
      PCM connector B (51P): disconnected
    Test circuit ATPRVS
    Test point 1 Transmission range switch 10P connector No. 5 (PNK)
    Test point 2 PCM connector B (51P) No. 38 (PNK)

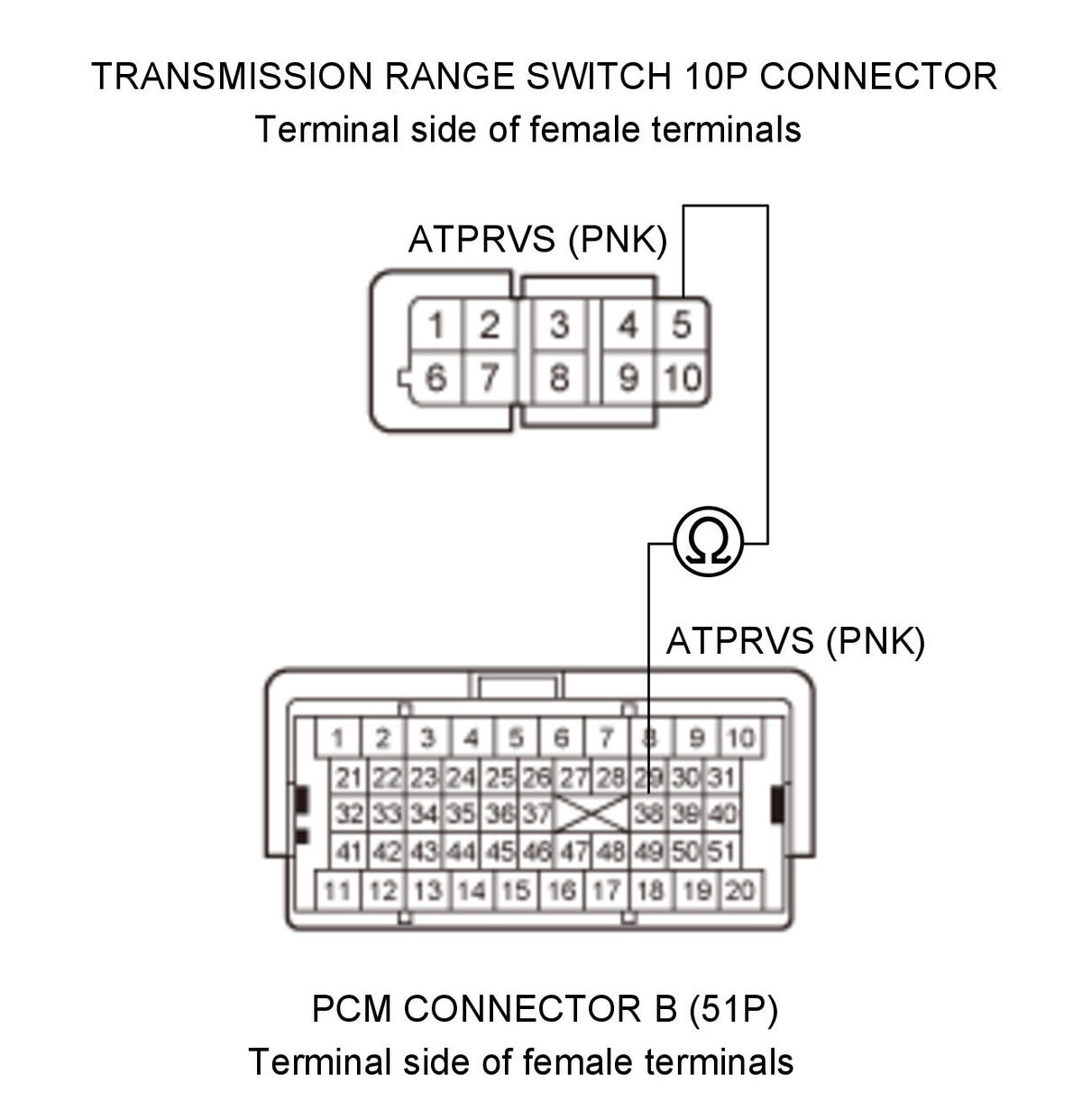

    GHH345179Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The ATPRVS wire is OK. Replace the PCM .

    NO

    Repair an open in the ATPRVS wire between the transmission range switch and the PCM.
