DTC P2122
DTC P2122 : APP Sensor A (TP Sensor D) Circuit Low Voltage
| DTC Description | Confirmed DTC | Pending DTC | Freeze Frame |
|---|---|---|---|
| P2122 APP Sensor A (TP Sensor D) Circuit Low Voltage |
DTC (PGM-FI)
- Problem verification
-1. Turn the vehicle to the ON mode.
-2. Check the parameter(s) below with the HDS.
Signal Threshold Current conditions Values Unit Values Unit APP SENSOR A Less than 0.2 V Do the current condition(s) match the threshold?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the APP sensor and the PCM.
- Determine possible failure area (VCC3 line, others)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connector.
APP sensor 6P connector -3. Turn the vehicle to the ON mode.

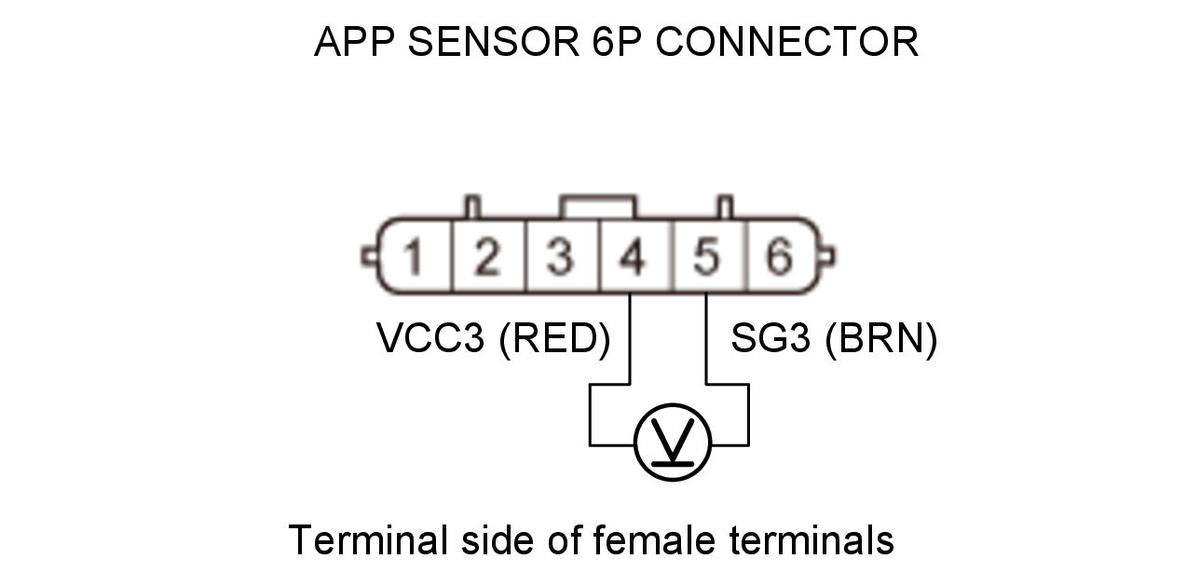

-4. Measure the voltage between test points 1 and 2.
Test condition Vehicle ON mode APP sensor 6P connector: disconnected Test circuit VCC3, SG3 Test point 1 APP sensor 6P connector No. 4 (RED) Test point 2 APP sensor 6P connector No. 5 (BRN) Is there about 5.0 V?
YES
Go to step 3.
NO
Go to step 6.
- Shorted wire check (APS1 line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Jump the SCS line with the HDS.
-3. Disconnect the following connector.

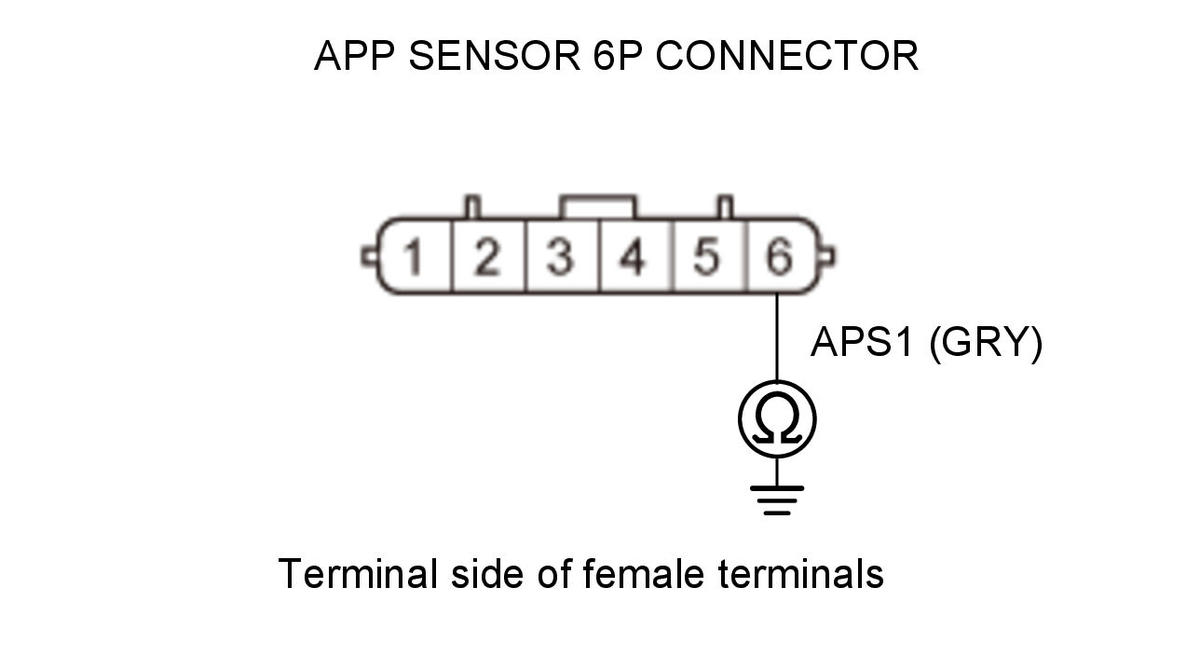

PCM connector A (51P) -4. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode APP sensor 6P connector: disconnected PCM connector A (51P): disconnected Test circuit APS1 Test point 1 APP sensor 6P connector No. 6 (GRY) Test point 2 Body ground Is there continuity?
YES
Repair a short in the APS1 wire between the PCM (A45) and the APP sensor, then do the repair verification.
NO
The APS1 wire is not shorted. Go to step 4.
- Open wire check (APS1 line)

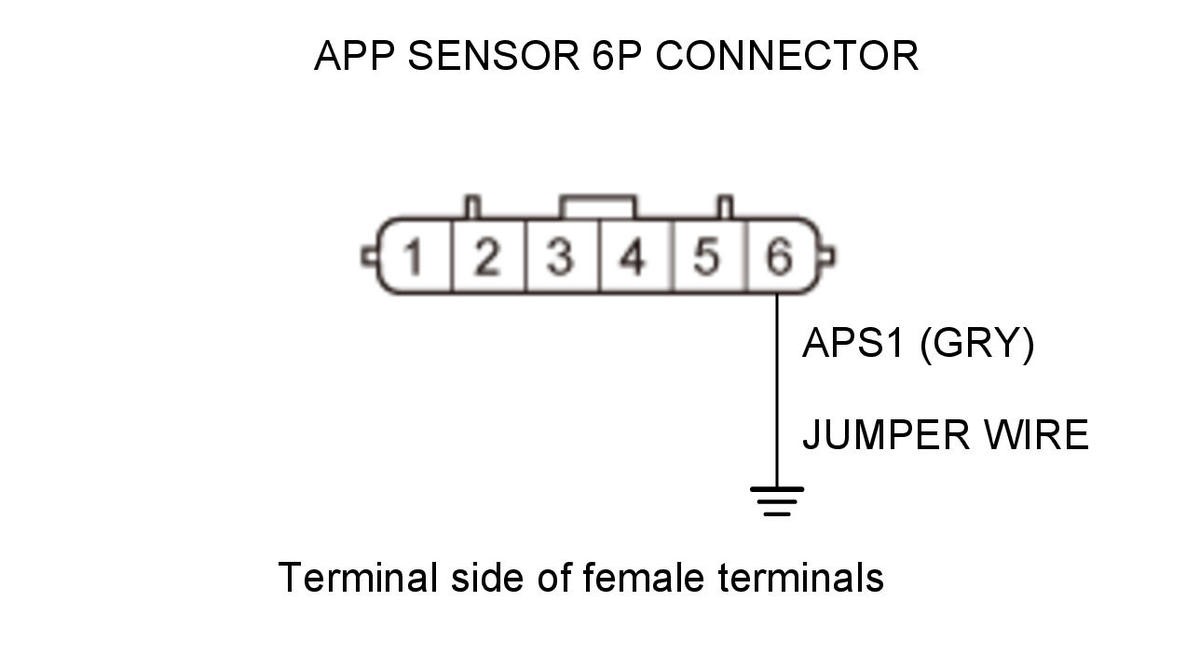

-1. Connect terminals A and B with a jumper wire.

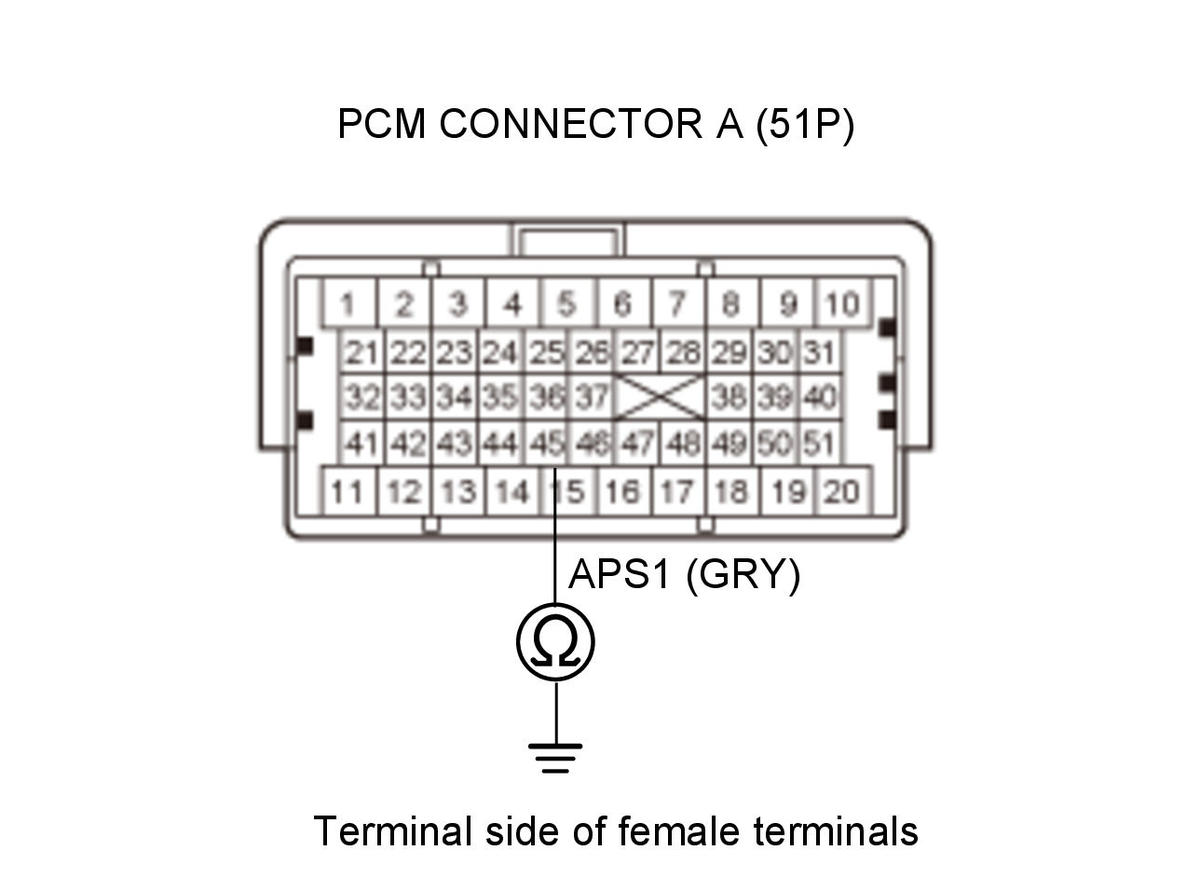

Terminal A APP sensor 6P connector No. 6 (GRY) Terminal B Body ground -2. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode APP sensor 6P connector: disconnected APP sensor 6P connector No. 6: jumped to body ground PCM connector A (51P): disconnected Test circuit APS1 Test point 1 PCM connector A (51P) No. 45 (GRY) Test point 2 Body ground Is there continuity?
YES
The APS1 wire is OK. Go to step 5.
NO
Repair an open in the APS1 wire between the PCM (A45) and the APP sensor, then do the repair verification.
- PCM internal circuit check
-1. Remove the jumper wire from the APP sensor 6P connector.
-2. Reconnect the following connector.

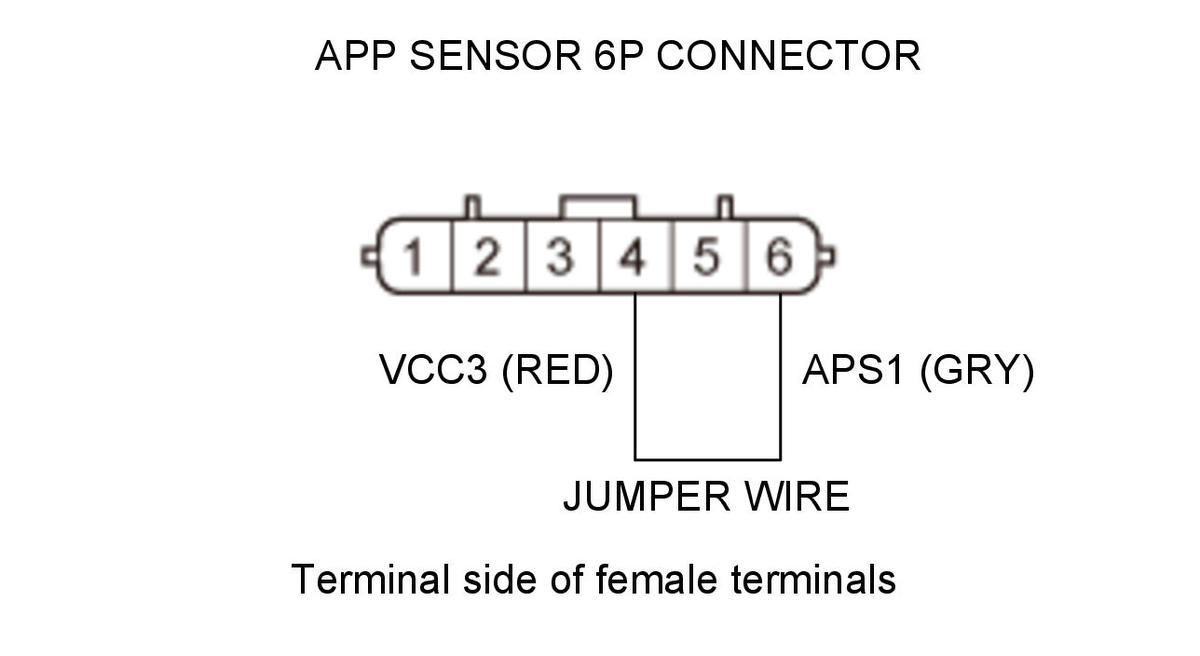

PCM connector A (51P) -3. Connect terminals A and B with a jumper wire.
Terminal A APP sensor 6P connector No. 4 (RED) Terminal B APP sensor 6P connector No. 6 (GRY) -4. Turn the vehicle to the ON mode.
-5. Check the parameter(s) below with the HDS.
Signal Threshold Current conditions Values Unit Values Unit APP SENSOR A Less than 0.2 V Do the current condition(s) match the threshold?
YES
Update the PCM if it does not have the latest software, or substitute a known-good PCM , then do the repair verification.
NO
Replace the APP sensor , then do the repair verification.
- Open wire check (VCC3 line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Jump the SCS line with the HDS.
-3. Disconnect the following connector.

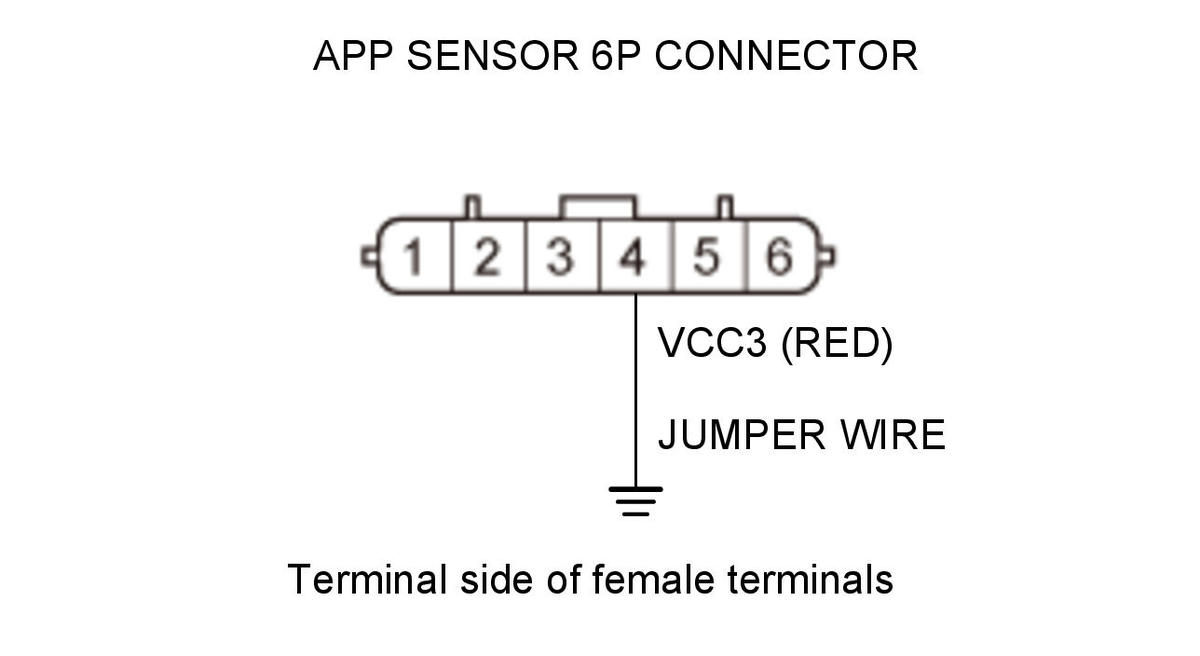

PCM connector A (51P) -4. Connect terminals A and B with a jumper wire.

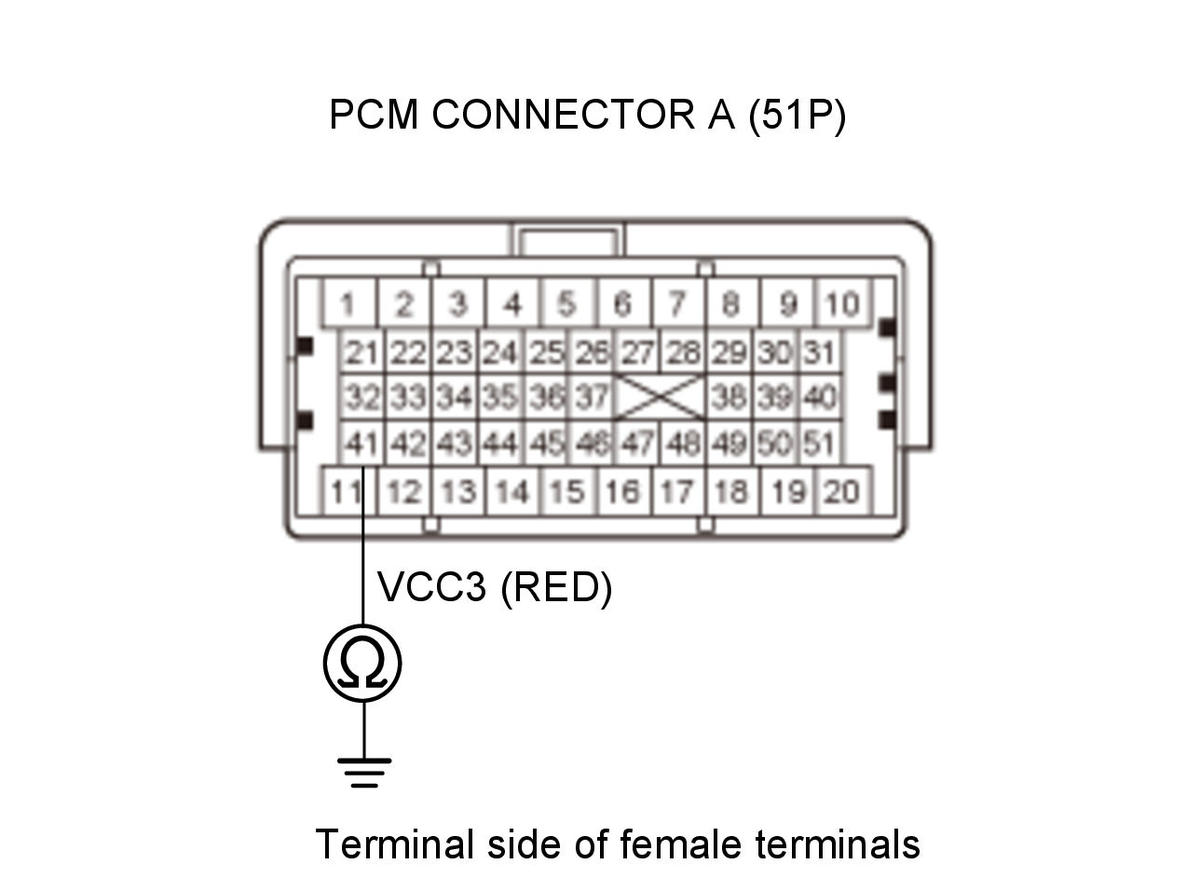

Terminal A APP sensor 6P connector No. 4 (RED) Terminal B Body ground -5. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode APP sensor 6P connector: disconnected APP sensor 6P connector No. 4: jumped to body ground PCM connector A (51P): disconnected Test circuit VCC3 Test point 1 PCM connector A (51P) No. 41 (RED) Test point 2 Body ground Is there continuity?
YES
The VCC3 wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM , then do the repair verification.
NO
Repair an open in the VCC3 wire between the PCM (A41) and the APP sensor, then do the repair verification.
- Repair verification
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Reconnect all connectors.
-3. Exit the SCS mode with the HDS.
-4. Turn the vehicle to the ON mode.
-5. Reset the PCM with the HDS .
Reset PCM
-6. Do the PCM idle learn procedure .
-7. Check for Pending or Confirmed DTCs with the HDS.
DTC Description Confirmed DTC Pending DTC Freeze Frame P2122 APP Sensor A (TP Sensor D) Circuit Low Voltage DTC (PGM-FI)
Is DTC P2122 indicated?
YES
Check for poor connections or loose terminals at the APP sensor and the PCM. If the PCM was updated, substitute a known-good PCM , then recheck. If the PCM was substituted, go to step 1.
NO
Troubleshooting is complete. If the PCM was substituted, replace the original PCM . If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC's troubleshooting.
