Security System Keyless Entry System - Testing & Troubleshooting
›
Description
›

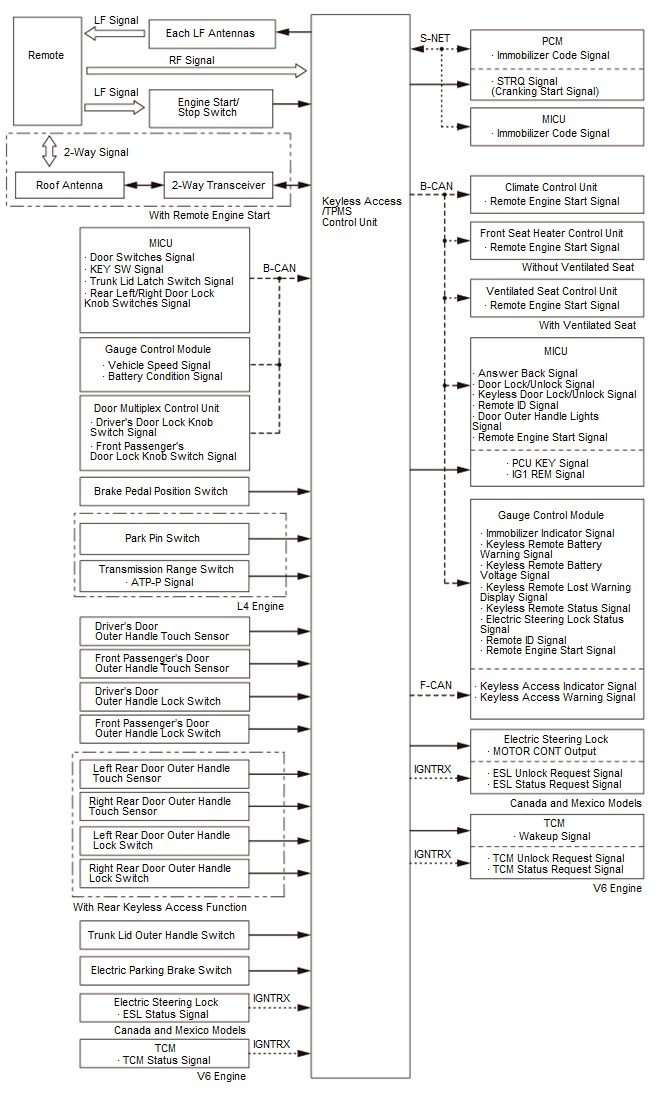

Keyless Access System Description - System Diagram
Keyless Access System Description - System Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
