Steering System - Testing & Troubleshooting
›
Disassembly And Reassembly
›
Steering Wheel Disassembly And Reassembly
›

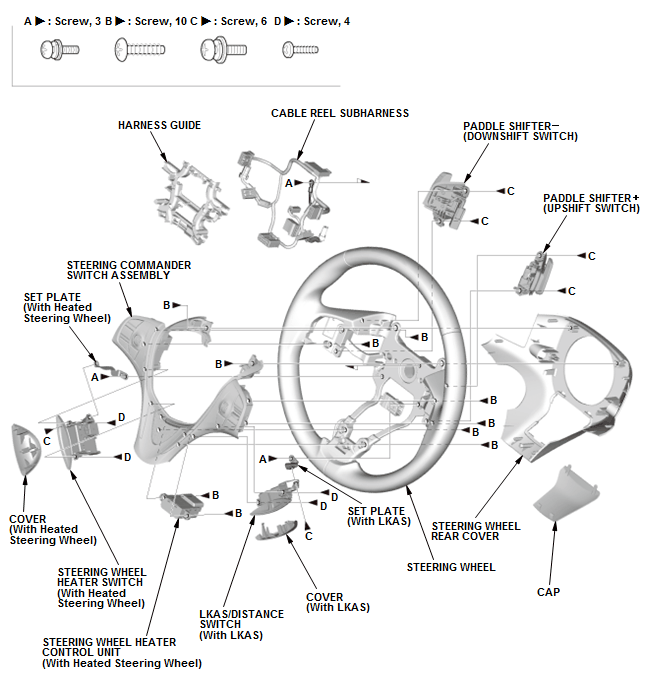

Exploded View
Exploded View
Steering Wheel
Exploded view
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
