Heated Steering Wheel Switch Test: Test

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (With SH-AWD), or SRS Component Location Index (Without SH-AWD) and the precautions and procedures before doing repairs or service.

  1. Steering Wheel - Remove

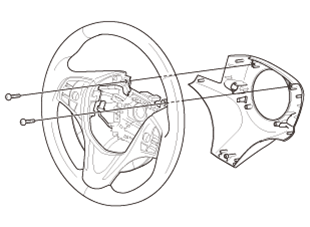

  2. Steering Wheel Rear Cover - Remove
    GHH203981Courtesy of HONDA, U.S.A., INC.
  3. Heated Steering Wheel Switch - Test
    GHH203982GHH203983Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH203982GHH203983Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 1. Remove the heated steering wheel switch cover (A)
    2. Disconnect the connector (B)

    3. Check the heated steering wheel switch (C) according to the table.

    NOTE:
    • When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
    • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

    4. If the result is not as specified, replace the heated steering wheel switch .
  4. All Remove Parts - Install
    1. Install the parts in the reverse order of removal.
