Heated Steering Wheel Temperature Sensor Test: Test

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (With SH-AWD), or SRS Component Location Index (Without SH-AWD) and the precautions and procedures before doing repairs or service.

1. Steering Wheel - Remove

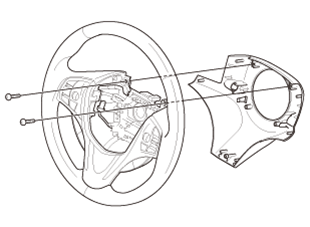

2. Steering Wheel Rear Cover - Remove

   Courtesy of HONDA, U.S.A., INC.

3. Steering Wheel Temperature Sensor - Test

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   1. Disconnect the connector (A). 2. Measure the resistance between the terminals according to the table. 3. Compare the resistance readings with the specifications shown in the graph; the resistance should be within the specifications. 4. If the resistance is not as specified, the steering wheel temperature sensor (B) is faulty; replace the steering wheel assembly .

4. All Remove Parts - Install

   1. Install the parts in the reverse order of removal.
