EVAP Control System (KA, KC models)

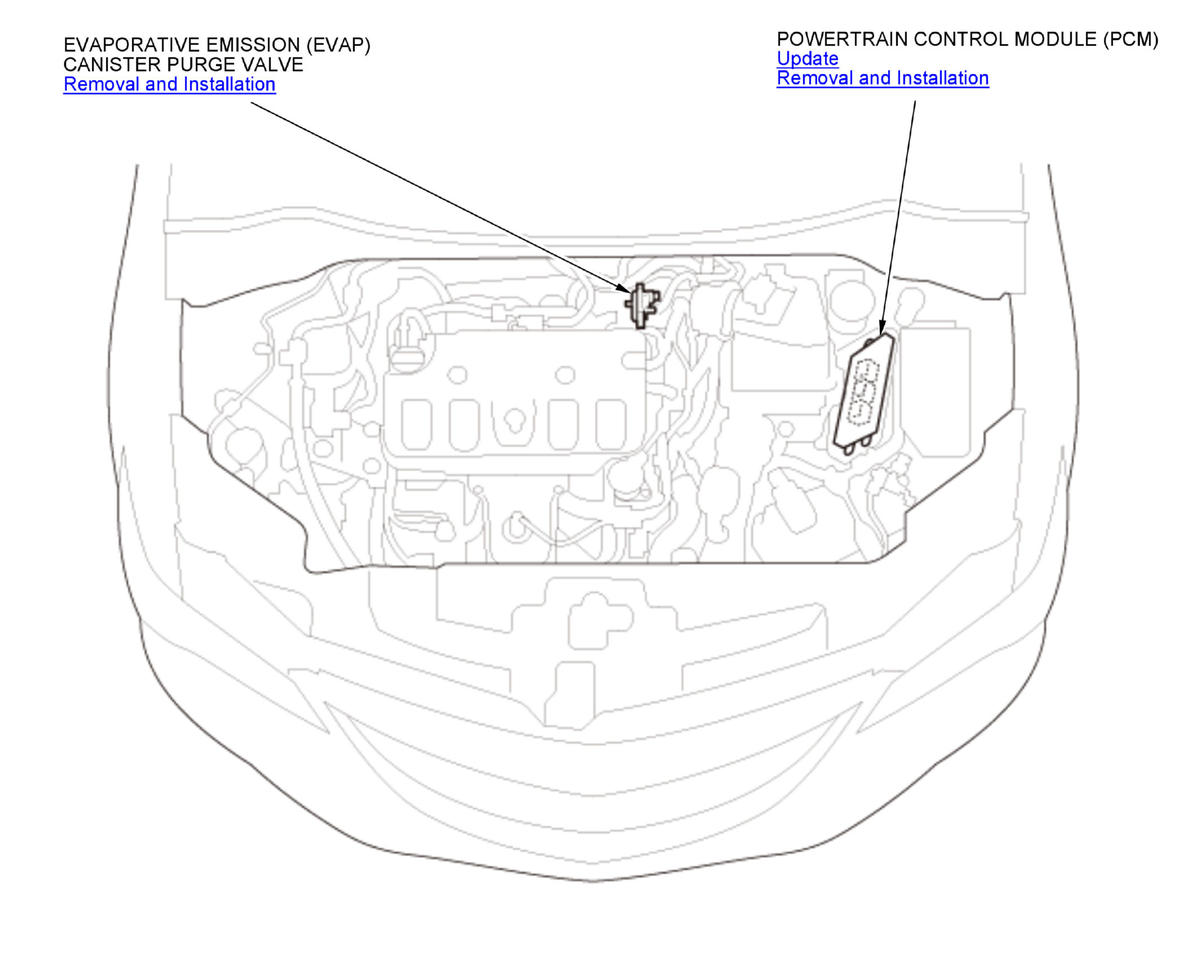

GHH468882

Courtesy of HONDA, U.S.A., INC.

USA and Canada models

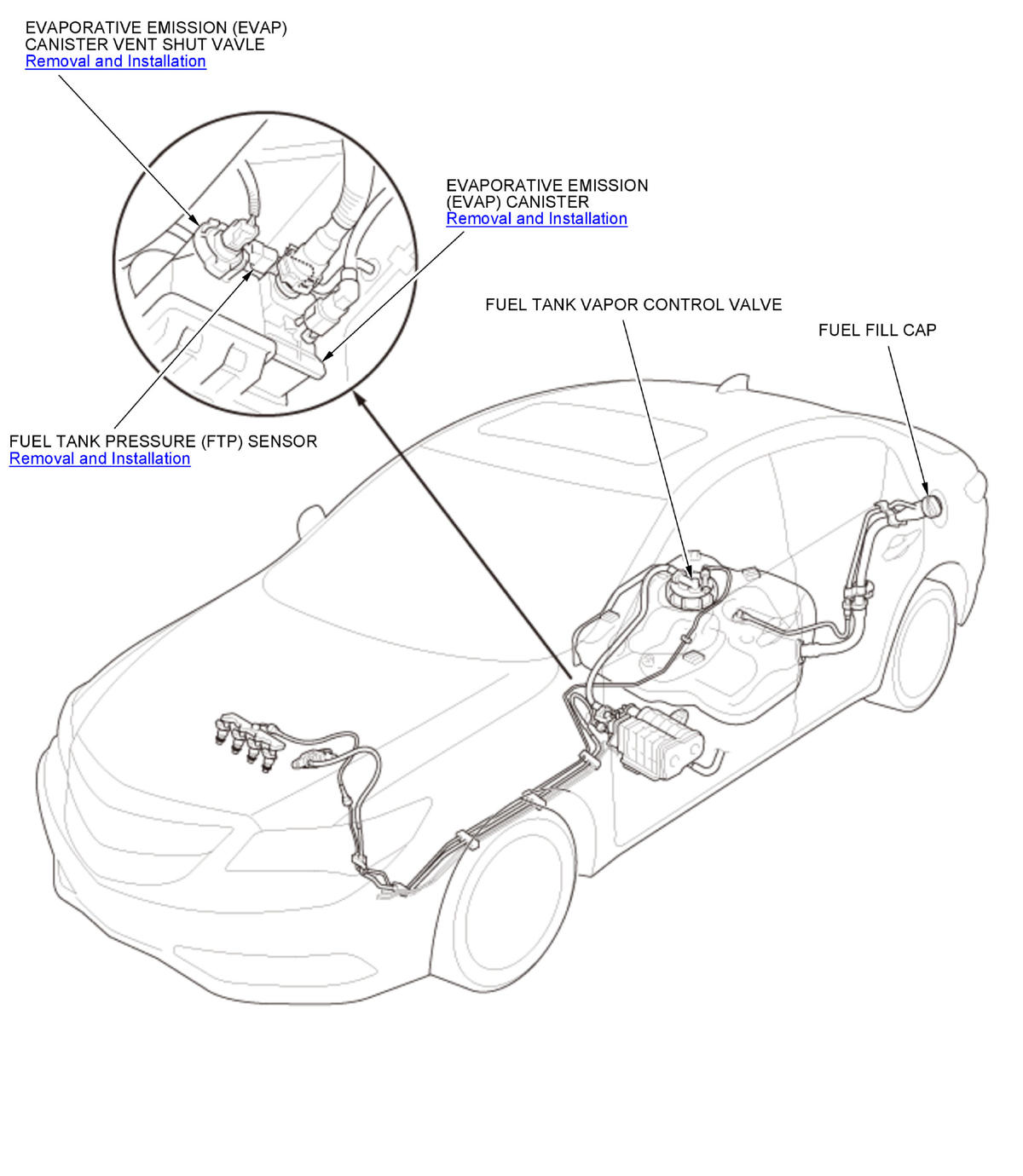

GHH468883

Courtesy of HONDA, U.S.A., INC.

Mexico models

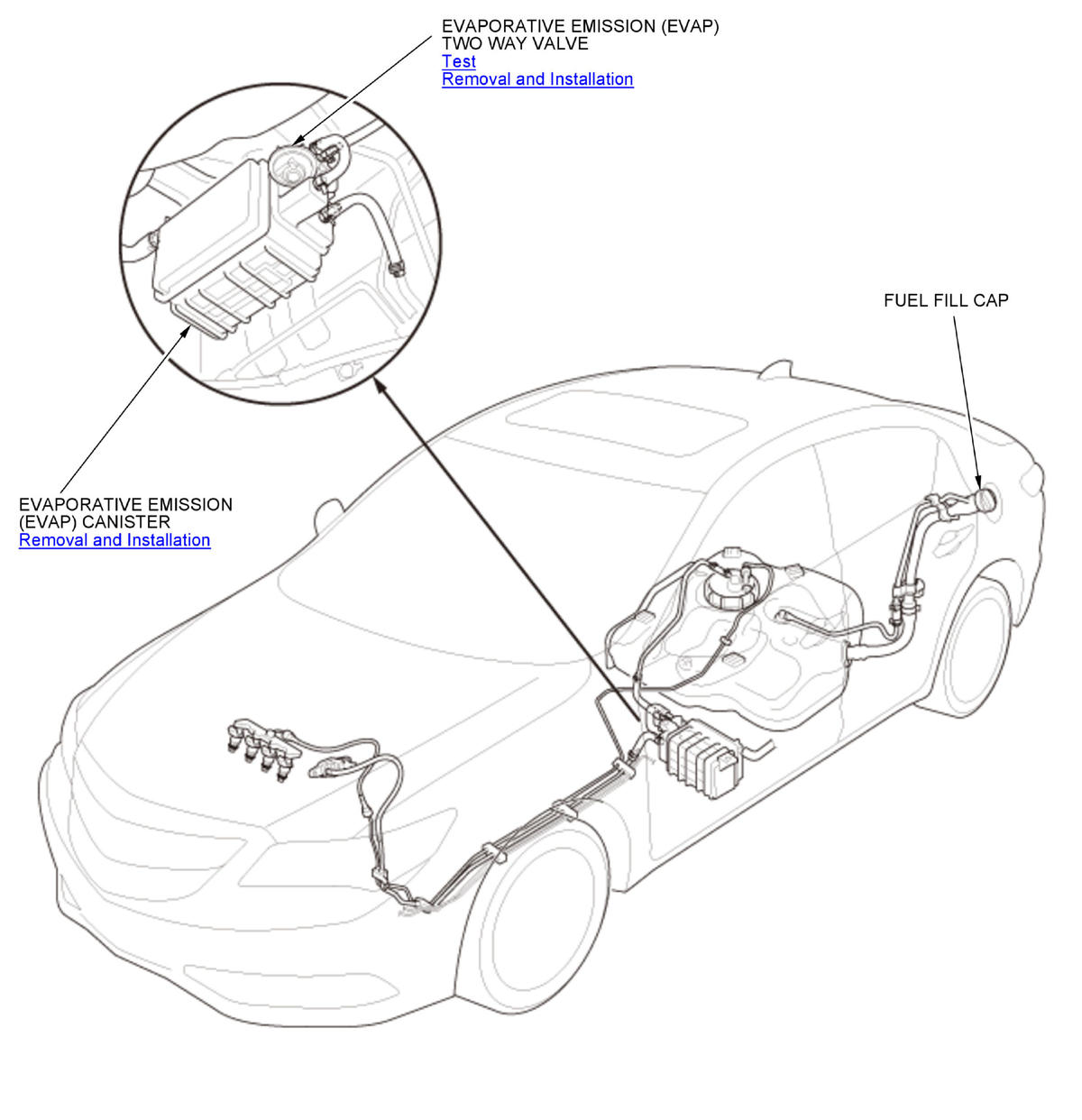

GHH468884

Courtesy of HONDA, U.S.A., INC.
