Engine Block Assembly (R20A5) (2013 2014 2015)

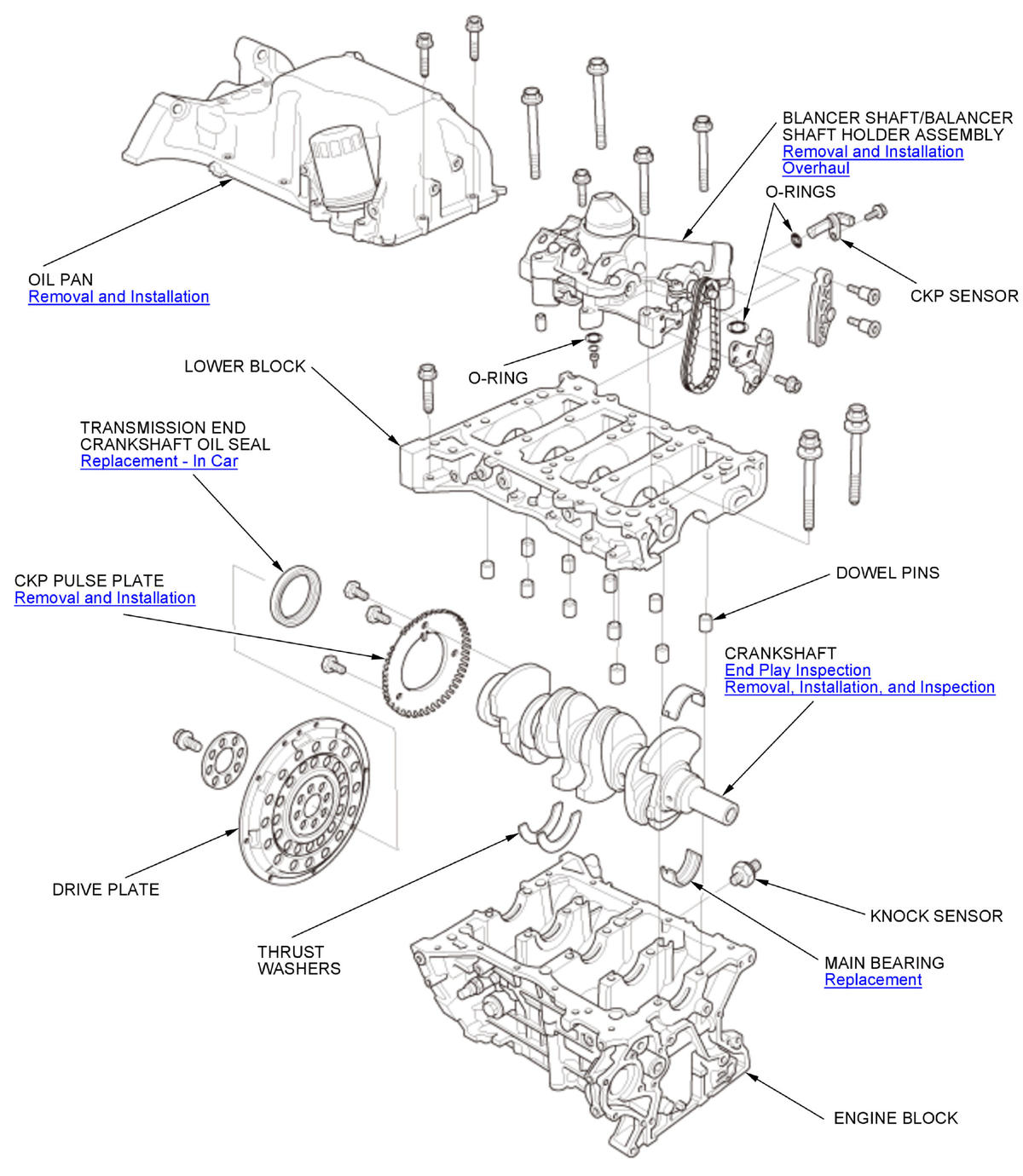

GHH468898Courtesy of HONDA, U.S.A., INC.

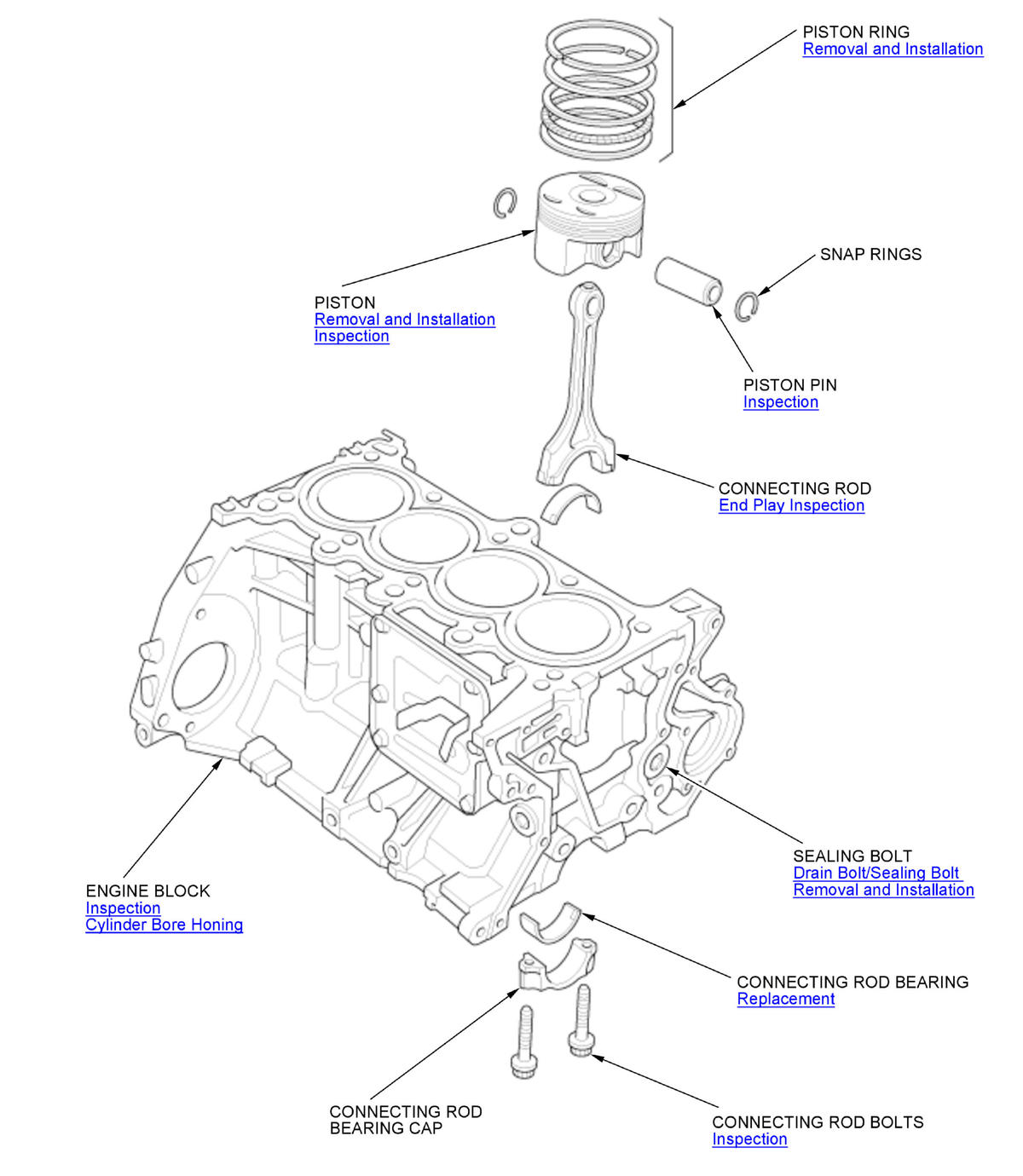

GHH468899Courtesy of HONDA, U.S.A., INC.
