Intake Air - Vacuum Hose Routing

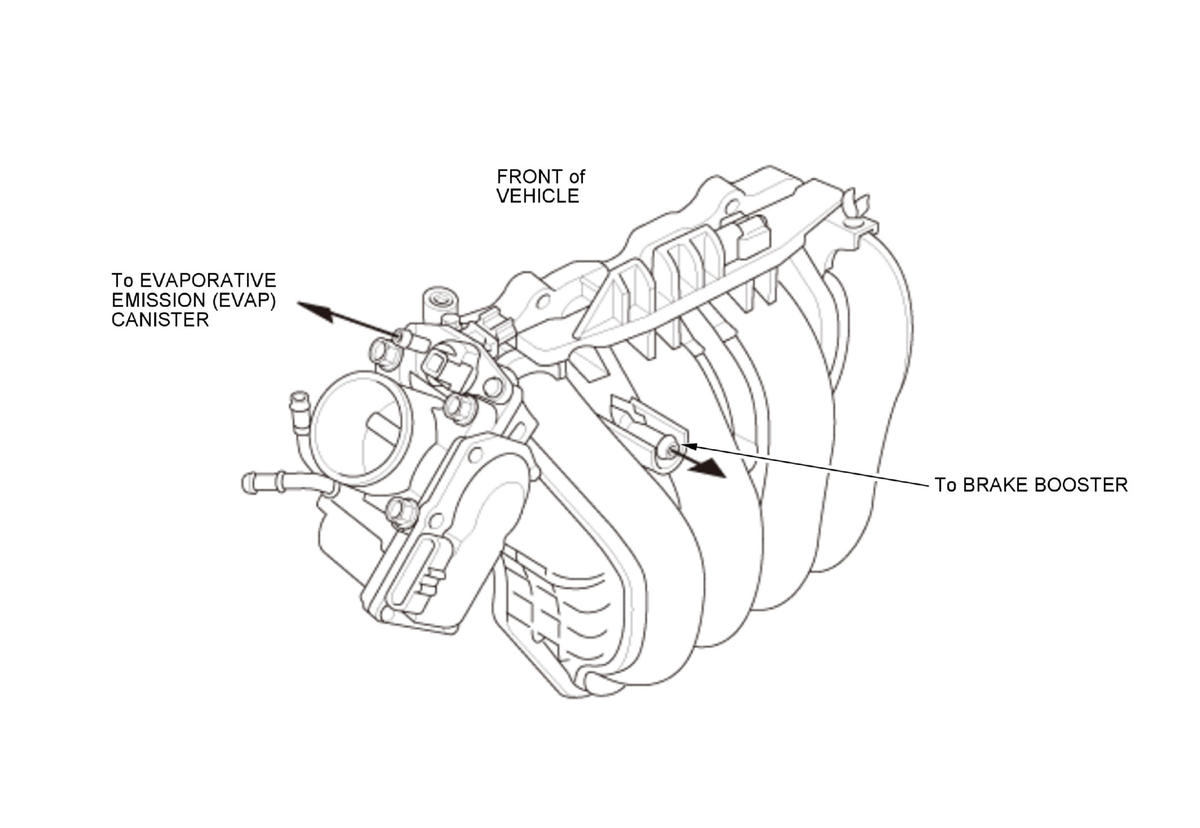

2.0 L models

GHH468793Courtesy of HONDA, U.S.A., INC.

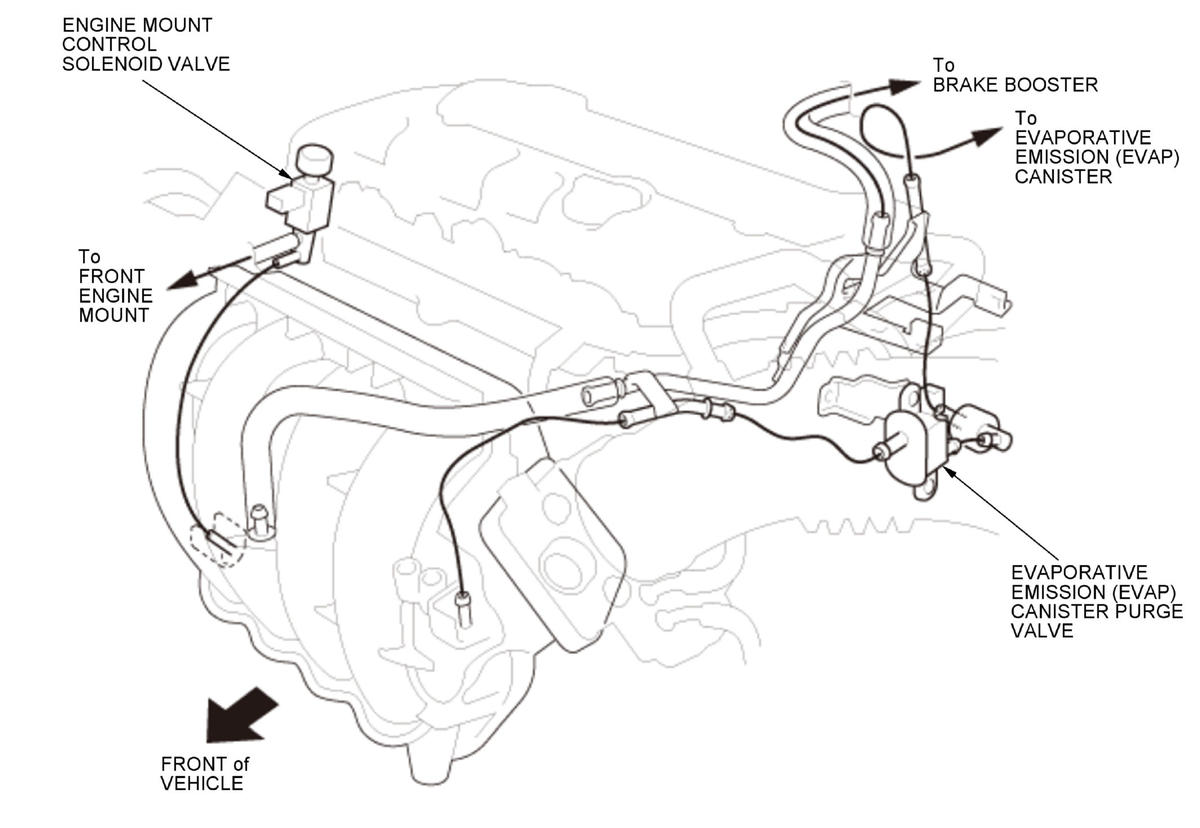

2.4 L models

GHH468794Courtesy of HONDA, U.S.A., INC.
