Air Cleaner Removal And Installation: Installation

Air Cleaner - Install

Courtesy of HONDA, U.S.A., INC.

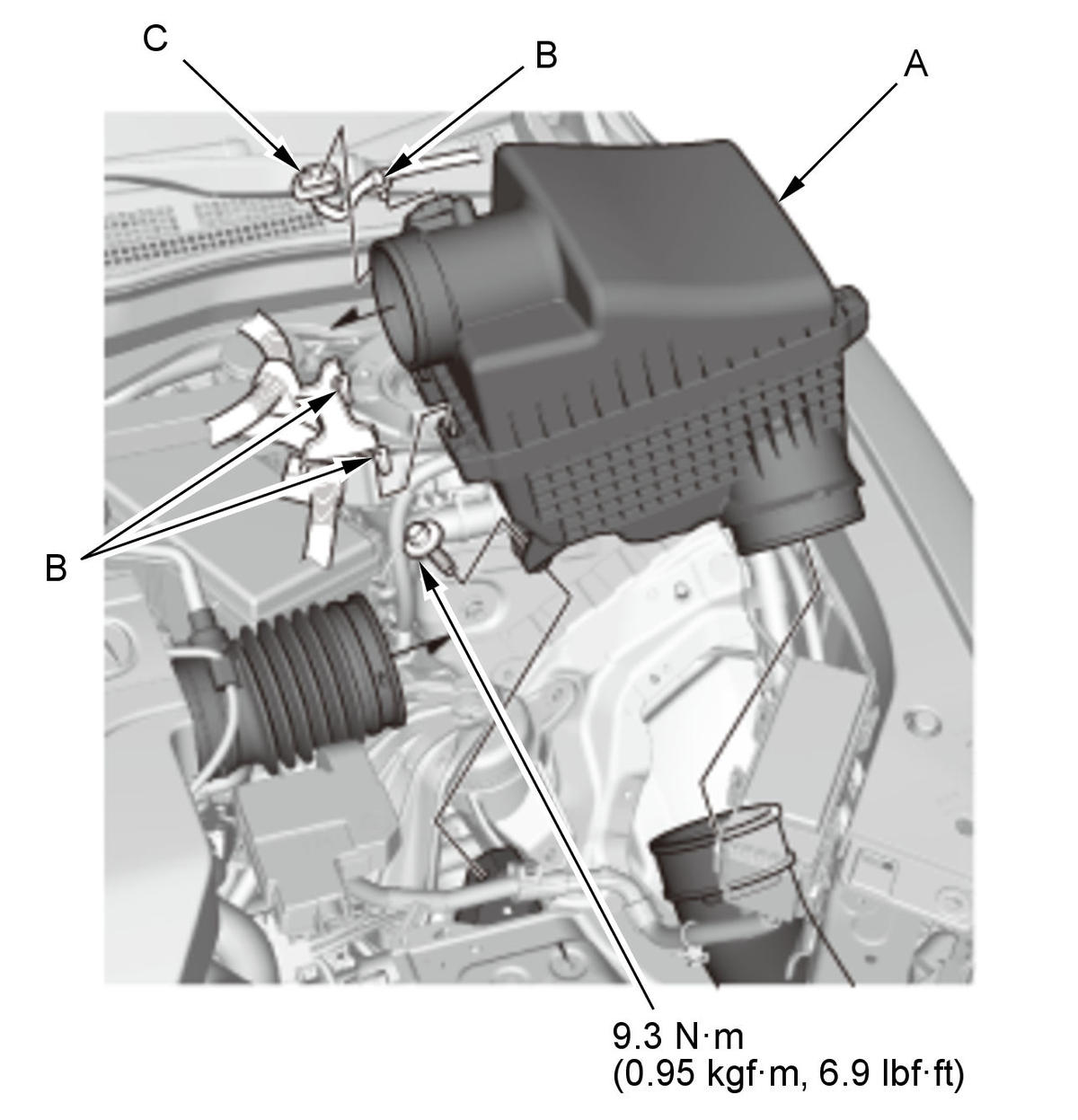

1. Install the air cleaner (A).

2. Install the harness clamps (B).

3. Connect the MAF sensor/IAT sensor connector (C).
