Engine Control System / Engine Mechanical - Service, Testing & Troubleshooting (Hybrid)
›
Component Location Index
›
Engine Block Assembly Component Location Index
Engine Block Assembly Component Location Index

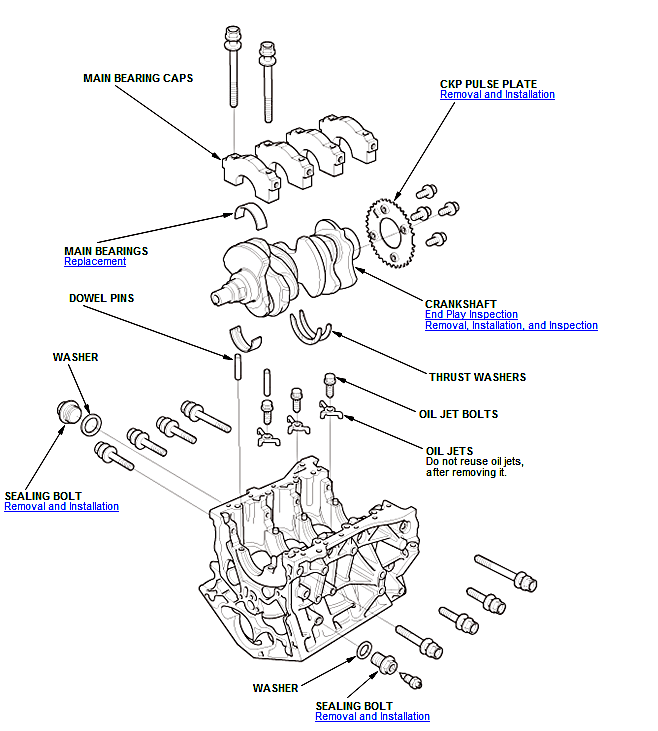

Fig 1: Engine Block Assembly Components Exploded View
Courtesy of HONDA, U.S.A., INC.

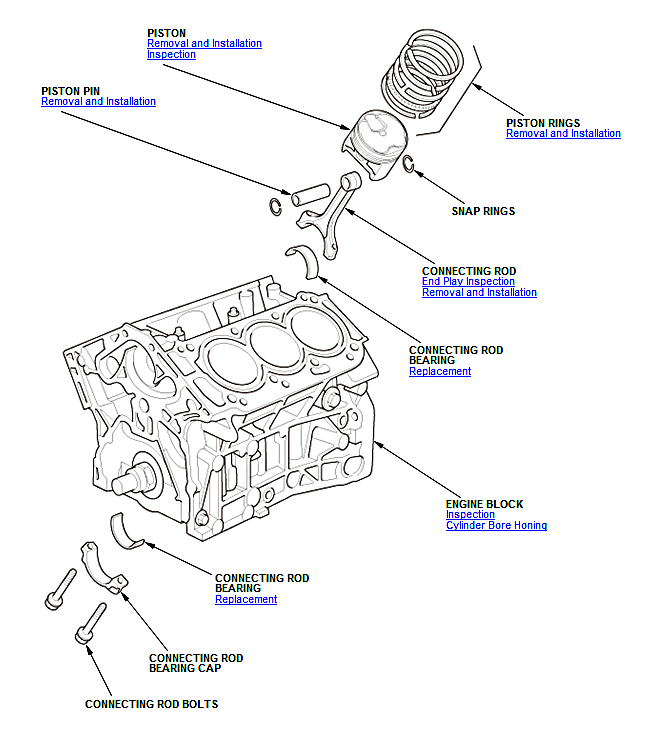

Fig 2: Engine Block Assembly Components Exploded View
Courtesy of HONDA, U.S.A., INC.

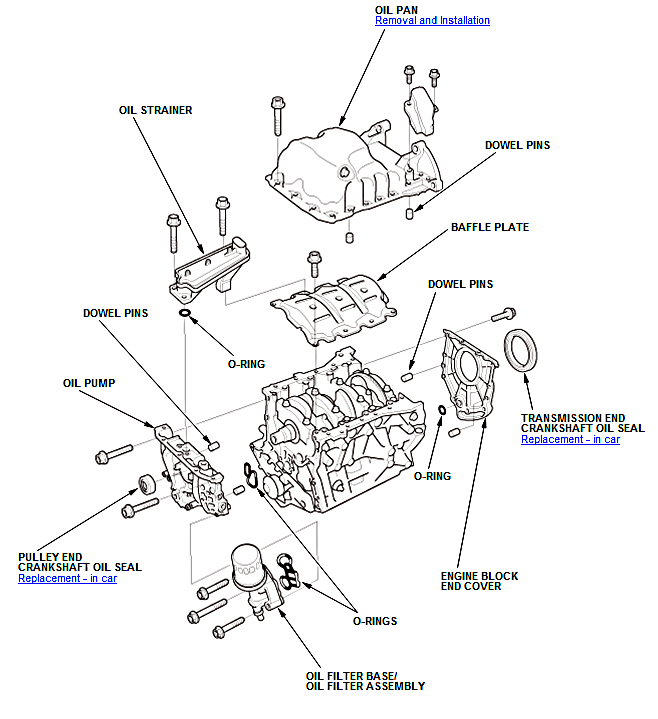

Fig 3: Engine Block Assembly Components Exploded View
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
