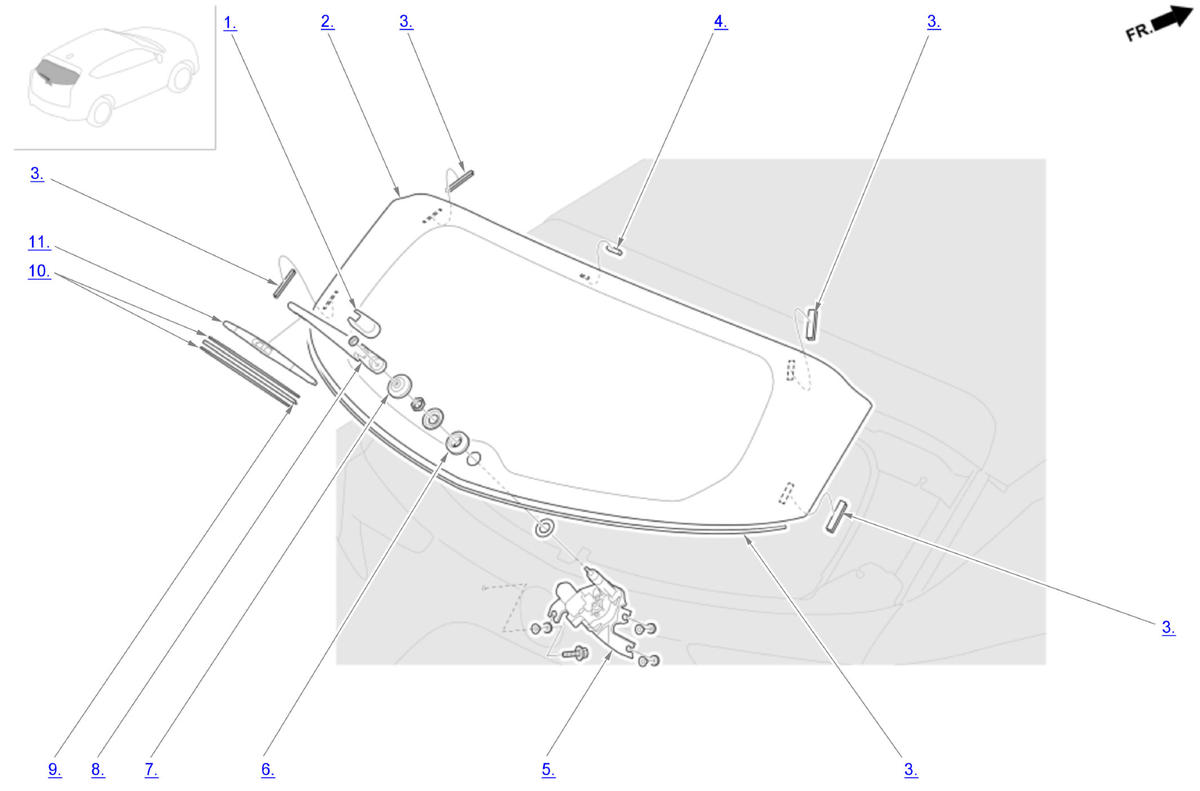

Exploded View
For replacement of components listed below, see Repair Procedure .
Rear Window Area Components
| Component Name | Callout |
|---|---|
| Rear Window Wiper Arm Cover | 1 |
| Rear Window | 2 |
| Rubber Dam | 3 |
| Spacer | 4 |
| Rear Window Wiper Motor | 5 |
| Seal | 6 |
| Pivot Cap | 7 |
| Rear Window Wiper Arm | 8 |
| Rear Window Wiper Blade | 9 |
| Rail | 10 |
| Rear Window Wiper Blade Holder | 11 |
