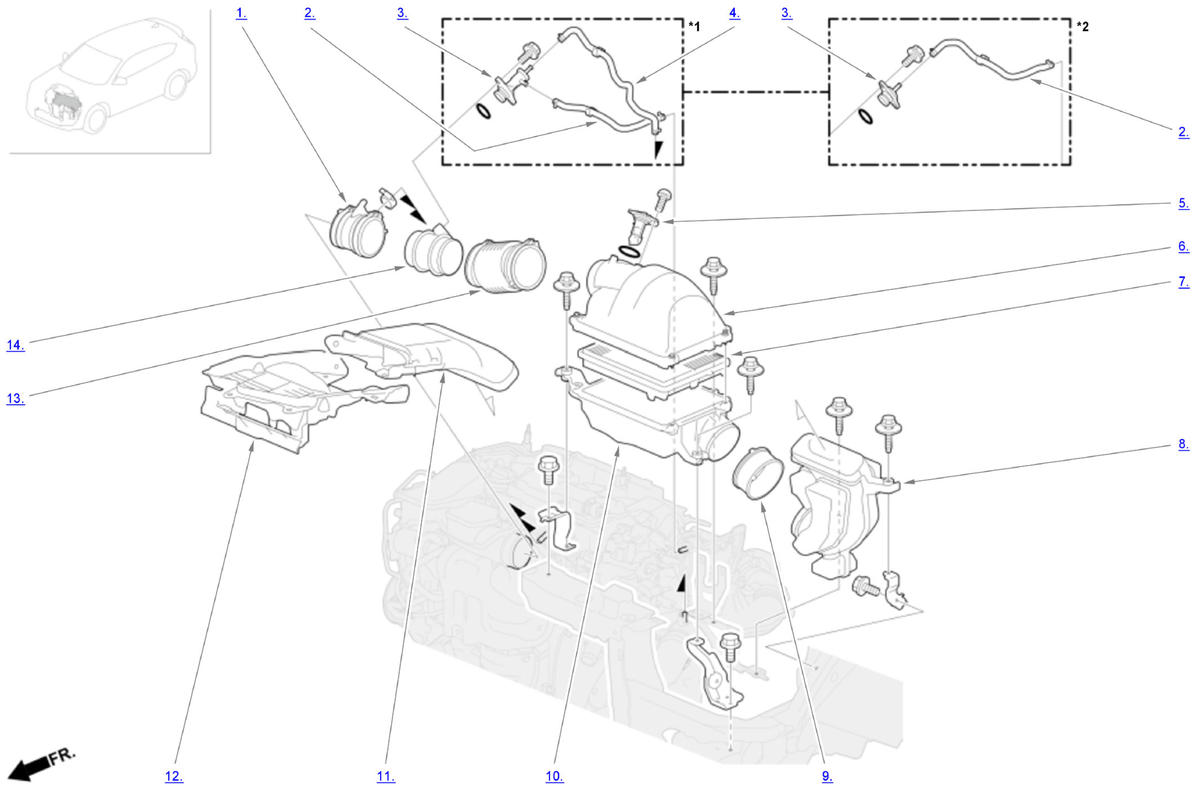

Exploded View
For replacement of components listed below, see Repair Procedure .
| *1: USA and Canada models *2: Mexico models |
Air Cleaner Area Components
| Component Name | Callout |
|---|---|
| Air Flow Tube B | 1 |
| Purge Hose B | 2 |
| Evaporative Emission (EVAP) Canister Purge Nozzle | 3 |
| Purge Hose D | 4 |
| Mass Air Flow (MAF) Sensor/ Intake Air Temperature (IAT) Sensor 1 | 5 |
| Air Cleaner Housing Cover | 6 |
| Air Cleaner Element | 7 |
| Air Intake Chamber | 8 |
| Air Cleaner Connecting Tube | 9 |
| Air Cleaner Housing | 10 |
| Air Intake Duct | 11 |
| Air Guide | 12 |
| Air Flow Tube A | 13 |
| Air Flow Joint | 14 |
