Component Location Index
›
EVAP Control System (Premium.Technology)

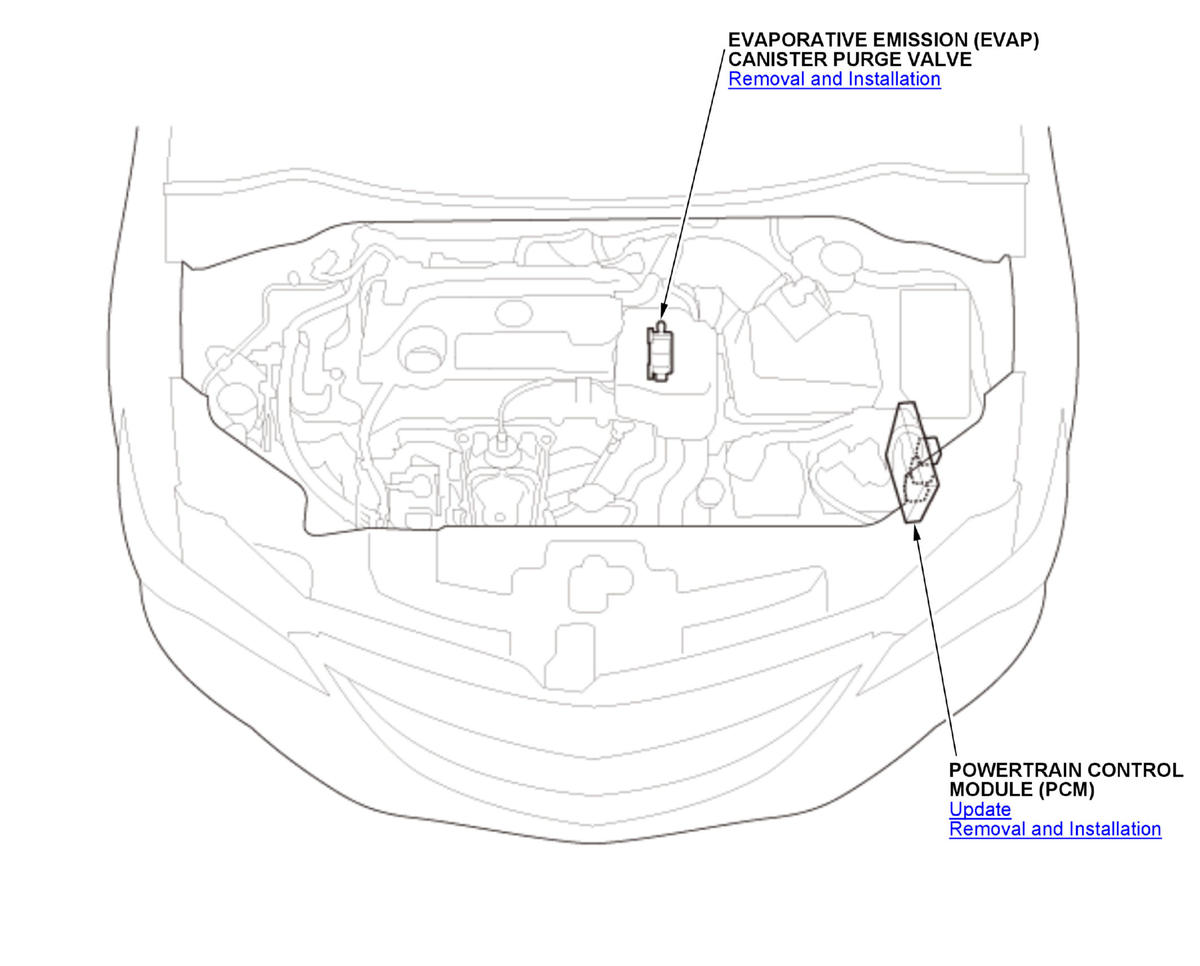

EVAP Control System (Premium.Technology)
Courtesy of HONDA, U.S.A., INC.

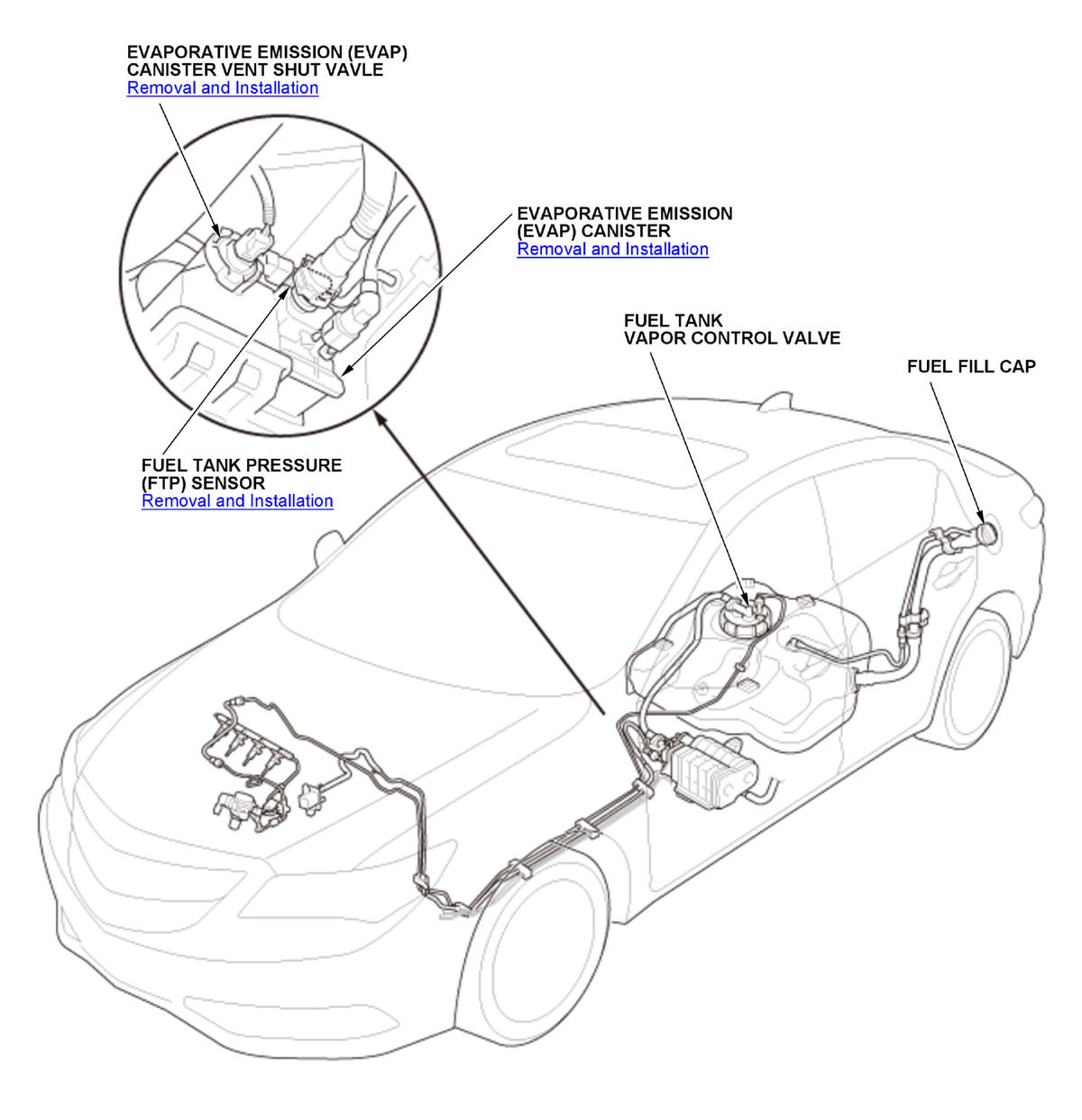

USA and Canada models
Courtesy of HONDA, U.S.A., INC.

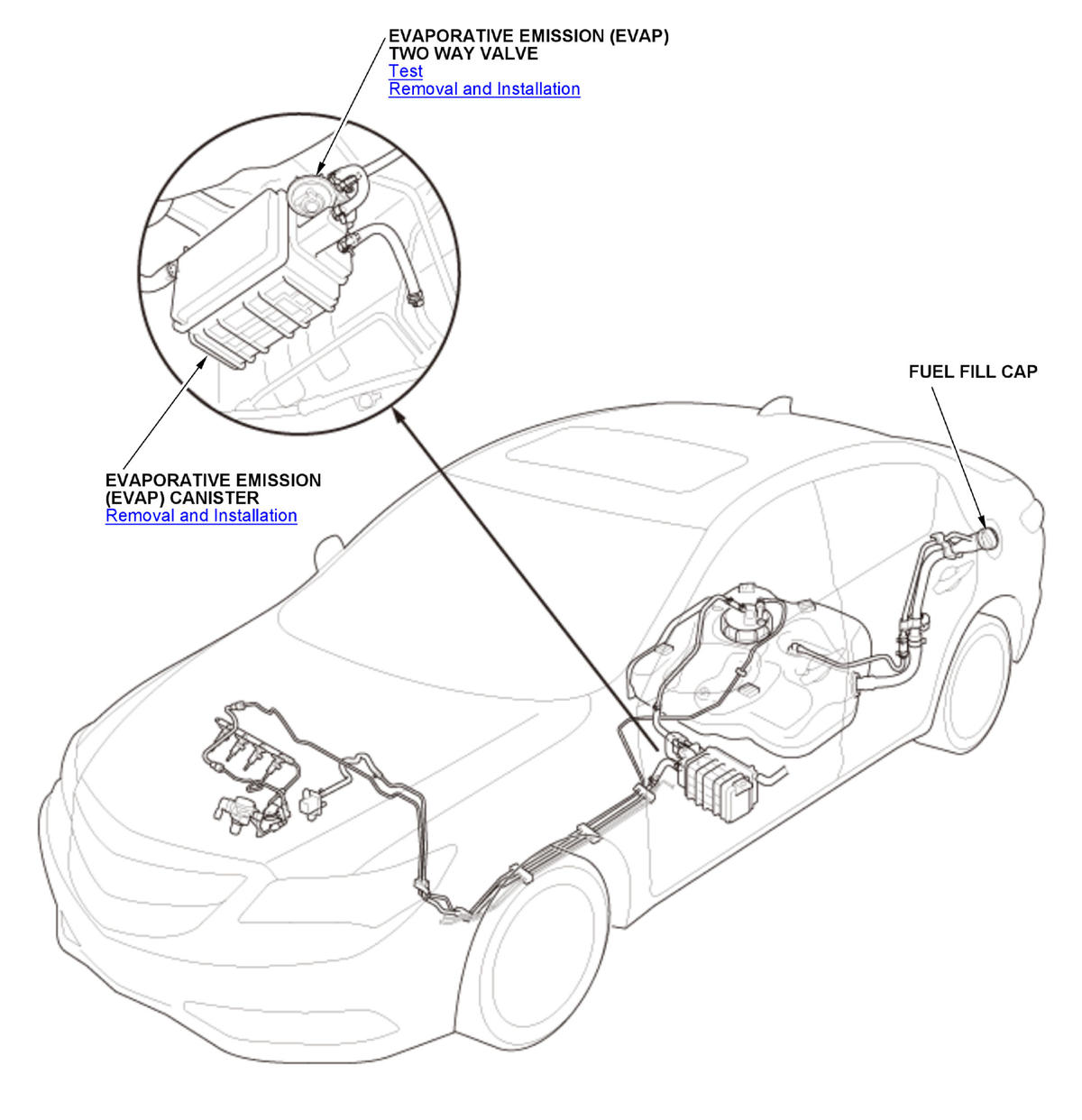

Mexico models
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
