DTC P0712

DTC P0712: ATF Temperature Sensor (Short)

General Description

Courtesy of HONDA, U.S.A., INC.

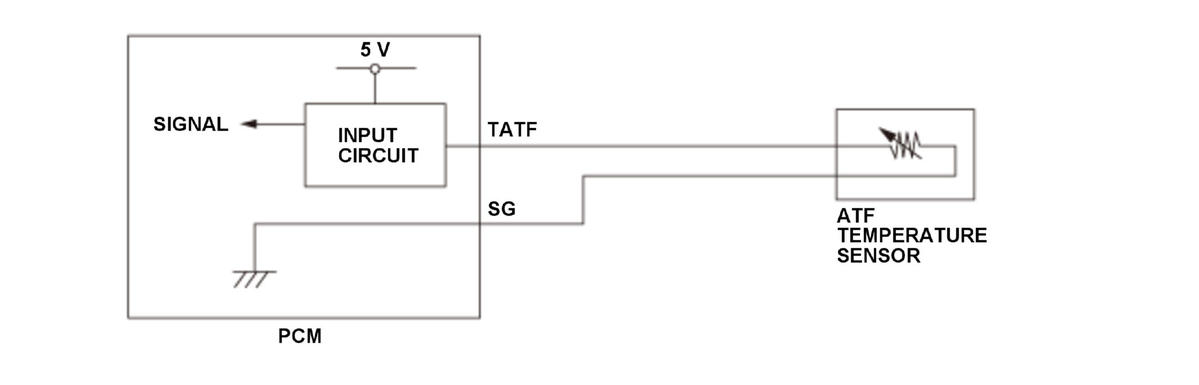

The ATF temperature sensor is a thermistor type sensor that changes resistance according to the change in ATF temperature. The powertrain control module (PCM) sends a 5 V reference signal to the sensor through a pull-up resistor. When the ATF temperature is low, the sensor resistance increases and the PCM detects a high signal voltage. As the ATF temperature rises, the sensor resistance decreases and the PCM detects a low signal voltage. When the ATF temperature sensor signal voltage to the PCM is below specification, indicating that the temperature is above specification (a short to ground), the PCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

Execution	Continuous
Sequence	None
Duration	10 seconds or more
DTC Type	Two drive cycles, MIL on, A/T gear position indicator blinks
OBD Status	PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Enable Conditions

Condition	Minimum	Maximum
Battery voltage [Battery Voltage]	11 V	-
No active DTCs set (prevents monitor from running)	P0713

[ ]: HDS Parameter

Malfunction Threshold

The ATF temperature sensor output voltage [ATF Temp Sensor (V)] is less than 0.07 V for at least 10 seconds.

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

ATF temperature sensor TATF line short to ground
ATF temperature sensor failure
PCM internal circuit failure

Confirmation Procedure

With the HDS

None.

With the Driving Pattern

Start the engine in P position/mode, and wait for at least 10 seconds.

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
