DTC P0831
DTC P0831: Clutch Pedal Position Switch A Circuit High Voltage
General Description
The powertrain control module (PCM) monitors the clutch pedal position switch A signal to switch the starting system from auto control mode to manual mode when it malfunctions. When the PCM cannot detect an OFF signal from clutch pedal position switch A while the clutch pedal is released, the detection continues after the engine start/stop button is pressed to select the OFF mode. If the malfunction continues for a set time after the engine start/stop button is pressed to select the OFF mode, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type, OBD Status
| Execution | Once per driving cycle |
| Sequence | None |
| Duration | 5 minutes or more |
| DTC Type | One drive cycle, MIL off |
| OBD Status | PASSED/FAILED/NOT COMPLETED (STILL TESTING) |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Engine speed [ENGINE SPEED] | 1, 000 RPM | - |
| Vehicle speed [VEHICLE SPEED] | 19 mph (30 km/h) | - |
| Other | Malfunction judgment executes after the engine start/stop button is pressed to select the OFF mode if PCM cannot detect OFF signal from clutch pedal position switch A while clutch pedal is released under above conditions | |
[ ]: HDS Parameter
Malfunction Threshold
The PCM cannot detect an OFF signal from clutch pedal position switch A for at least 5 minutes after the engine start/stop button is pressed to select the OFF mode.
Possible Cause
- Clutch pedal position switch A ON failure

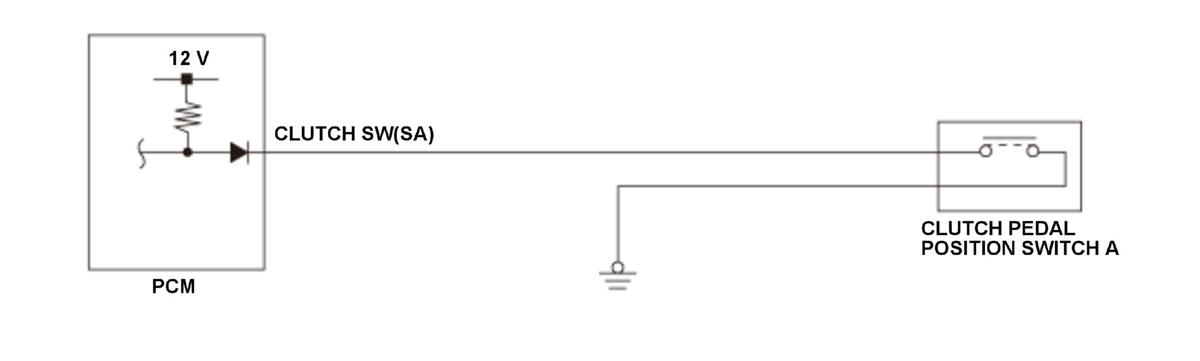

- Clutch pedal position switch A CLUTCH SW(SA) line short to ground
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory. The MIL does not come on.
Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
