Repair Procedure: Notes

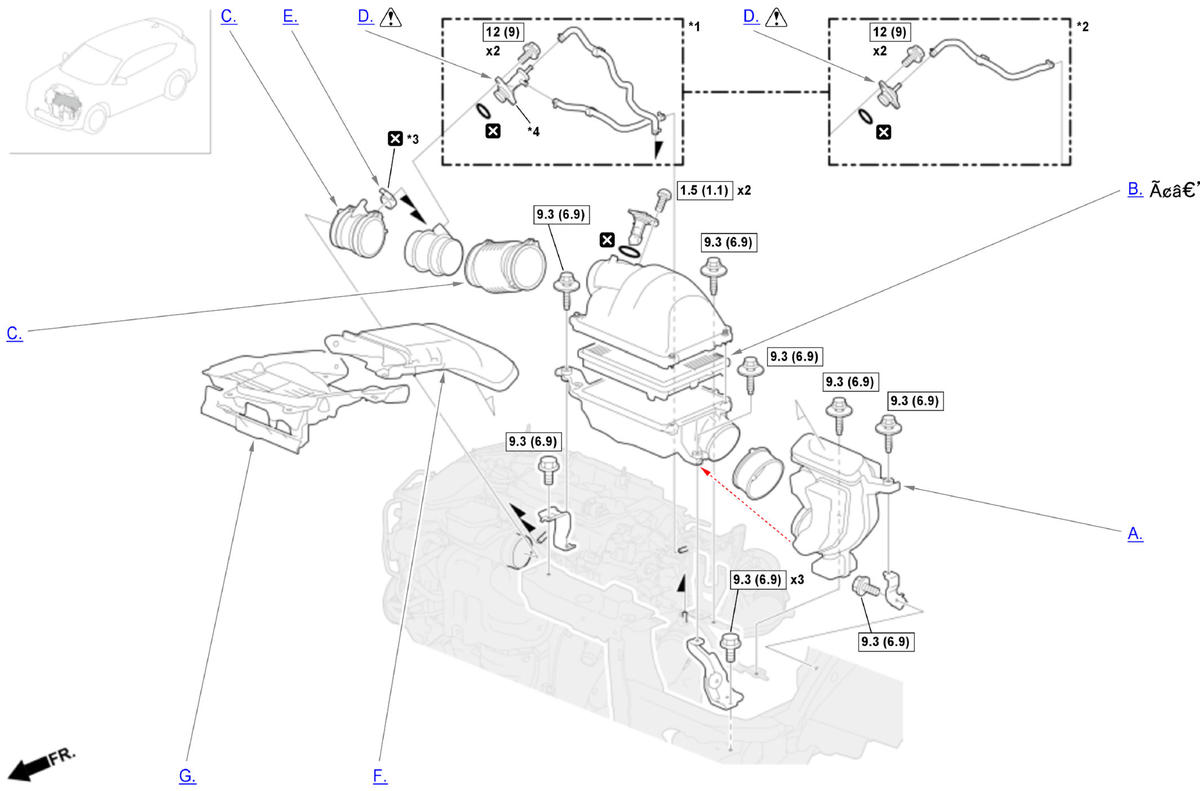

Fig 1: Air Cleaner Area Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)	: Replace	: Warning/Caution	: Inspection/Adjustment	*: Learning	■: SPL Tool	: Required Removal
1: USA and Canada models. 2: Mexico models 3: Replace it, if the break head band was used 4: The appearance and structure of the actual parts may vary depending on the model.
