Repair Procedure: Notes

How to use this Service Information .

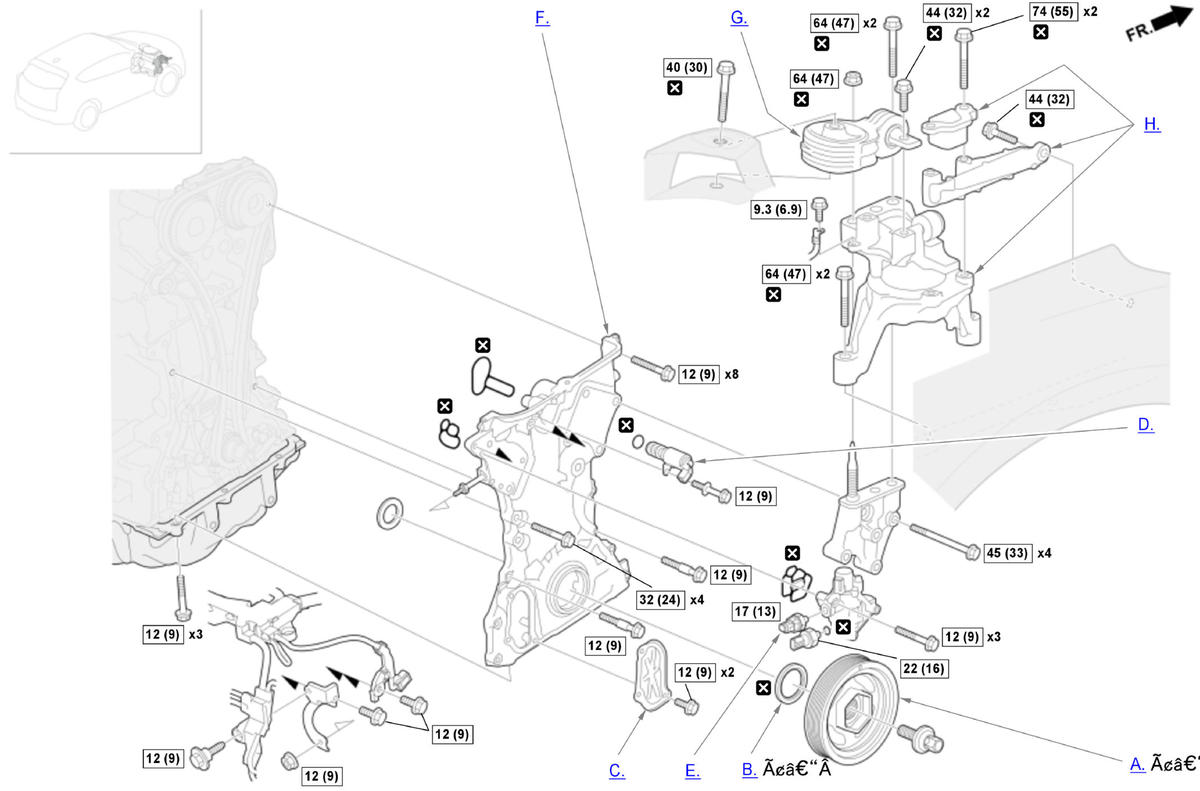

Fig 1: Chain Case/Cam Chain Area Replacement Components With Torque Specifications (1 Of 2)
GHH554263Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal

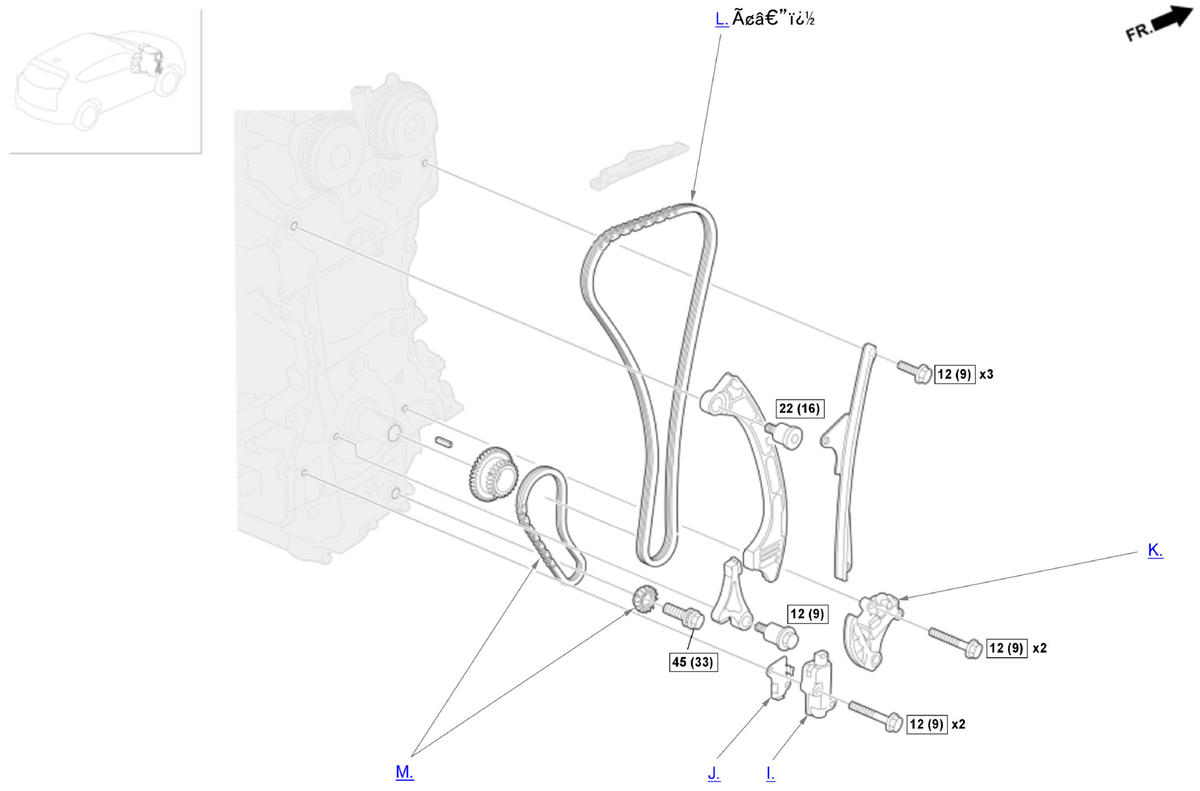

Fig 2: Chain Case/Cam Chain Area Replacement Components With Torque Specifications (2 Of 2)
GHH554264Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal
