Repair Procedure: Notes

How to use this Service Information .

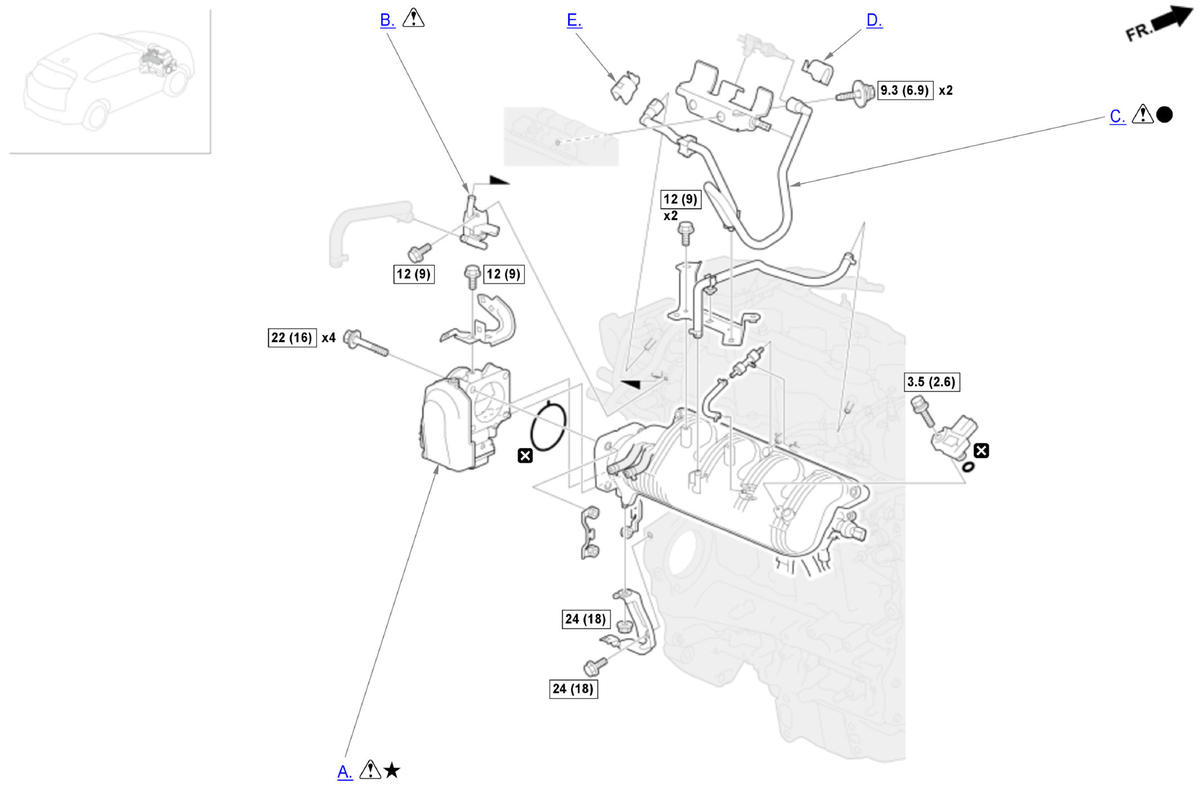

Fig 1: Intake Manifold Area Replacement Components With Torque Specifications (1 Of 2)
GHH339871Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal

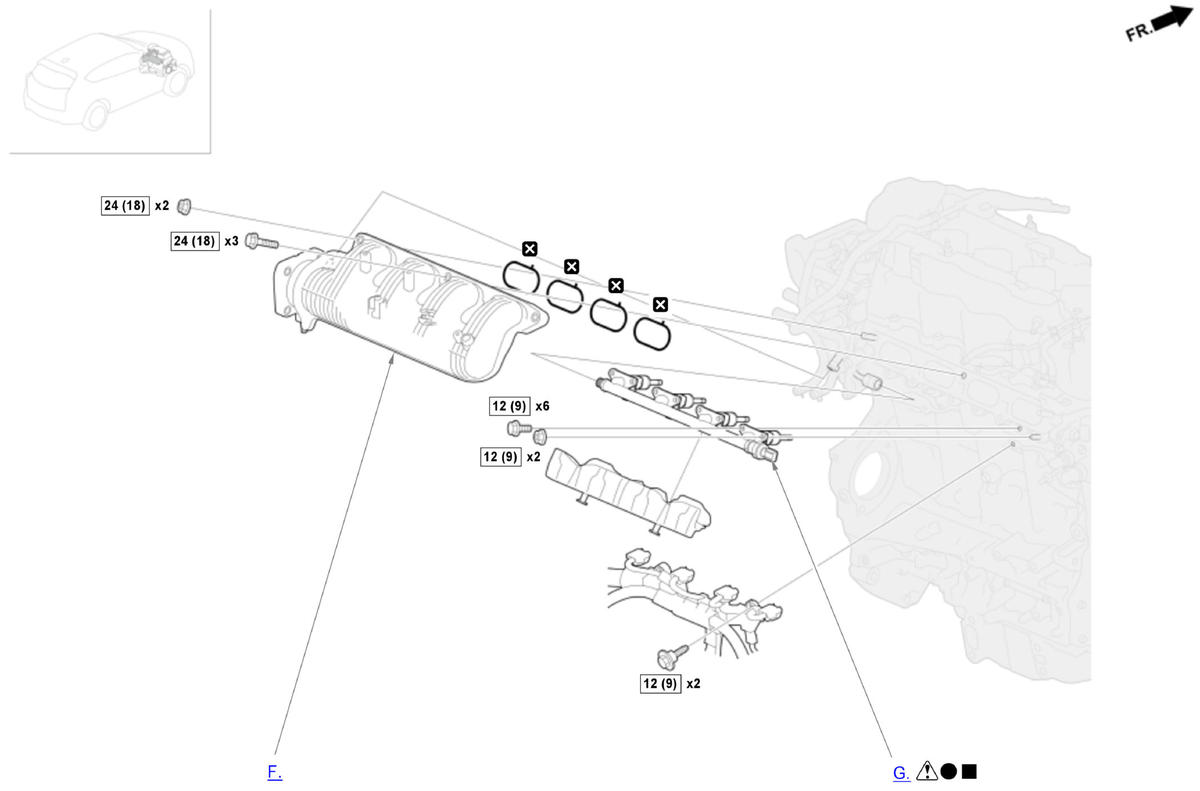

Fig 2: Intake Manifold Area Replacement Components With Torque Specifications (2 Of 2)
GHH339872Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal

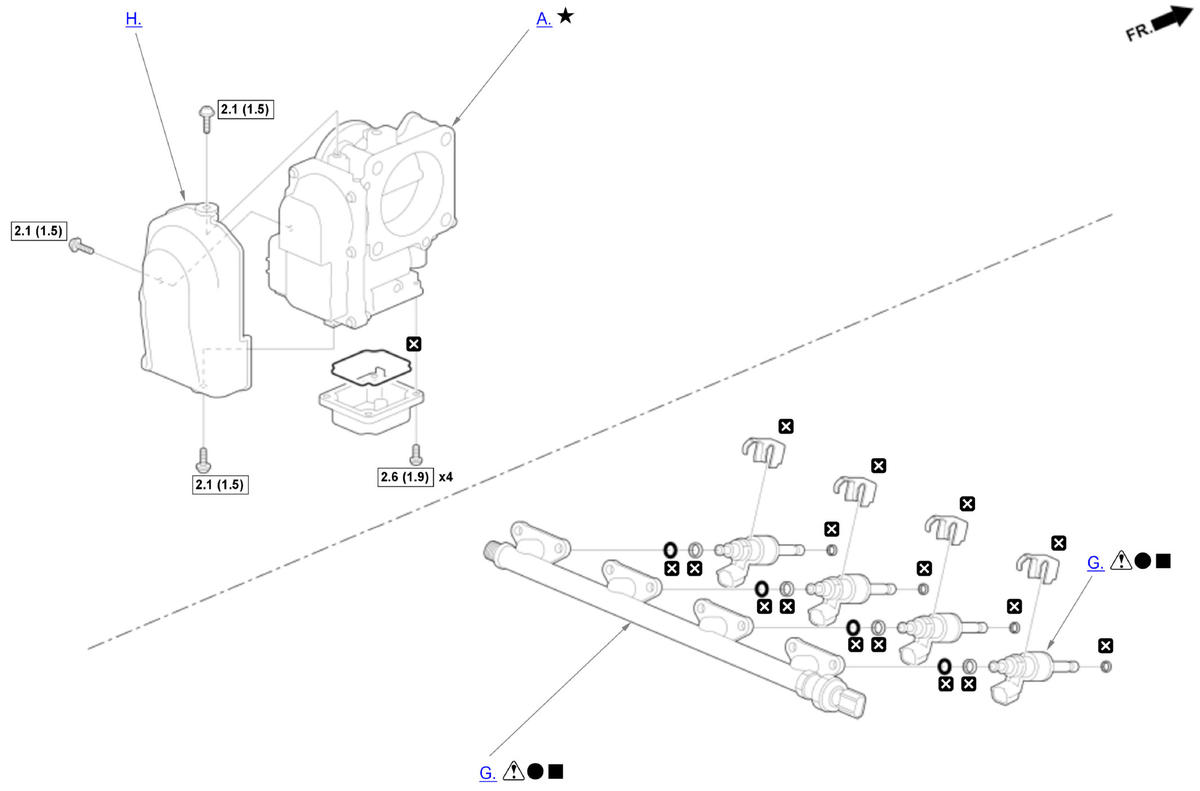

GHH339873Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal
