Unit Check (Quick Check): Display

This diagnosis checks the digital bus (LVDS) connection between the infotainment control unit and the center display unit.

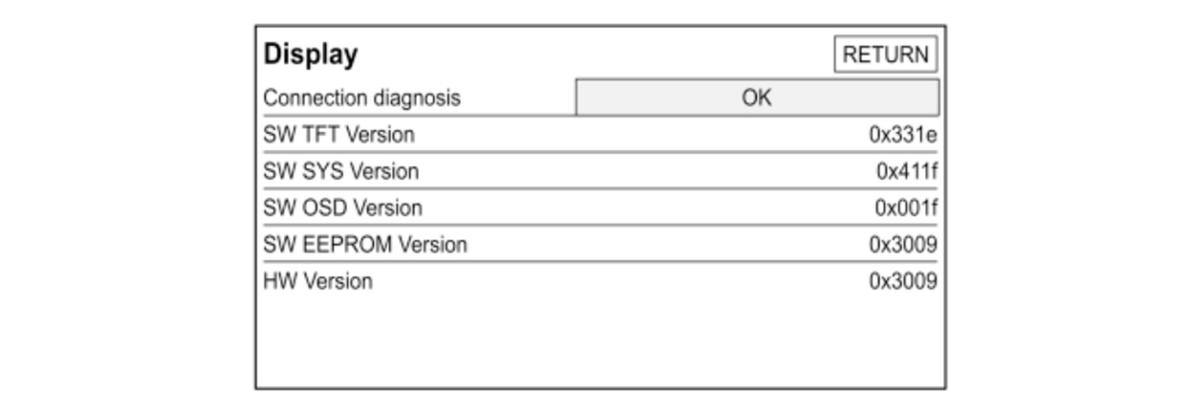

When the Connection diagnosis is OK, the information of the center display unit is displayed.
