Security System / Keyless Entry System - Testing & Troubleshooting
›
Circuit Diagram
›

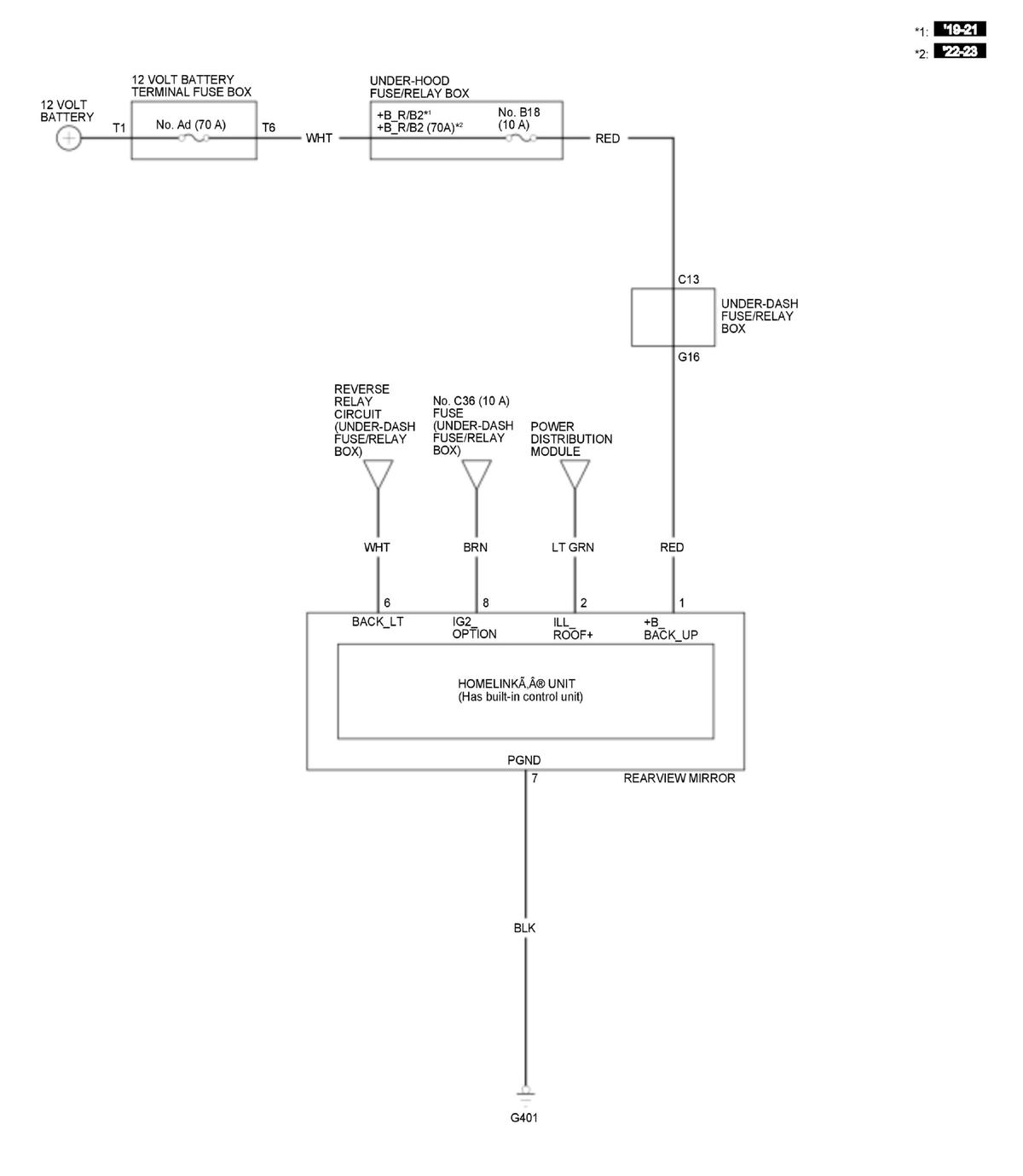

HomeLink Remote Control System Circuit Diagram
HomeLink Remote Control System Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
