1. VSA OFF Switch - Test

   Preconditions

   • VSA OFF Switch Removed

   Figure 1 (4P connector type)

   Courtesy of HONDA, U.S.A., INC.

   Figure 2 (4P connector type)

   Courtesy of HONDA, U.S.A., INC.

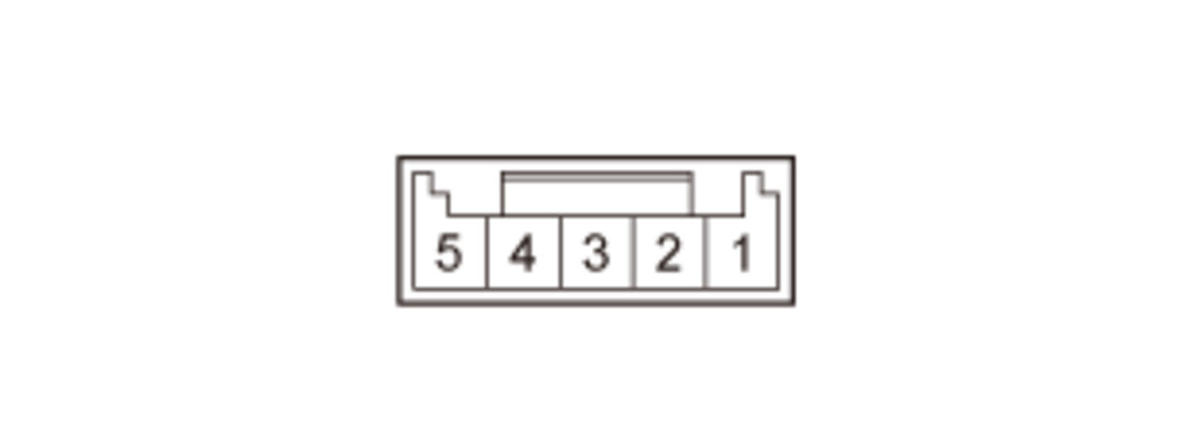

   Figure 3 (5P connector type)

   Courtesy of HONDA, U.S.A., INC.

   Figure 4 (5P connector type)

   Courtesy of HONDA, U.S.A., INC.

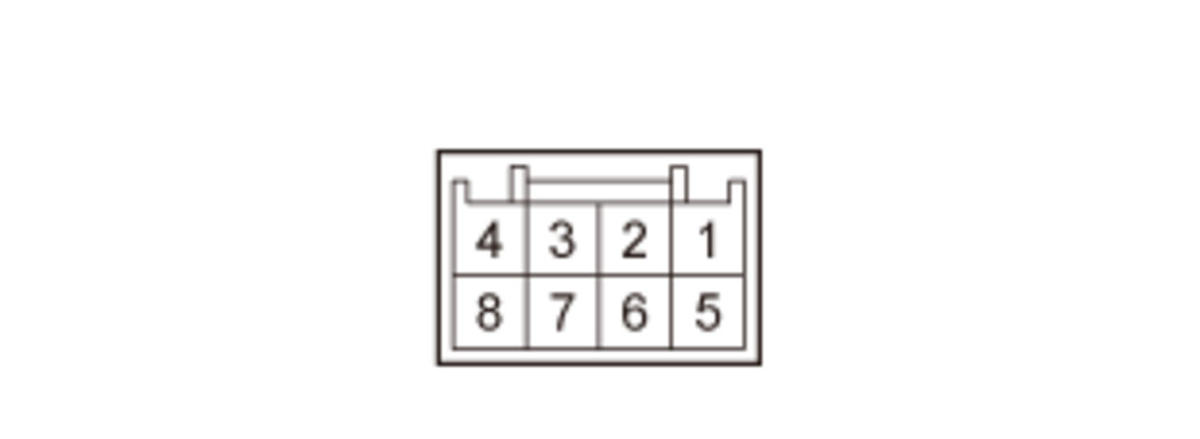

   Figure 5 (8P connector type)

   Courtesy of HONDA, U.S.A., INC.

   Figure 6 (8P connector type (VSA OFF switch located right side type))

   Courtesy of HONDA, U.S.A., INC.

   Figure 7 (8P connector type (VSA OFF switch located lower side type))

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1, 2, 3, 4, 5, 6, and 7)
   NOTE:

   • When an LED is located between terminals, check if the LED lights by connecting power and ground to the LED.
   • Remember this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

   Result

   • If the result is not as specified, replace the VSA OFF switch.
