System Description
Overview
The VSA system stabilizes the vehicle behavior by controlling the braking force and engine torque.
Control Unit Operation

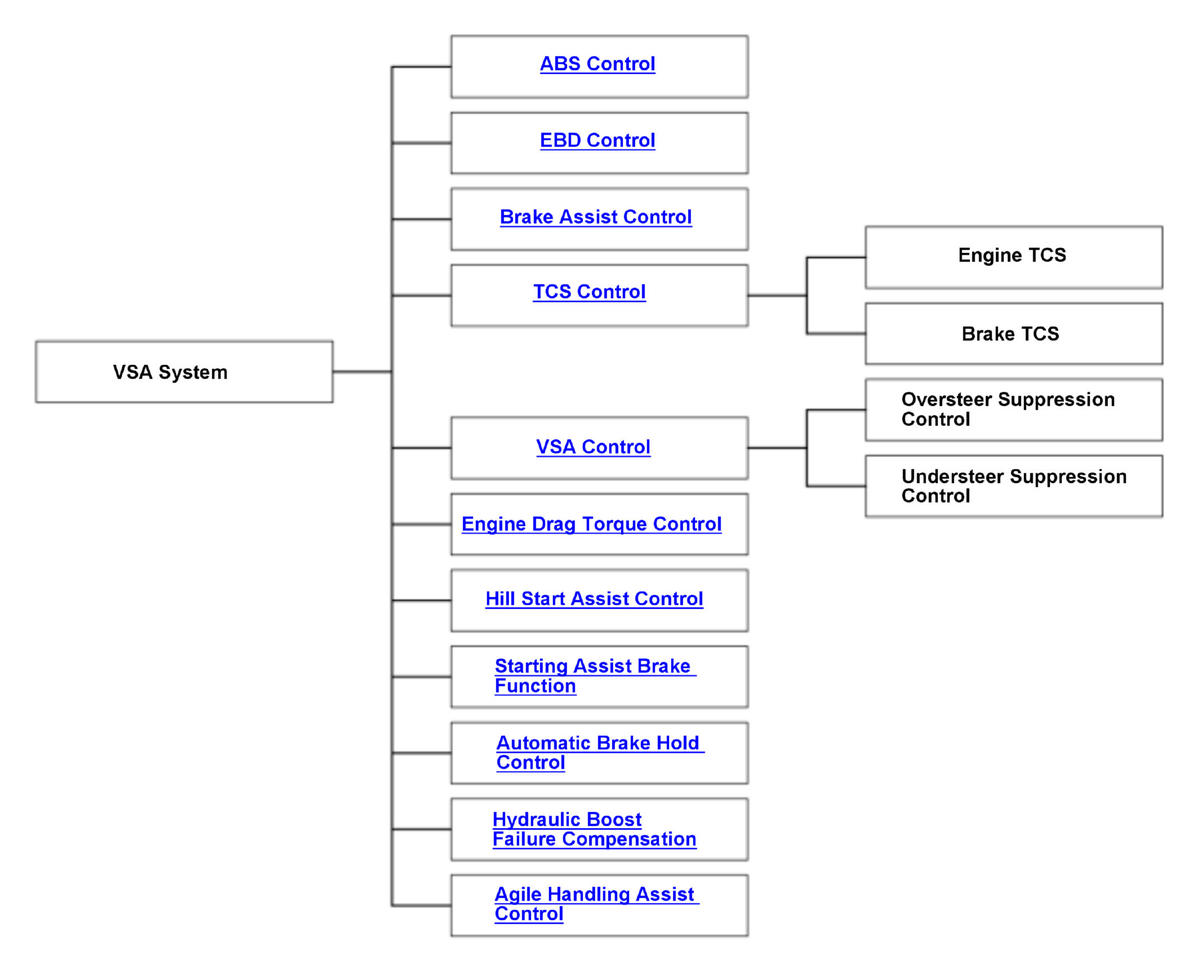

The VSA system performs the following controls. Also the VSA system performs brake control for the ACC and the CMBS.
Integrated Dynamics System
The TCS control is changed by the integrated dynamics system mode.
| VSA System | Integrated Dynamics System Mode | |||
|---|---|---|---|---|
| SNOW | COMFORT | SPORT *1NORMAL *2 | SPORT+ *1SPORT *2 | |
| TCS Control | Sense of security-oriented. Starting performance optimized for 2nd gear start on low ' surfaces. | Sense of security-oriented. | ||
| *1:'19-21 *2:'22-23 |
||||
