System Diagram

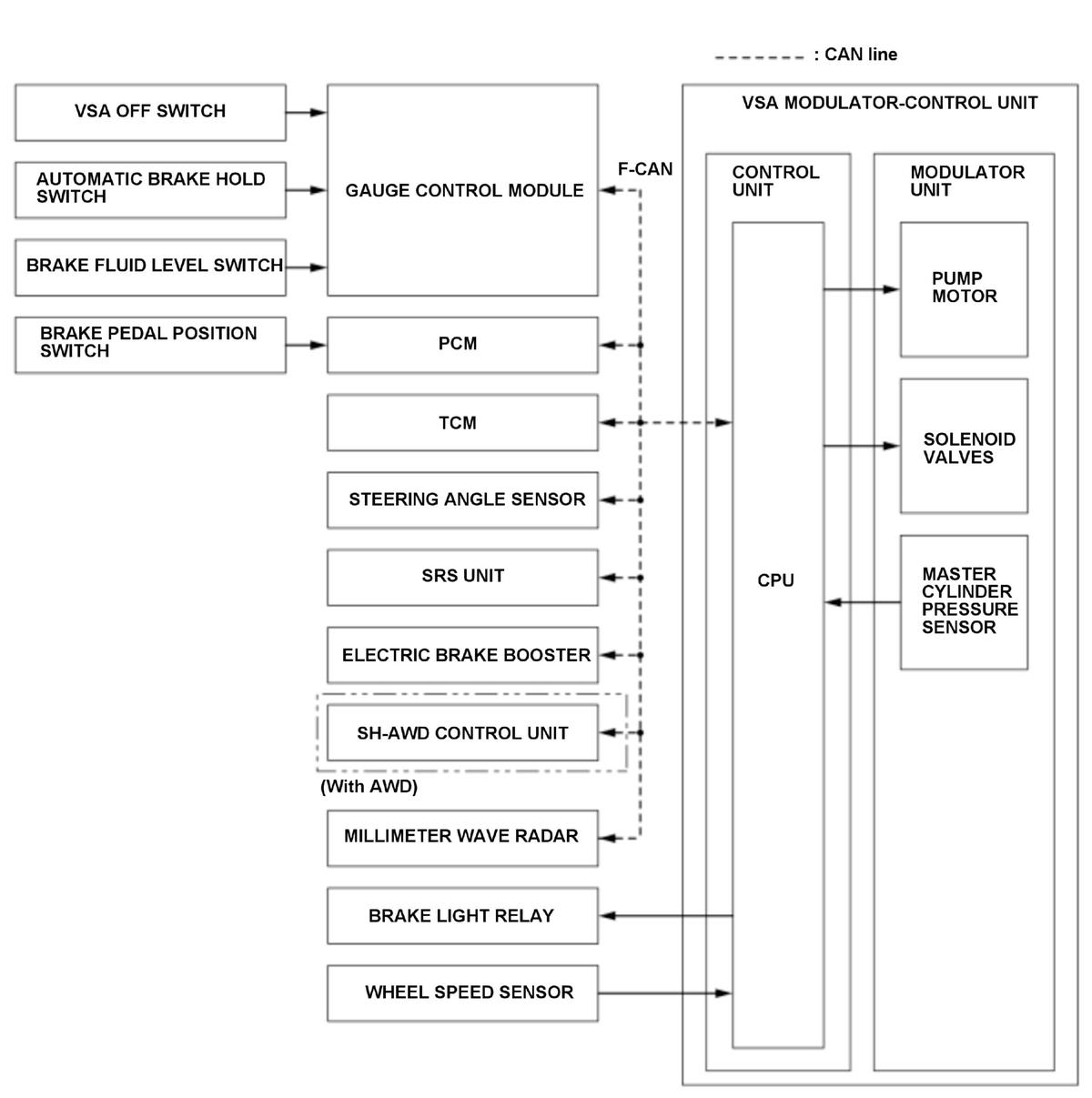

The system diagram of the VSA system is shown below.
For locations of each component on vehicle, refer to the Component Location Index:
- VSA modulator-control unit, Wheel speed sensor, Steering angle sensor, VSA OFF switch, Automatic brake hold switch
- PCM
- TCM
- Gauge control module, Brake fluid level switch
- SRS unit
- Electric brake booster
- SH-AWD control unit
- Brake pedal position switch, Brake light relay
- Millimeter wave radar - Refer to: Adaptive Cruise Control (ACC) Component Location Index
F-CAN Communication Data
VSA SYSTEM RECEIVING SIGNAL
| Transmitting Unit | Signal Name |
|---|---|
| PCM |
|
| TCM |
|
| Gauge control module |
|
| SRS unit |
|
| Steering angle sensor |
|
| Electric brake booster |
|
| SH-AWD control unit * |
|
| Millimeter wave radar |
|
| *: With AWD | |
VSA SYSTEM TRANSMITTING SIGNAL
| Transmitting Unit | Signal Name |
|---|---|
| VSA modulator-control unit |
|
| *1: With AWD *2:'22-23 |
|
