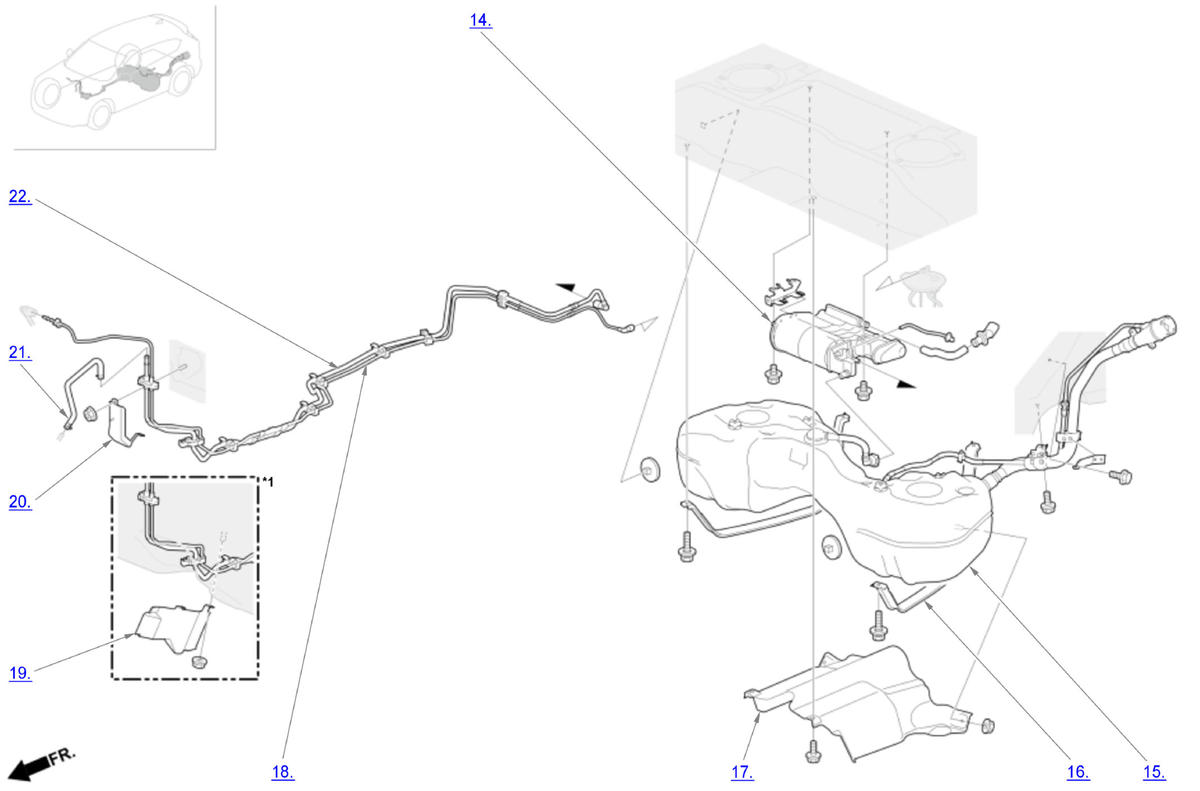

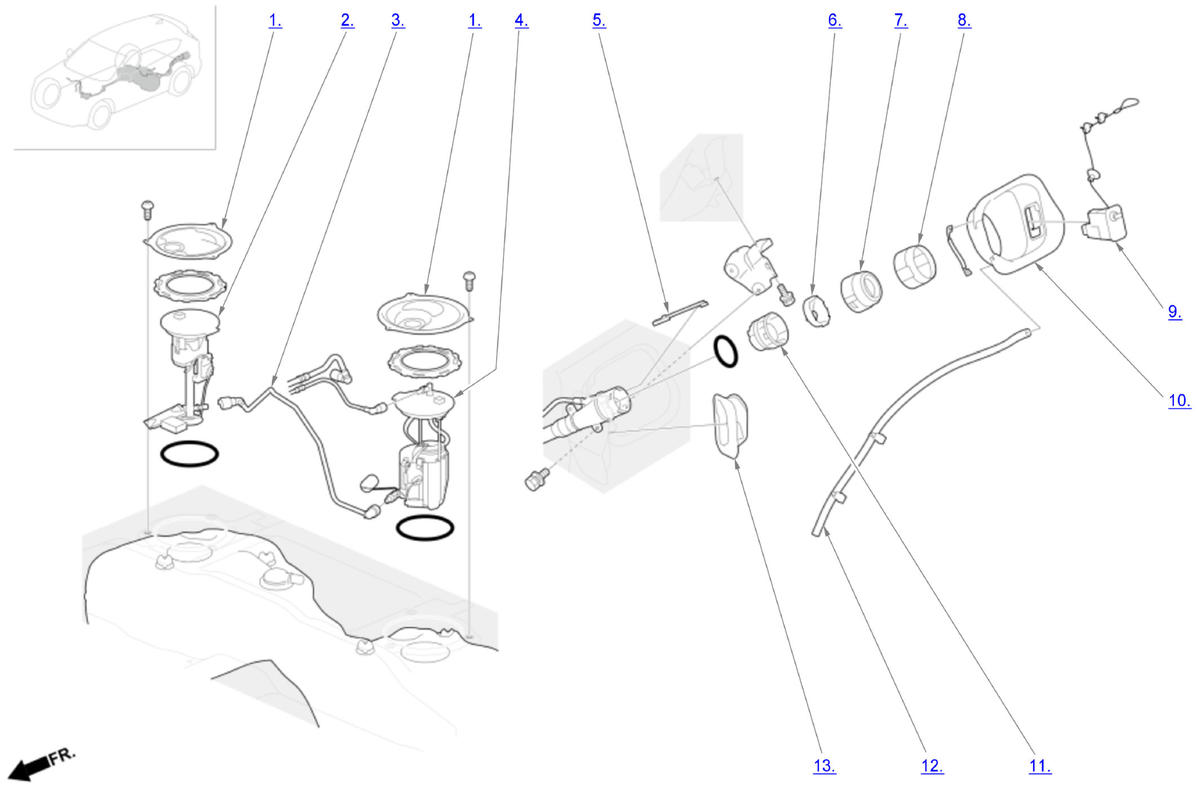

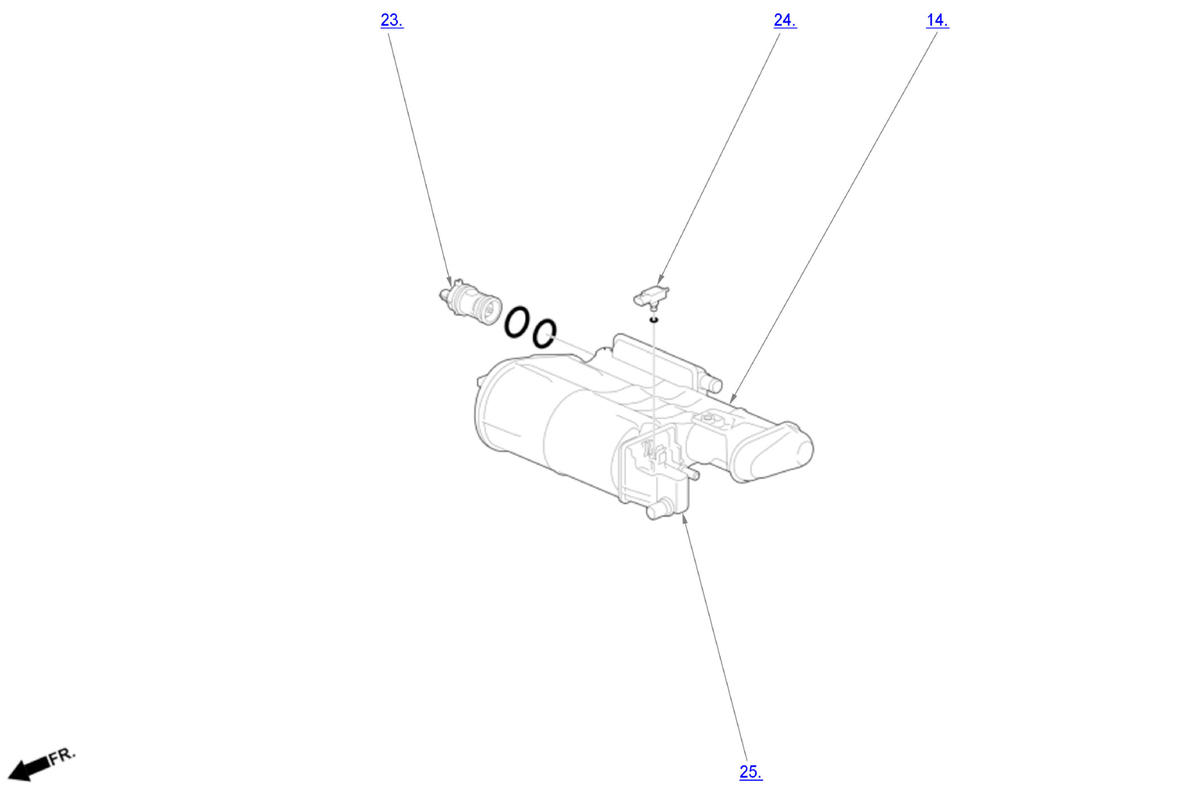

Exploded View
For replacement of components listed below, see Repair Procedure .
| *1: With AWD |
Fuel Tank Area Components
| Component Name | Callout |
|---|---|
| Access Panel | 1 |
| Secondary Fuel Gauge Sending Unit | 2 |
| Transfer Tube | 3 |
| Fuel Tank Unit | 4 |
| Retainer | 5 |
| Nozzle Setting Bracket | 6 |
| Mis-Fuel Inhibit Device | 7 |
| Rubber Cover | 8 |
| Fuel Fill Door Lock Actuator | 9 |
| Fuel Fill Door Adapter | 10 |
| Main Flap Unit | 11 |
| Drain Tube | 12 |
| Cover | 13 |
| Evaporative Emission (EVAP) Canister | 14 |
| Fuel Tank Assembly | 15 |
| Fuel Tank Strap | 16 |
| Fuel Tank Protector | 17 |
| Fuel Purge Pipe | 18 |
| Fuel Pipe Protector B | 19 |
| Fuel Pipe Protector A | 20 |
| Fuel Purge Hose | 21 |
| Fuel Feed Pipe | 22 |
| Evaporative Emission (EVAP) Canister Vent Shut Valve | 23 |
| FTP Sensor | 24 |
| Evaporative Emission (EVAP) Canister | 25 |
