Engine Lubrication System Description

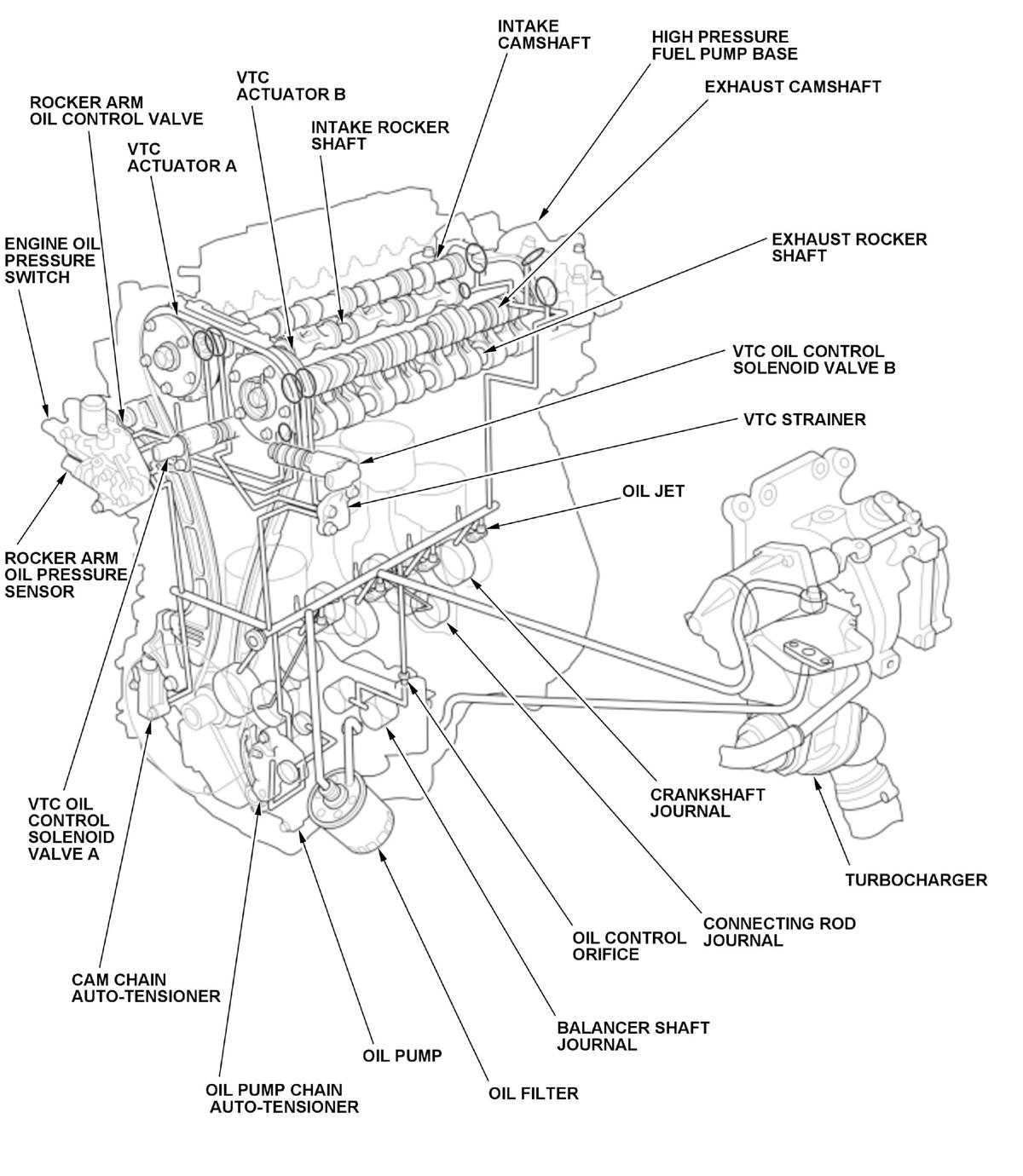

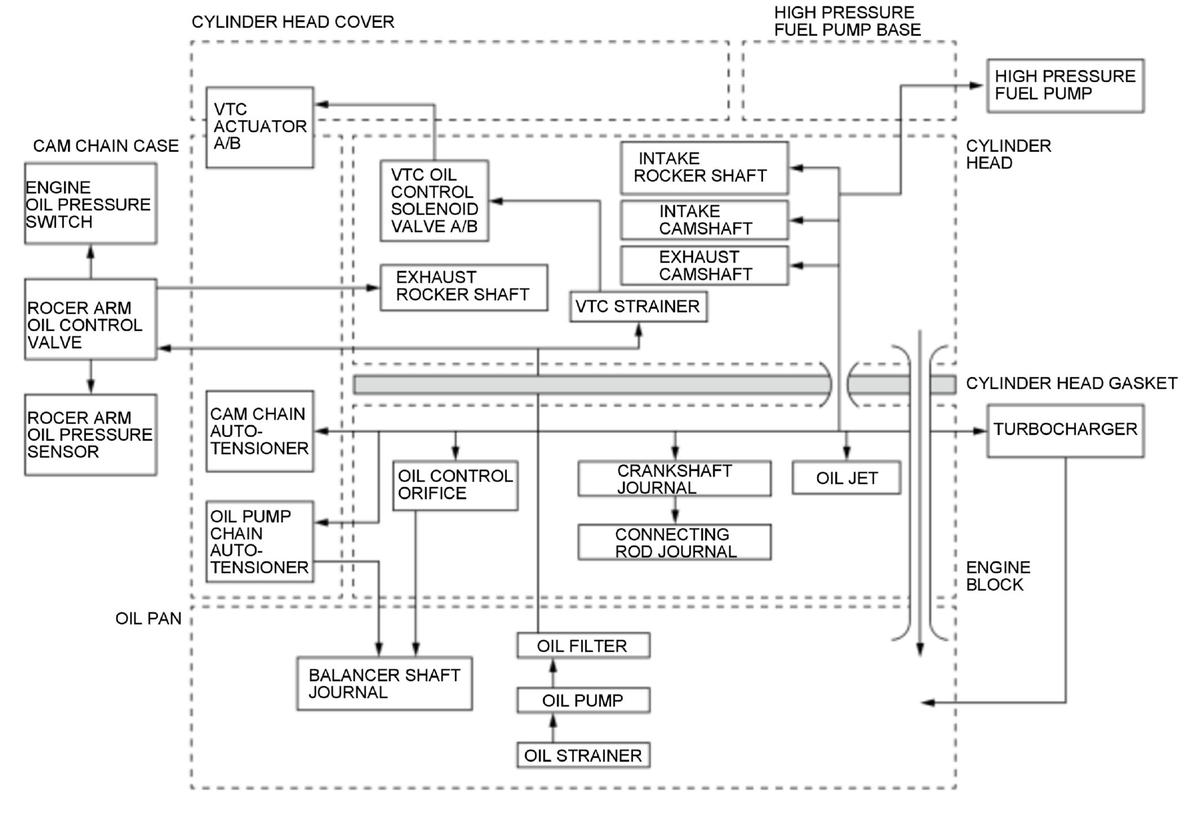

Hydraulic Circuit

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Engine Oil Monitor System

General Description

The engine oil monitor system informs the driver when the engine oil and/or the engine oil filter should be replaced by indicating a message on the gauge control module. .

• Item A: Replace engine oil.
• Item B: Replace engine oil and engine oil filter.

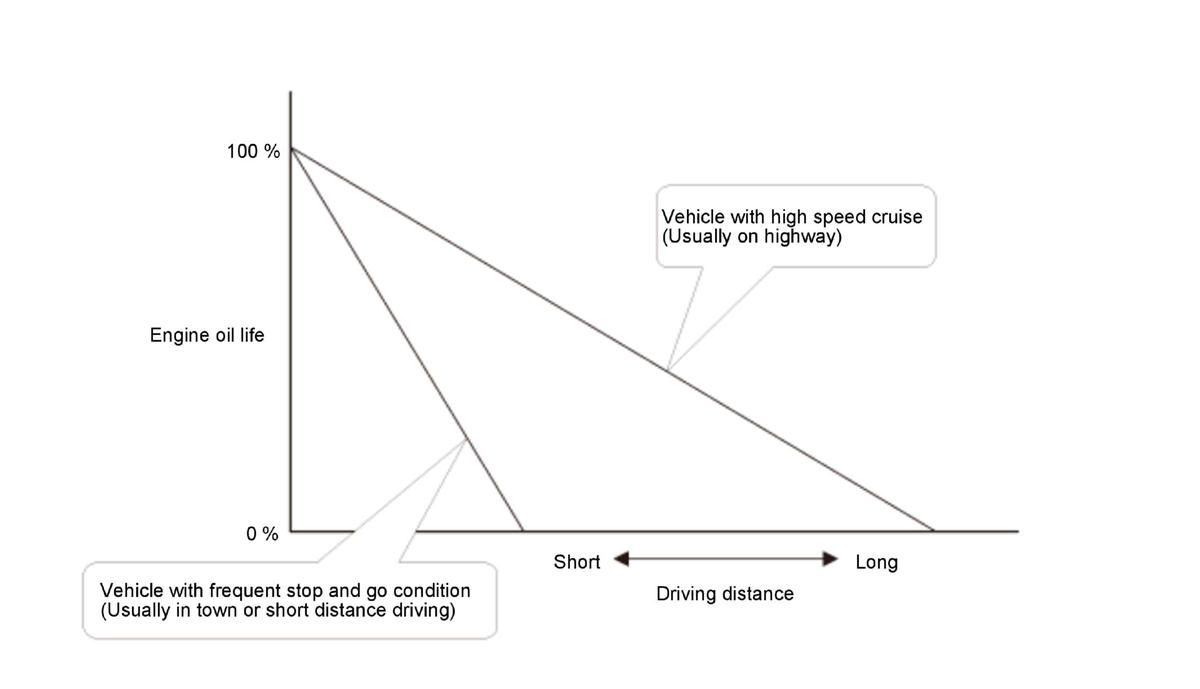

The PCM calculates the current driving condition, the engine load, and the appropriate engine oil replacement period. It then displays a message on the gauge control module according to the result of this calculation.

Courtesy of HONDA, U.S.A., INC.

Fail-Safe Action

If the PCM stores engine system DTC(s), it will not be able to properly calculate the current driving condition because of the fail-safe action. Instead, the PCM calculates a temporary driving condition in theory and determines a replacement period earlier than normal with a caution display on the gauge control module. .
