Engine Oil Replacement: Replacement

How to use this Service Information .

1. Engine Oil - Replacement

   ■ Preconditions

   • Engine Warmed Up
   • Right Engine Undercover Lid Removed

   Courtesy of HONDA, U.S.A., INC.

   ■ Procedure/Specifications

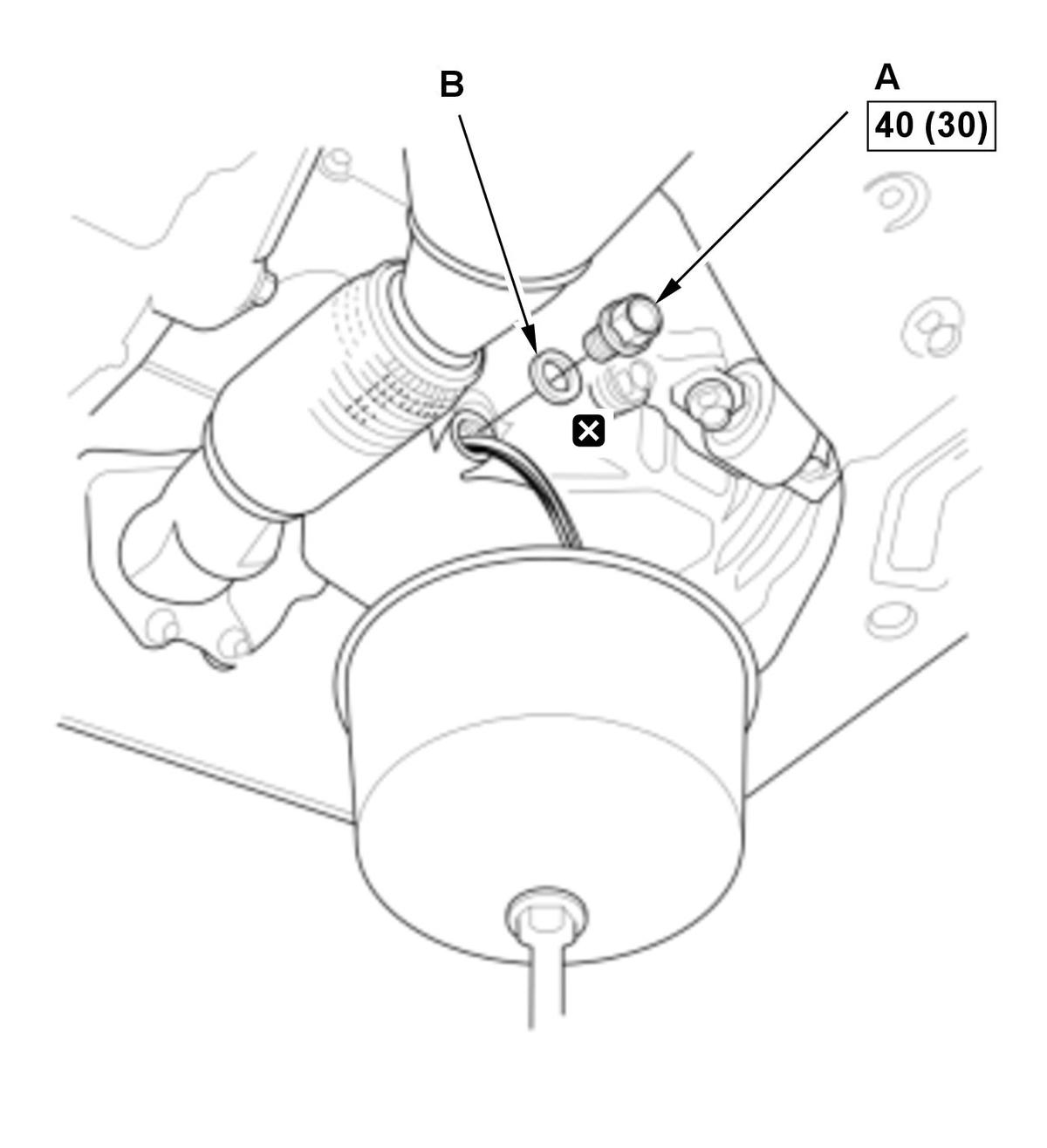

   1. Remove the bolt (A), and drain the oil.

   2. Reinstall the bolt with a new washer (B) and torque to specification.

   3. Refill the engine with the recommended oil. - Refer to: Lubricants and Fluids(USA/Canada models) (2023) or Lubricants and Fluids

   Engine Oil Capacity

   Operation	Specifications
   At Oil Change	4.4 L (4.6 US qt)
   At Oil Change including Filter	4.8 L (5.1 US qt)
   After Engine Overhaul	6.0 L (6.3 US qt)

   ■ After Replacement

   • Engine Oil Level Check - Refer to: Engine Oil Level Check  or Engine Oil Replacement

   Maintenance Minder™ Reset (With Maintenance Minder™ System)

   • If the Maintenance Minder™ requires the engine oil to be replaced, reset the Maintenance Minder™ with the gauge (see "Resetting the Maintenance Minder™"). If the Maintenance Minder™ did not require the engine oil to be replaced, reset the Maintenance Minder™ with the HDS (see "Resetting the Individual Maintenance Items").
