Retainer Replacement

A disconnected quick-connect fitting can be reconnected, but replace the retainer (A) (Figure 1) when:

the retainer is damaged.
the retainer has been removed from the line.
replacing a new part that does not include the retainer. (a fuel line, a fuel tank unit etc.)

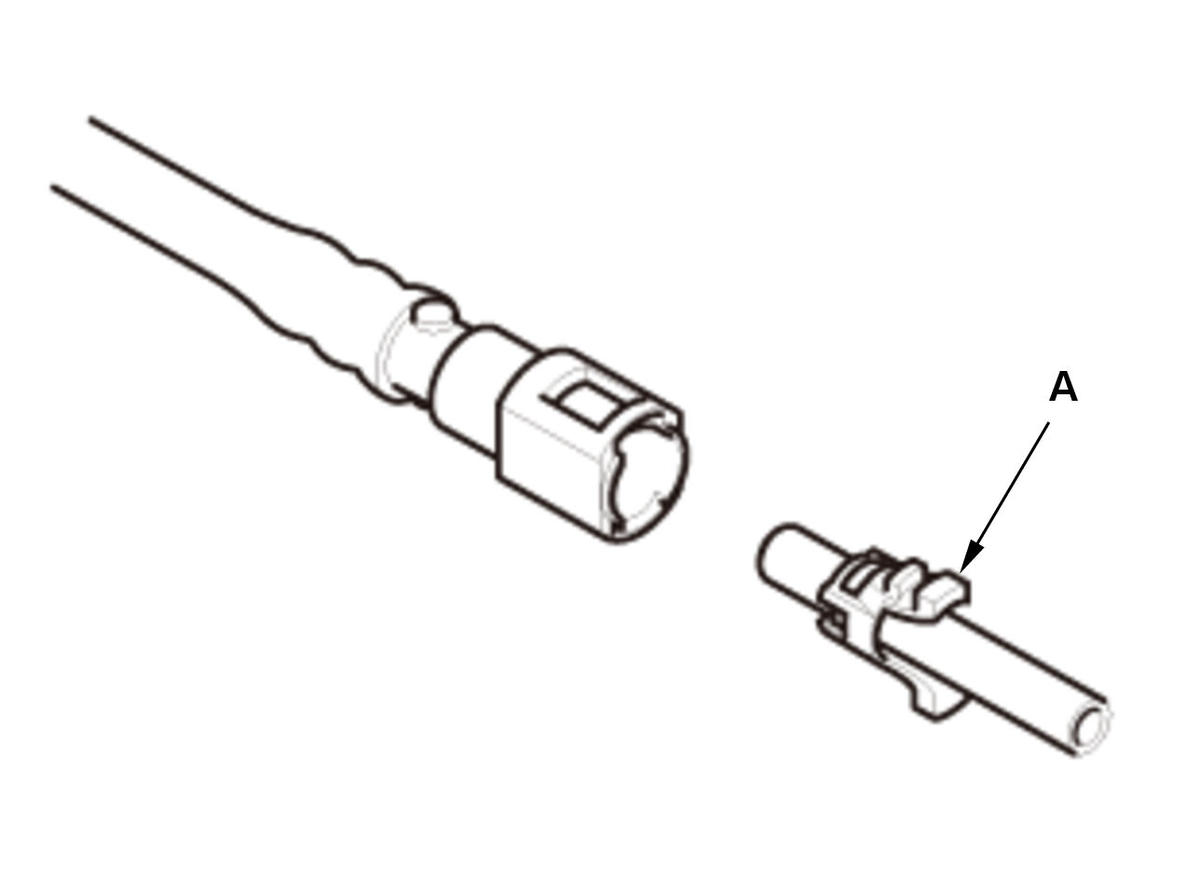

Figure 1

Courtesy of HONDA, U.S.A., INC.

NOTE: Use the same manufacturer retainer and the same size retainer when replacing.

Retainer Details (Figure 2, 3, 4, and 5)

Location	Manufacturer	Retainer Color	Piping Diameter	Remarks
Fuel Feed Hose (B)	Tokai	Blue Green	8.0 mm (0.315 in)
Fuel Tank Unit (C)	Sanoh	White	9.5 mm (0.374 in)
Transfer Tube (D)	Sumitomo Riko	Natural	12 mm (0.47 in)
EVAP Canister (E)	Sanoh	White	12 mm (0.47 in)	USA and Canada Models

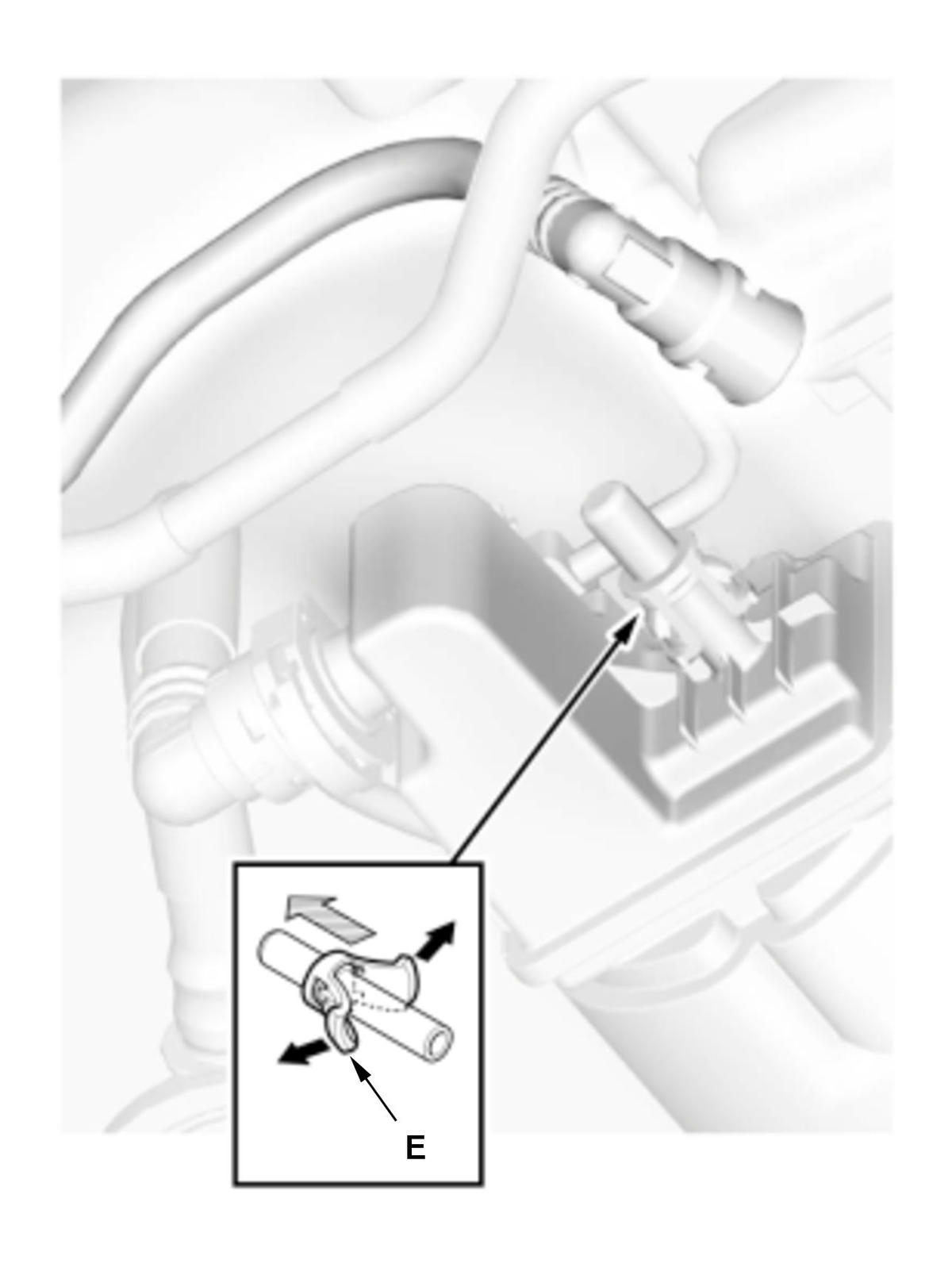

Figure 2

Courtesy of HONDA, U.S.A., INC.

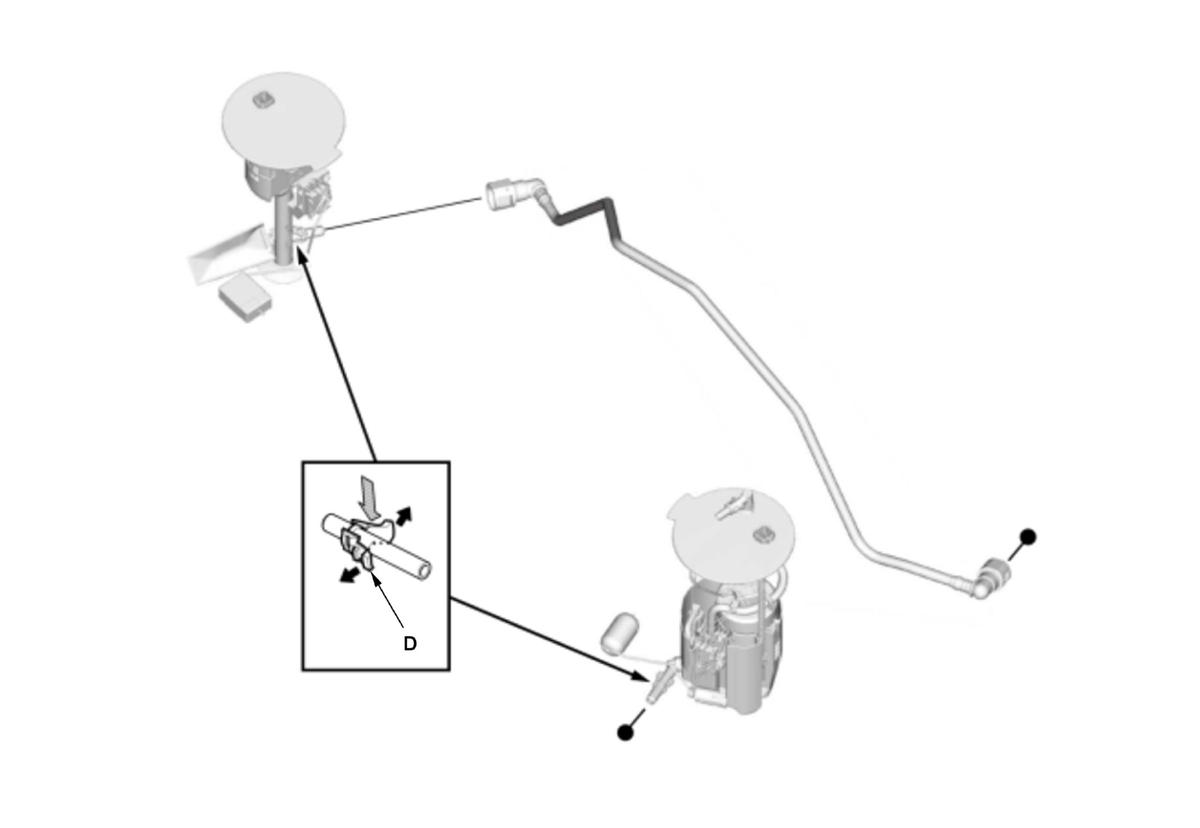

Figure 3

Courtesy of HONDA, U.S.A., INC.

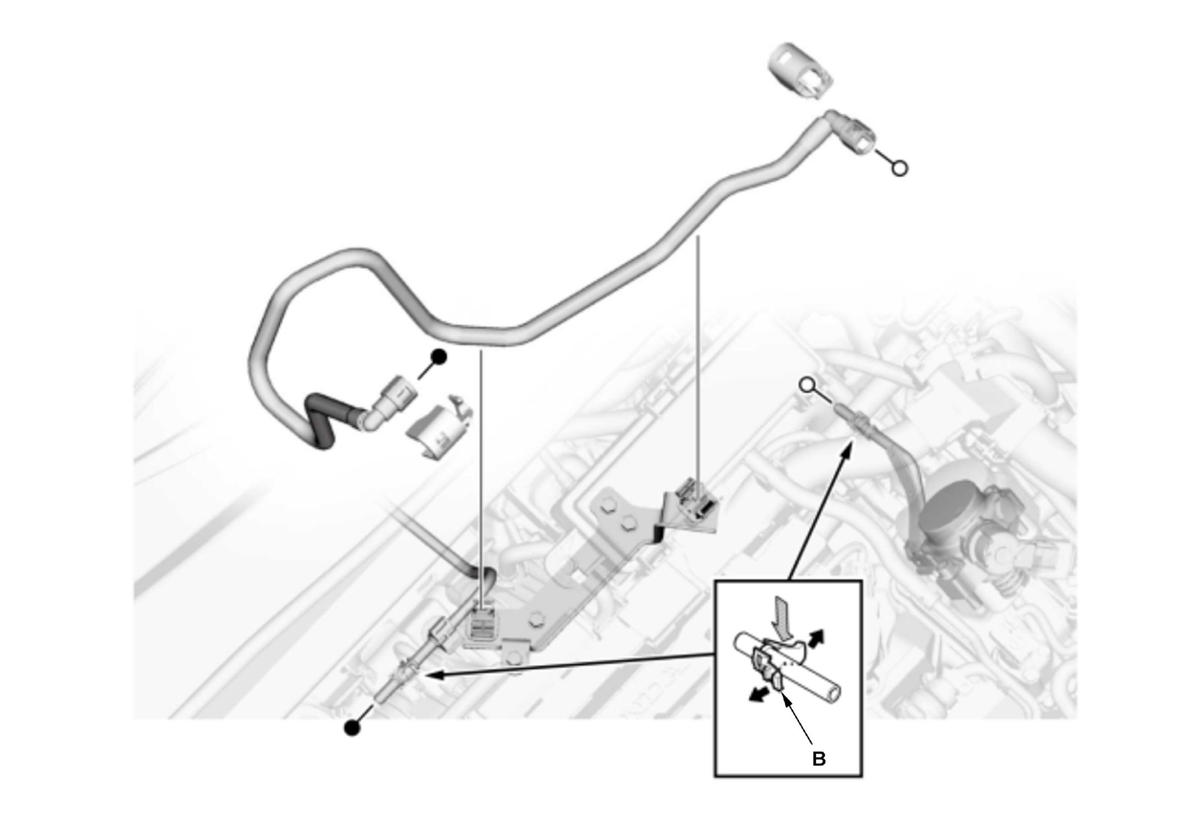

Figure 4

Courtesy of HONDA, U.S.A., INC.

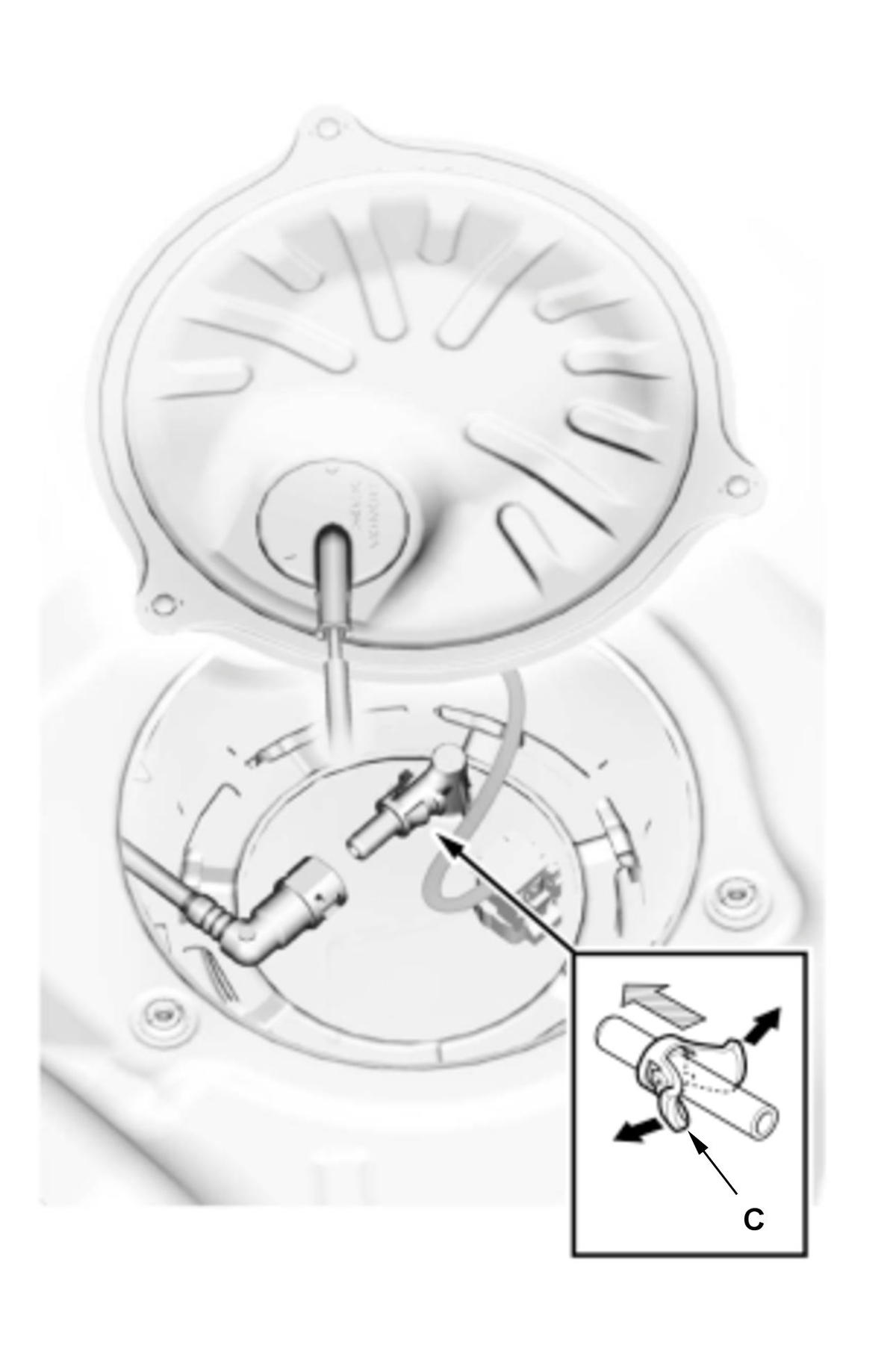

Figure 5

Courtesy of HONDA, U.S.A., INC.
