Repair Procedure: Notes

How to use this Service Information .

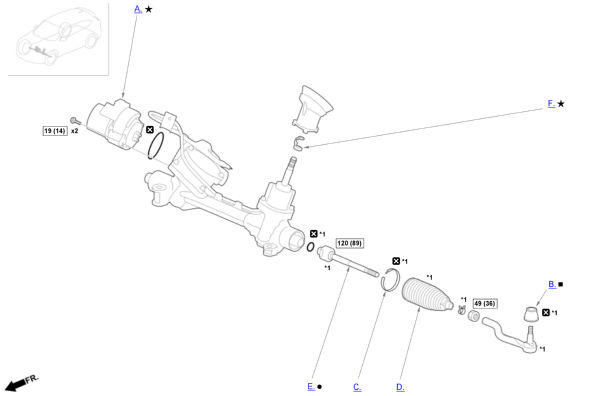

Fig 1: Steering Gearbox Replacement Components With Torque Specifications 2019-25 Steering
GHH340399Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal
*1: Part(s) are shown for one side only as the procedure is the same for both sides.
