Adaptive Damper Control Unit Connector for Inputs and Outputs

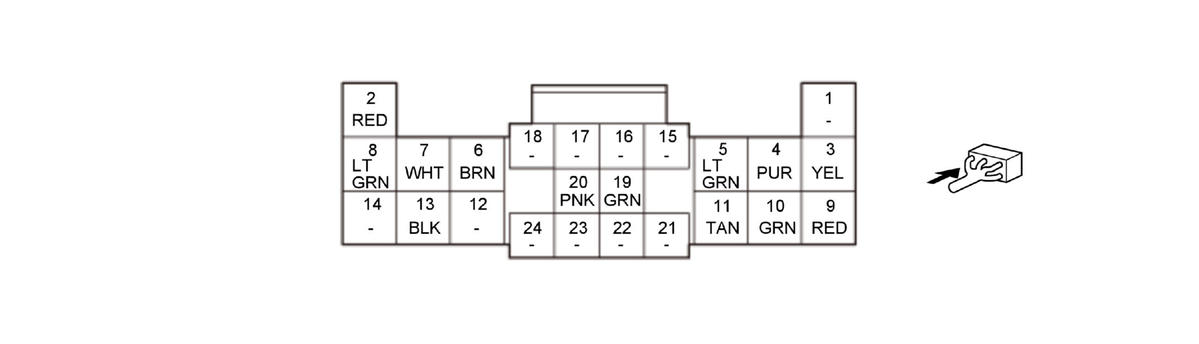

Adaptive Damper Control Unit 24P Connector (female terminals)
| Terminal Number | Terminal sign | Description |
|---|---|---|
| 1 | Not used | --- |
| 2 | IG1_VSA(VST) | Power source for the adaptive damper control unit |
| 3 | ADS_COIL_OUT_FL_H | Drives left-front damper coil |
| 4 | ADS_COIL_OUT_FL_L | Ground for the left-front damper coil |
| 5 | ADS_COIL_OUT_RL_H | Drives left-rear damper coil |
| 6 | ADS_COIL_OUT_RR_L | Ground for the right-rear damper coil |
| 7 | ADS_COIL_OUT_RR_H | Drives right-rear damper coil |
| 8 | +B_ADS | Power source for the fail-safe relay |
| 9 | ADS_COIL_OUT_FR_L | Ground for the right-front damper coil |
| 10 | ADS_COIL_OUT_FR_H | Drives right-front damper coil |
| 11 | ADS_COIL_OUT_RL_L | Ground for the left-rear damper coil |
| 12 | Not used | --- |
| 13 | GND | Ground for the adaptive damper control unit |
| 14 | Not used | --- |
| 15 | Not used | --- |
| 16 | Not used | --- |
| 17 | Not used | --- |
| 18 | Not used | --- |
| 19 | F-CAN C_H | F-CAN communication circuit |
| 20 | F-CAN C_L | F-CAN communication circuit |
| 21 | Not used | --- |
