Adaptive Damper System Description - Components
Components
The adaptive damper system consists of the following primary components:
- Adaptive damper control unit
- Adaptive damper units
- System warning
For locations of each component on vehicle, refer to Component Location Index , and for indicator functions, refer to How to Troubleshoot the Adaptive Damper System .

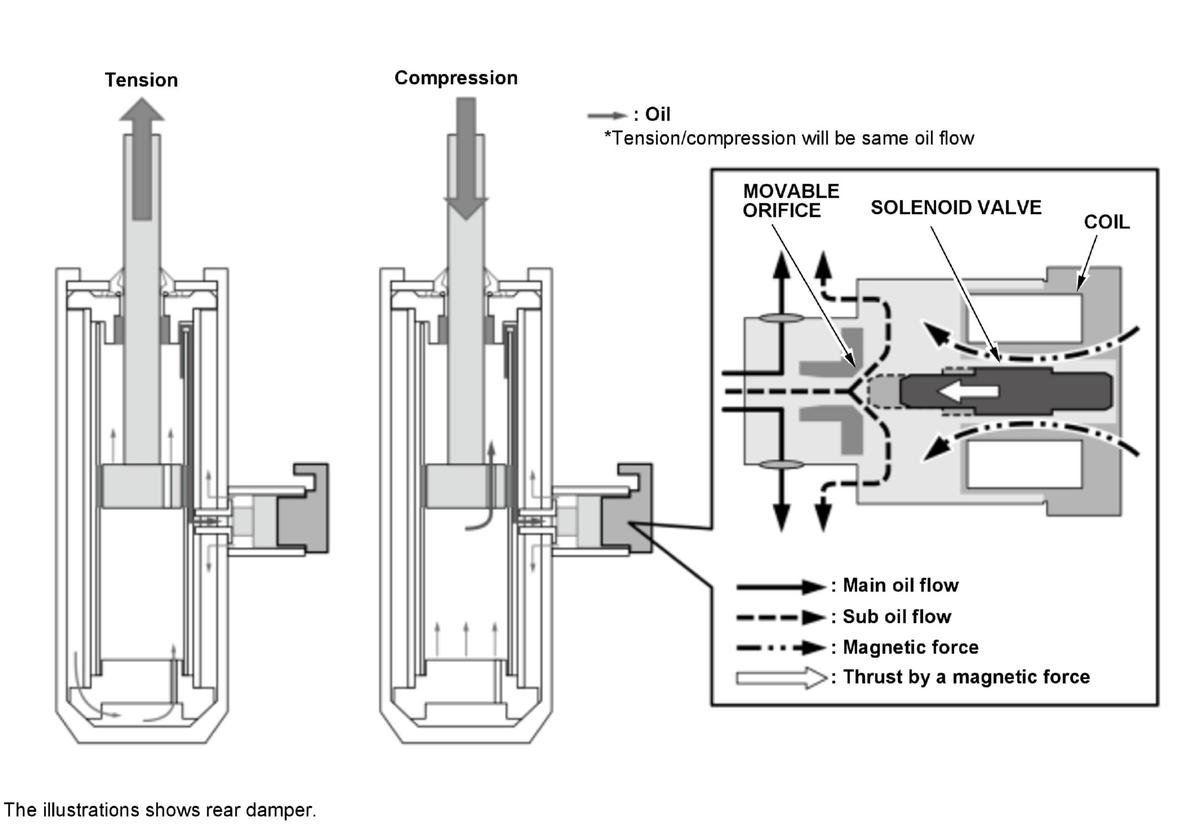

Damper Unit
The adaptive damper passes the electric current that has been adjusted by the adaptive damper control unit, to the coil to operate the valves. The solenoid valves open depending on the amount of electric current. Since the amount of oil changes depending on the driving condition, an optimal damping force can be generated.
