Repair Procedure

How to use this manual .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

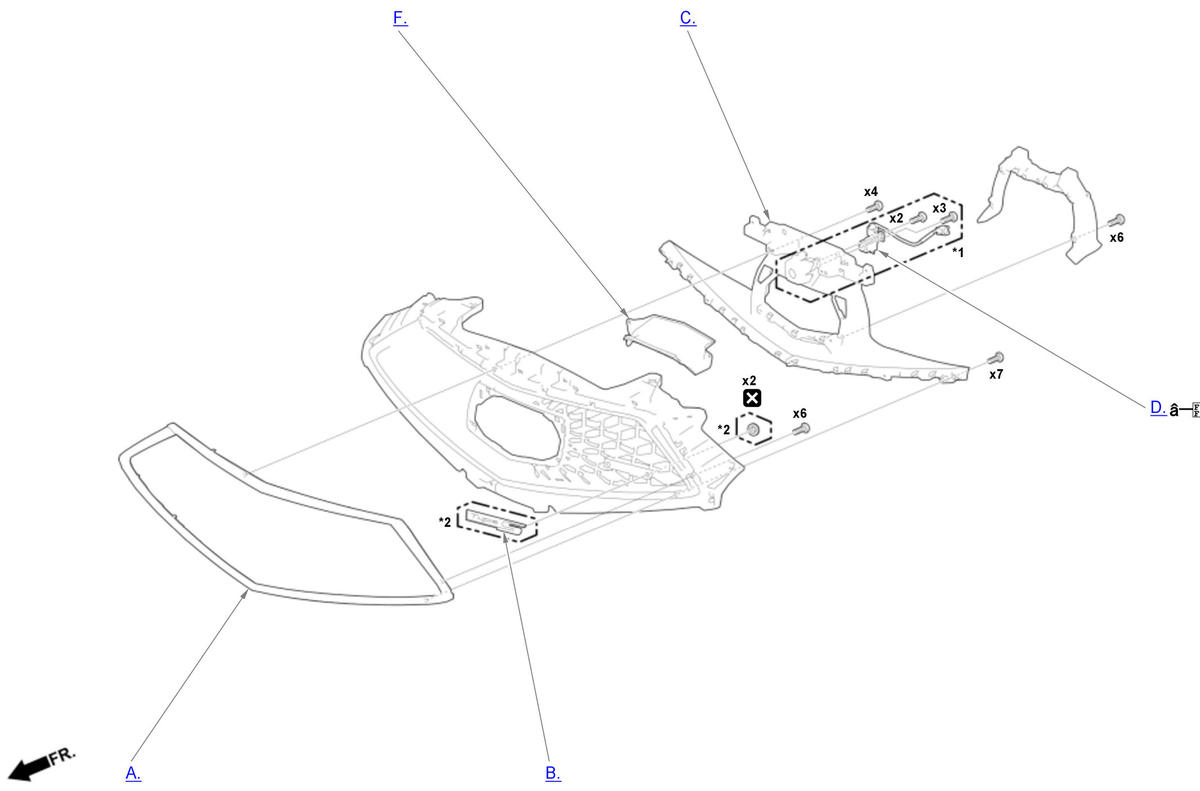

1. A.-

   NOTE:  The front grille molding can be removed without removing the front bumper.

   Sub-Procedure

   Removal

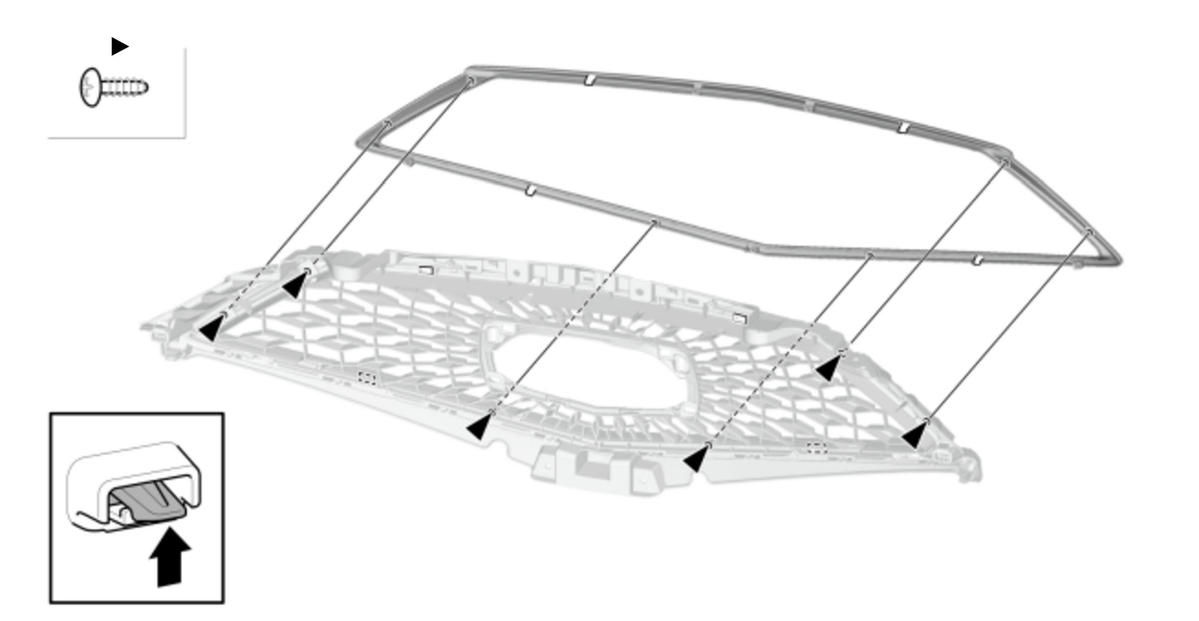

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

2. B.-

   NOTE:  The front Type S emblem can be removed without removing the front bumper.

   Sub-Procedure

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Removal

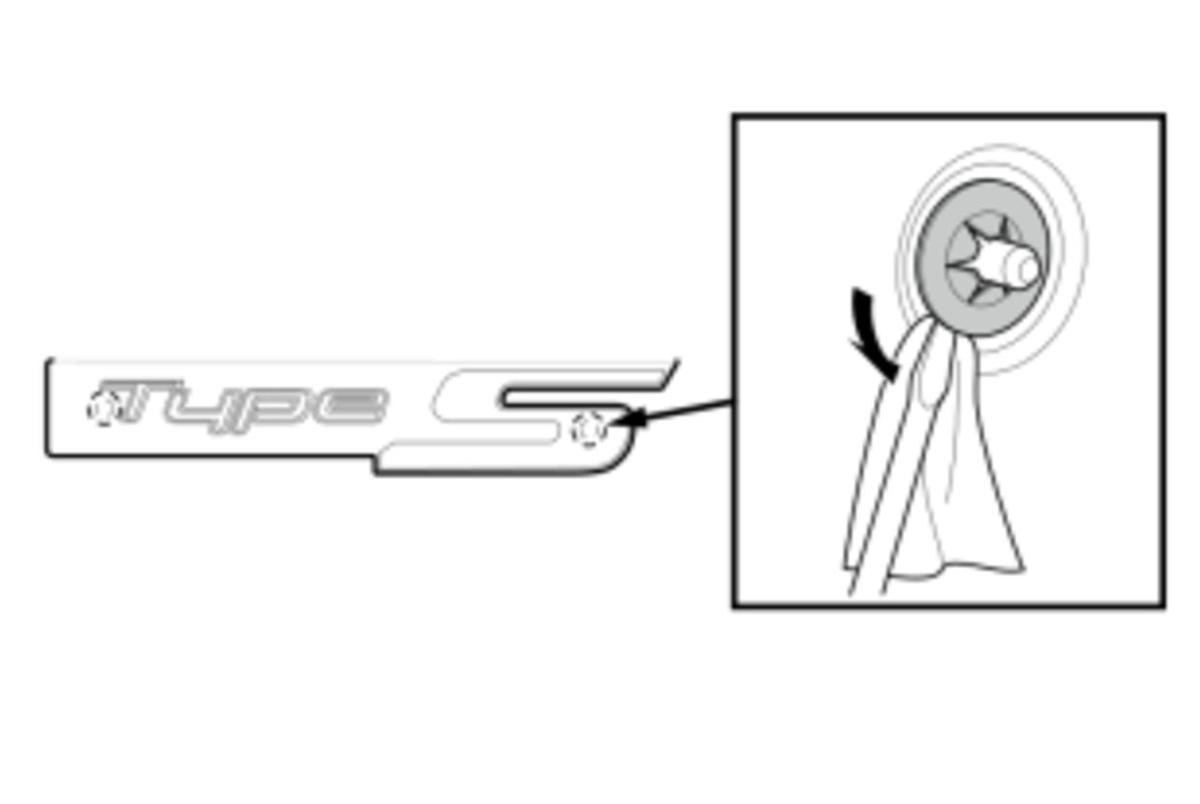

   • Refer to the figure 1.

   Figure 2

   Installation

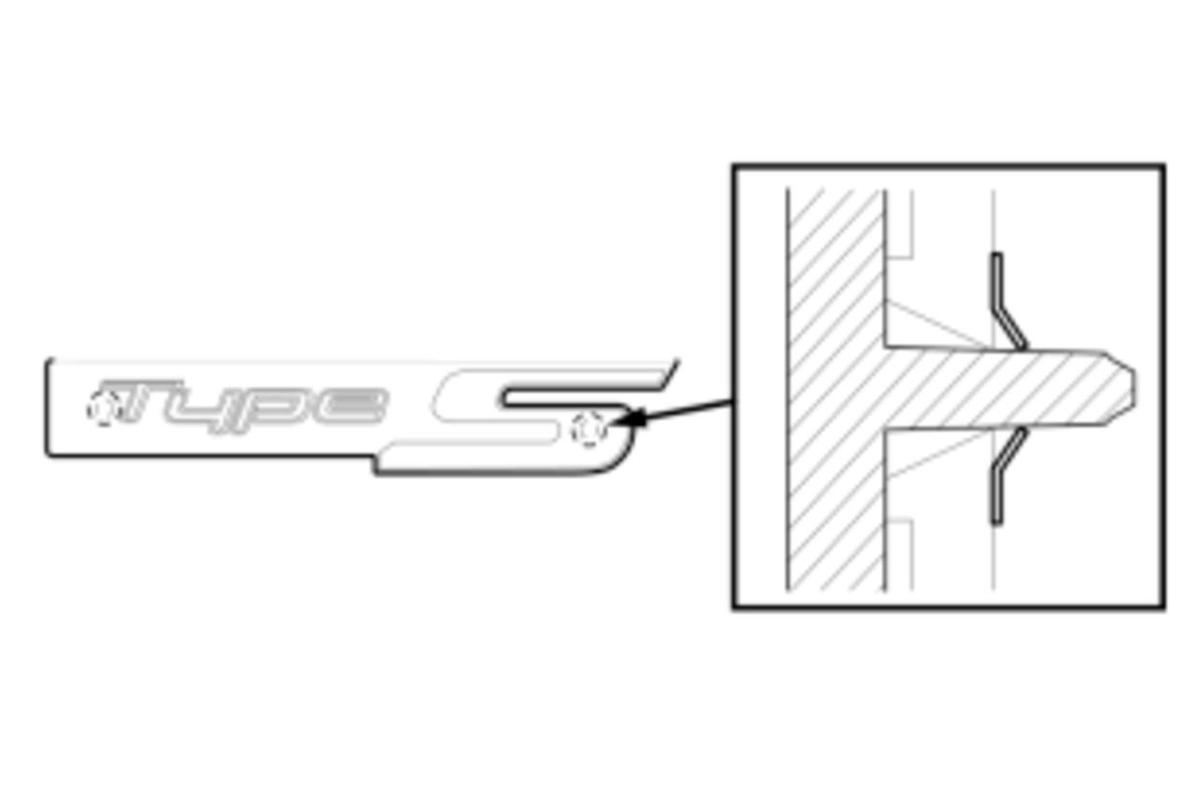

   • Refer to the figure 2.

   Courtesy of HONDA, U.S.A., INC.

3. C.-

   NOTE:  The front grille blocker can be removed without removing the front bumper.

   Sub-Procedure

   Removal

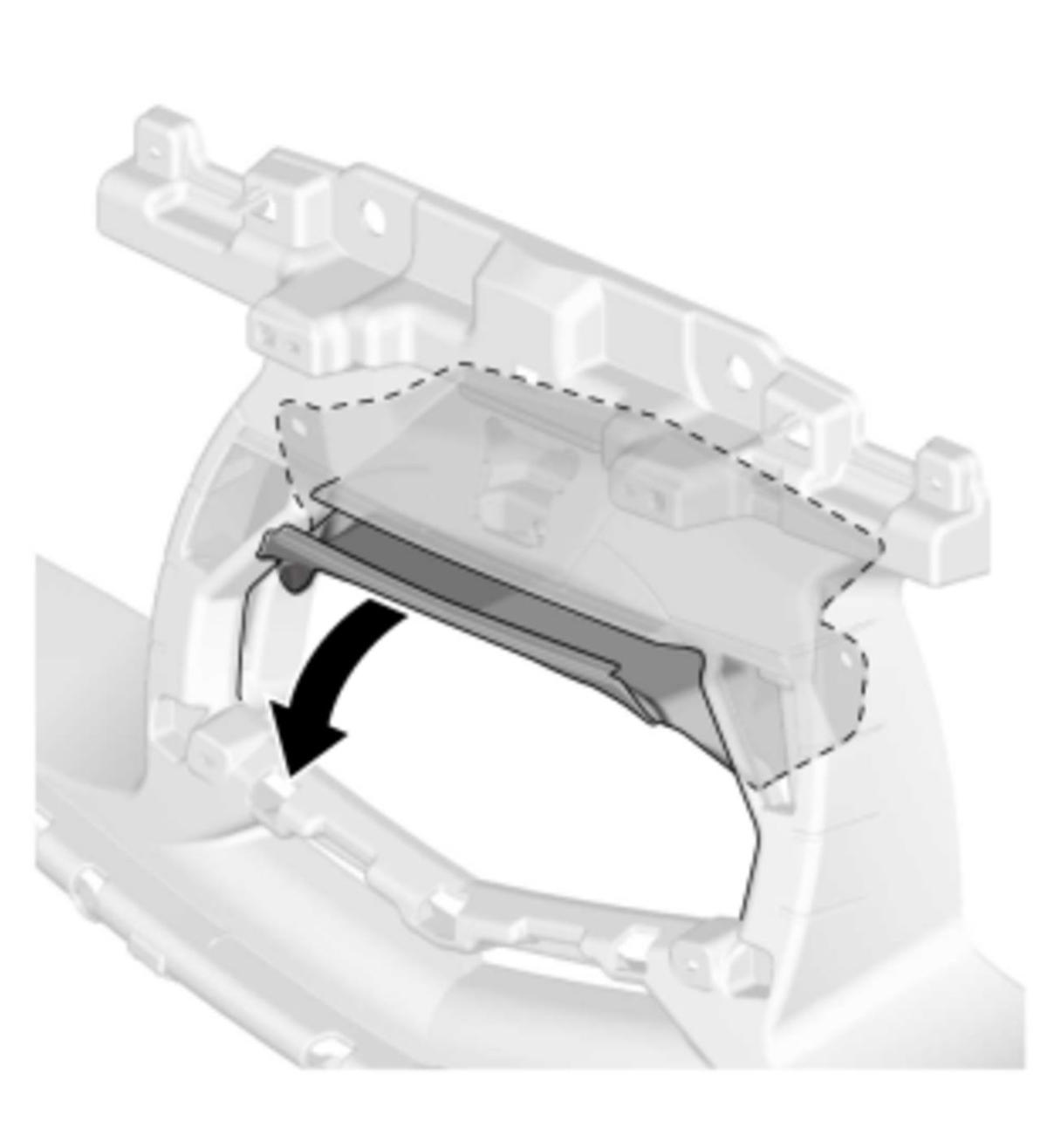

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

4. D.-

   After Installation

   • Multi View Front Camera Aiming - Refer to: Multi View Camera Aiming
5. E.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

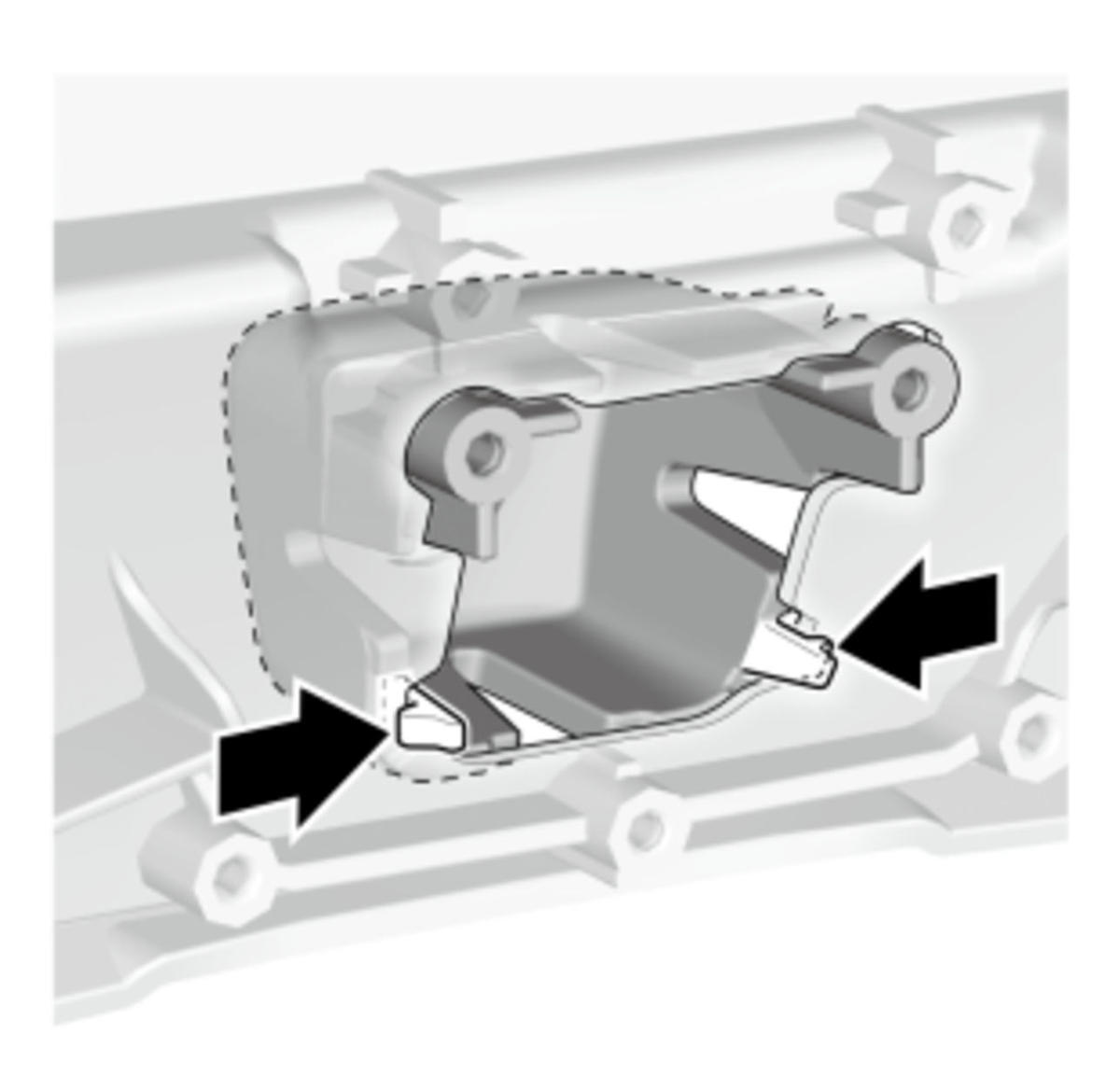

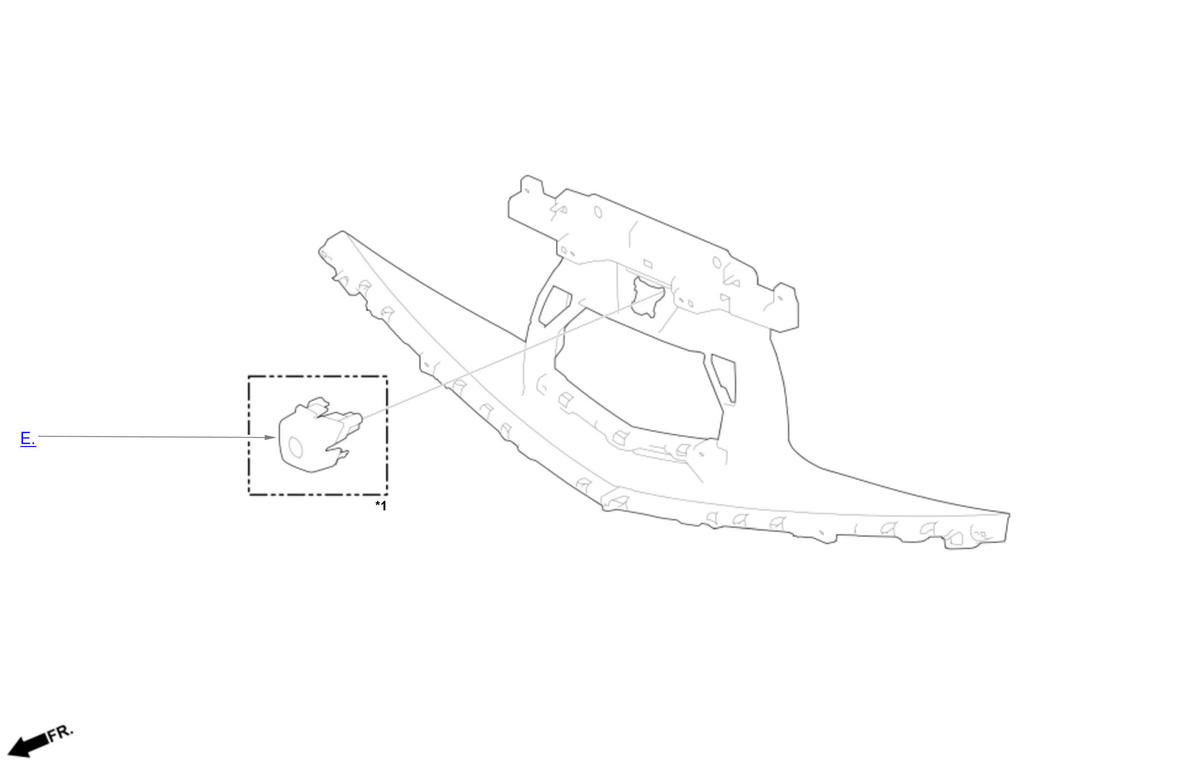

   • Refer to the figure.
6. F.-

   Sub-Procedure

   Removal

   1. Refer to the figure 1.

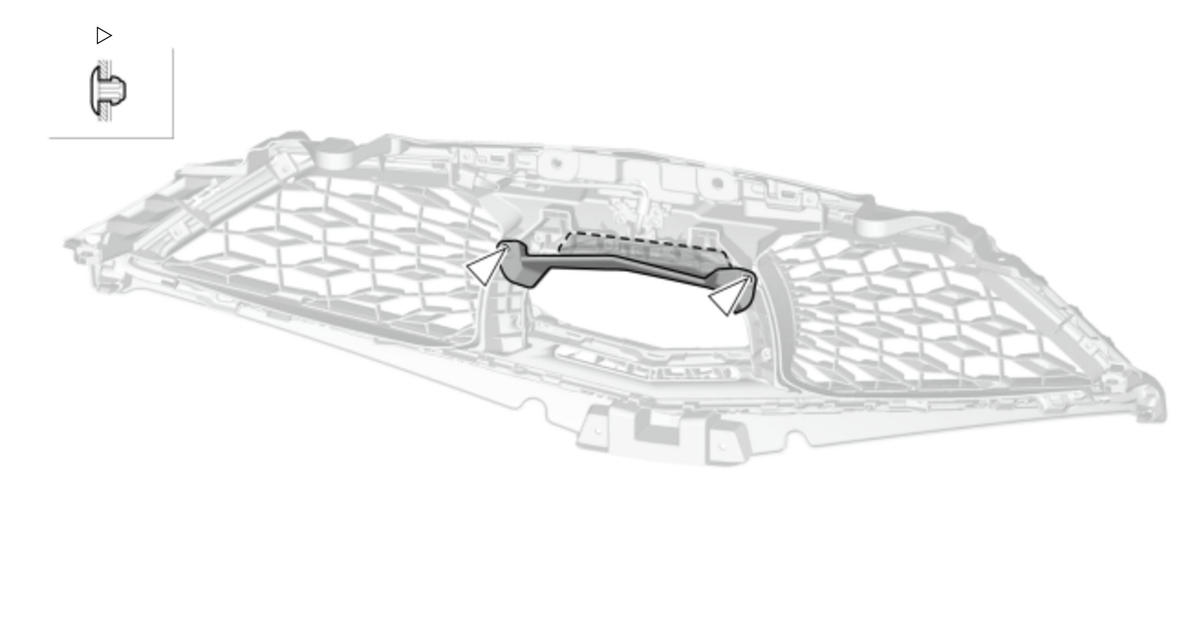

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

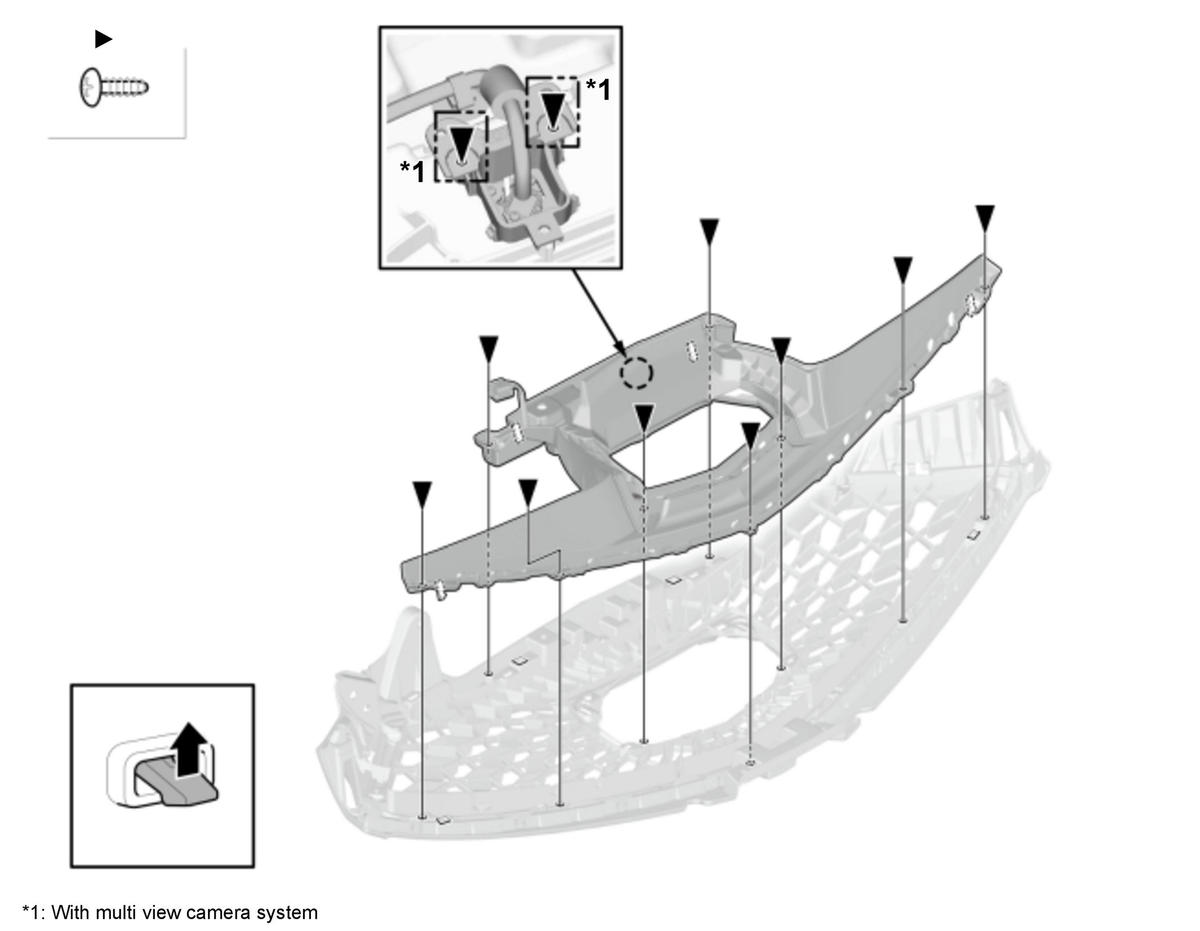

   Figure 2

   2. Refer to the figure 2.

   Courtesy of HONDA, U.S.A., INC.

   Figure 3

   3. Refer to the figure 3.

   Courtesy of HONDA, U.S.A., INC.
