Multi View Camera System (MVCS) Component Location Index

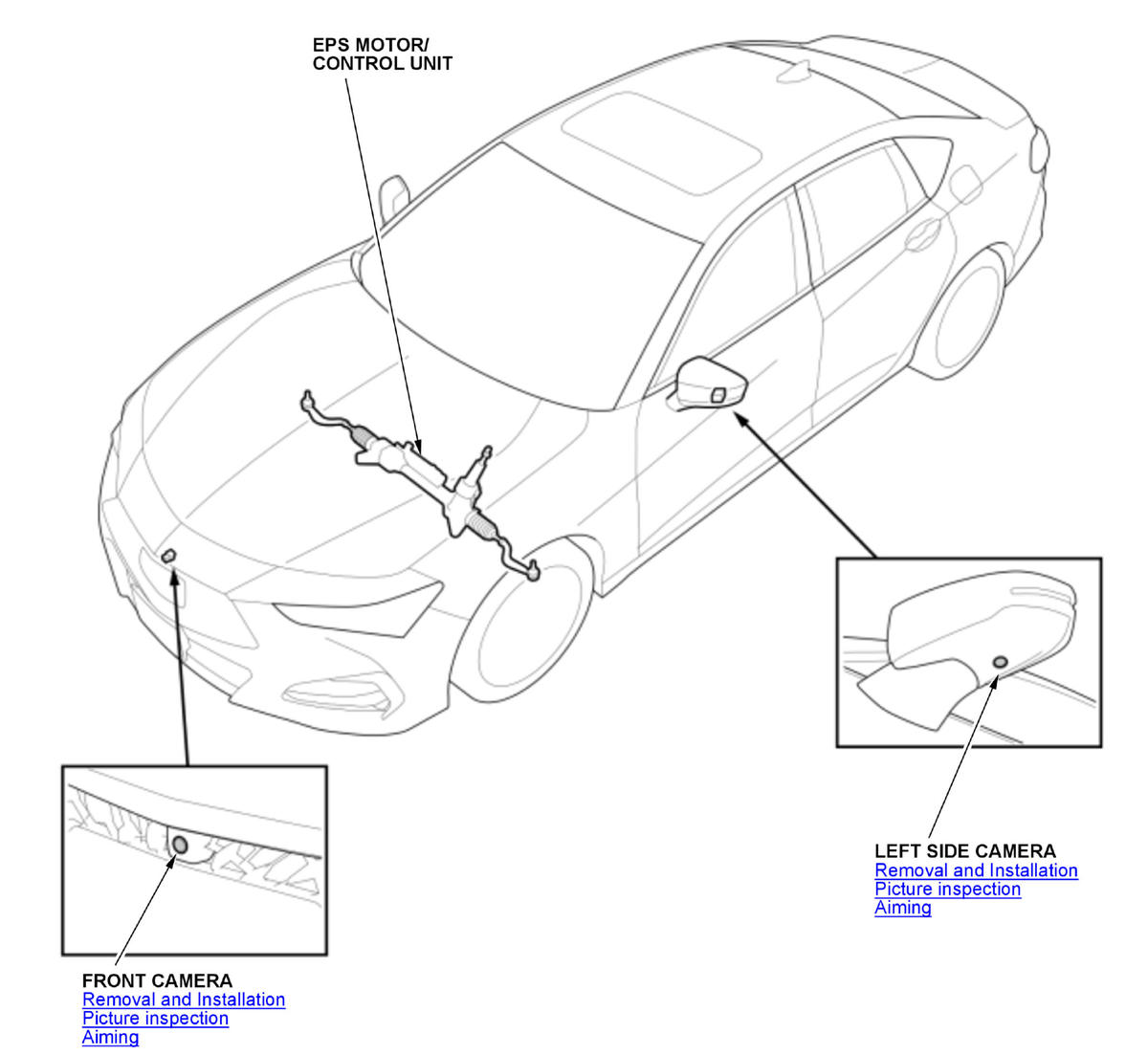

GHH487566Courtesy of HONDA, U.S.A., INC.

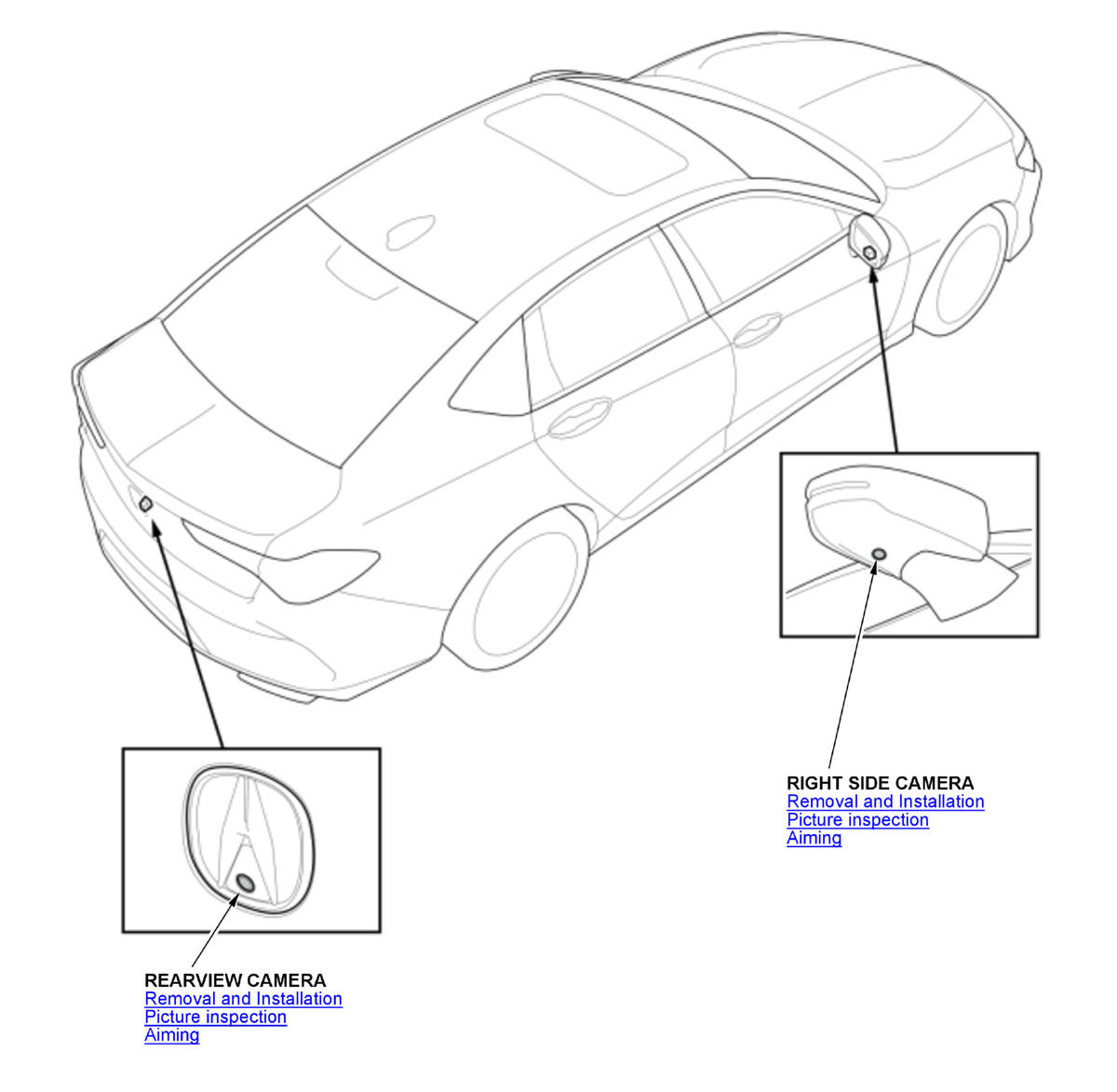

GHH487567Courtesy of HONDA, U.S.A., INC.

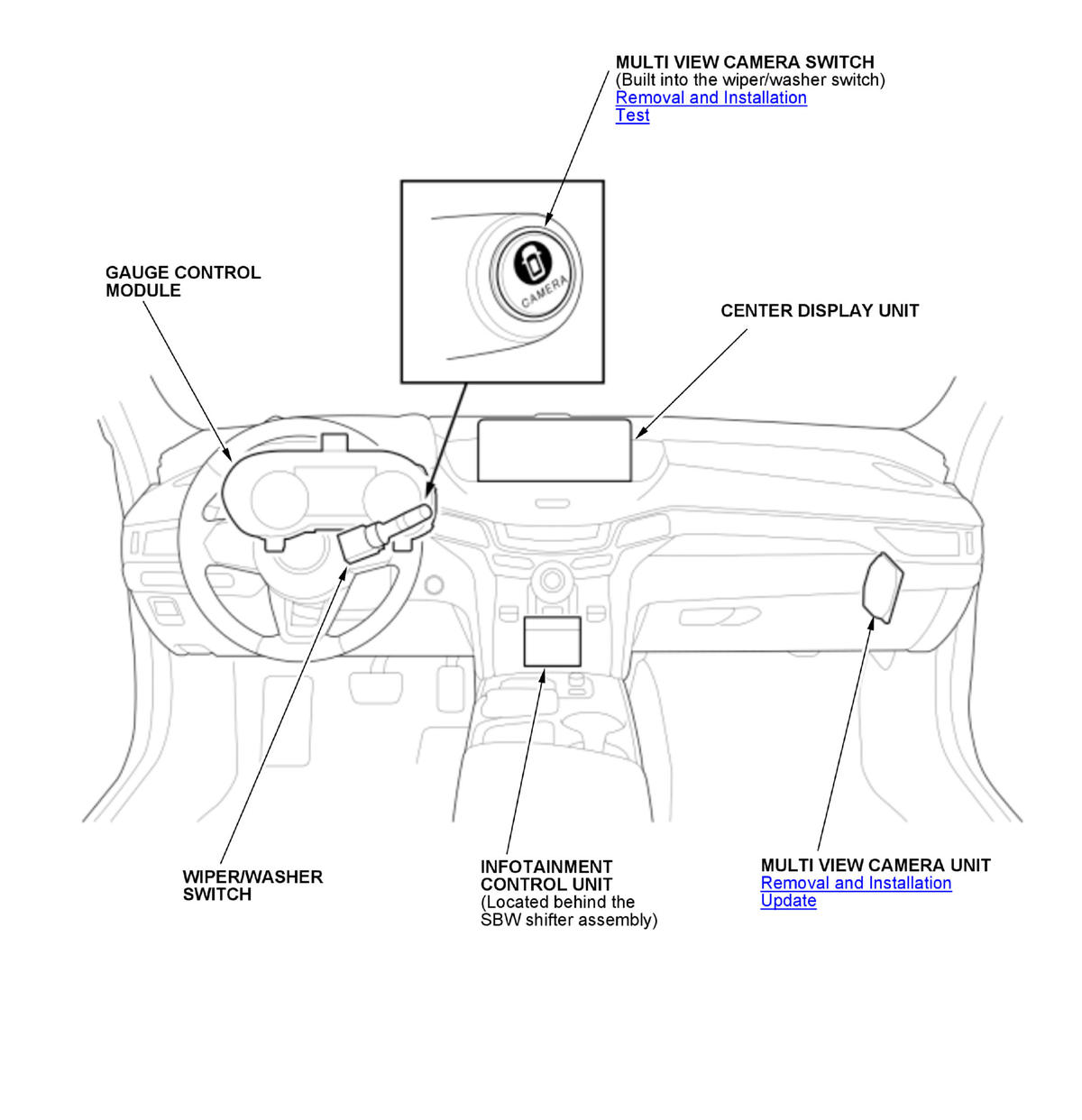

GHH487568Courtesy of HONDA, U.S.A., INC.
