Multi View Camera Unit Connector for Inputs and Outputs

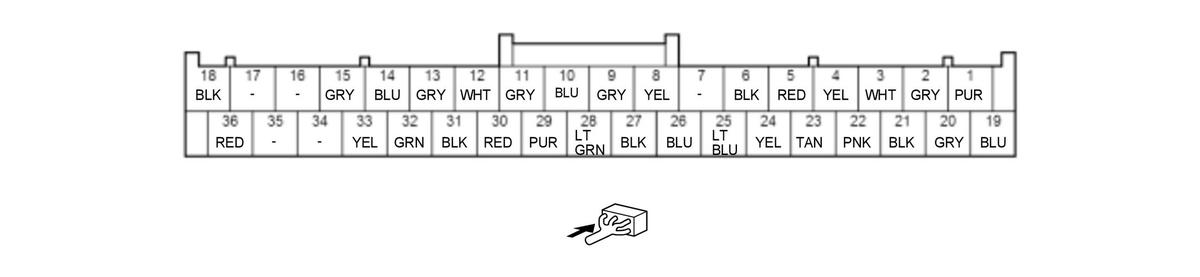

Multi View Camera Unit 36P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description
1	MVS_CHK	Connection check signal for center display unit
2	SH_MVS_VID	Shield for terminal No. 3 and 21
3	MVS_GND	Ground circuit for multi view camera
4	AF-CAN A_H	F-CAN communication (high) circuit
5	AF-CAN A_L	F-CAN communication (low) circuit
6	SGND	Ground circuit for the multi view camera unit
7	Not used	-
8	SL_CAM_GND	Ground circuit for the left side camera
9	SL_CAM_VID_GND	Shield for terminal No. 8, 26, and 27
10	SR_CAM_GND	Ground circuit for the right side camera
11	SR_CAM_VID_GND	Shield for terminal No. 10, 28, and 29
12	R_CAM_GND	Ground circuit for the rear view camera
13	R_CAM_VID_GND	Shield for terminal No. 12, 30, and 31
14	F_CAM_GND	Ground circuit for the front camera
15	F_CAM_VID_GND	Shield for terminal No. 14, 32, and 33
16	Not used	-
17	Not used	-
18	SGND	Ground circuit for the multi view camera unit
19	+B_BACKUP(VST)	Power supply for backup memory
20	IG1_METER(VST)	Power supply for the multi view camera unit
21	MVS_VID	Video signal for the multi view camera
22	BB-CAN_H	B-CAN communication (high) circuit
23	BB-CAN_L	B-CAN communication (low) circuit
24* 1	RETRA_MVC_SW	Detects power mirror switch signal
25	MVS_SW	Detects multi view camera switch signal
26	SL_CAM_VCC	Power source for left side camera
27	SL_CAM_VID	Video signal for left side camera
28	SR_CAM_VCC	Power source for right side camera
29	SR_CAM_VID	Video signal for right side camera
30	R_CAM_VCC	Power source for rear view camera
31	R_CAM_VID	Video signal for rear view camera signal
32	F_CAM_VCC	Power source for front camera
33	F_CAM_VID	Video signal for front camera
34	Not used	-
35	Not used	-
36	MVS_VID_SW	Multi view camera visual switching signal

*1: With power retract mirror
