Multi View Camera Picture Inspection: Inspection
NOTE:
- Before doing the multi view camera picture inspection, a person or an object equivalent to the driver must be placed in the driver's seat.
- A multi view camera aiming and picture inspection must be done whenever these items were removed / replaced or adjusted:
-
- Power mirror
- Front door
- Trunk lid
- Front bumper or front grille
- Camera (all)
You must perform the camera aiming first, before performing the picture inspection.
Before Inspection:
- Make sure the vehicle does not have an aftermarket suspension.
- Remove all cargo from the vehicle except the tool kit and the spare tire.
- Make sure all the tires are the correct size and set their pressures to the specifications shown on the doorjamb label.
- Clean the lens surface of each camera.
- All wheels of the vehicle should touch the ground.
- Make sure the steering wheel is pointed straight ahead and do not turn it after parking the vehicle.
- Shift the transmission to P position/mode, apply the parking brake.
- Make sure the front grille, the front bumper and the power mirrors are installed correctly.
NOTE:
When marking on the floor surface, use suitable tape to mark the exact locations.
- Multi View Camera Picture - Inspect
Preconditions
- Transmission P Position/Mode
- Parking Brake Applied
Procedure
- The multi view camera picture inspection can be performed using the mask sheet.NOTE: Although some amount of deviation in the picture might be present due to the number of passengers and the vehicle's loaded state, it is not a malfunction with the system.

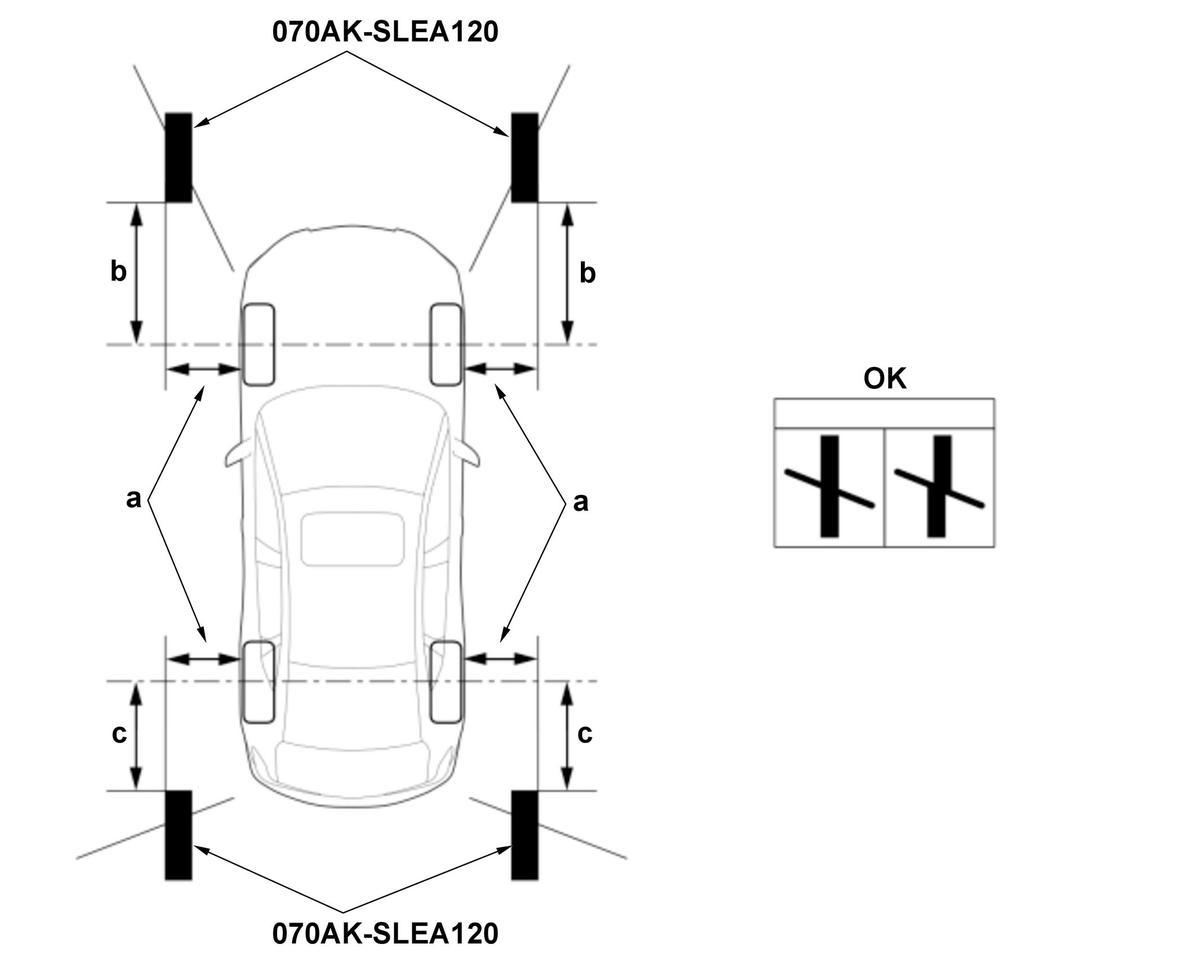

Place the mask sheets as shown:
-
- Front camera: Placed on the left-front and right-front.
- Rearview camera: Placed on the left-rear and right-rear.
- Left side camera: Placed on the left-front and left-rear.
- Right side camera: Placed on the right-front and right-rear.
Specifications
Value a 350 mm (13.78 in) b 1, 200 mm (47.24 in) c 700 mm (27.56 in) Specifications
Detail Deviation within half of each other (as shown on the center display) Result
- If it is abnormal, aim the multi view camera - Refer to: Multi View Camera Aiming or Multi View Camera Picture Inspection .
